A-4 Appendix A –PFD
Setting Altitude
bug from the Bug
Select tab
Press Set Altitude LSK.
Rotate the right-hand knob
As you rotate the knob, new
target altitude value displays
above the altimeter.
Outer ring = 500ft
increments
Inner knob = 100ft
increments.
Metric:
Outer ring = 100 meter
increments
Inner knob = 50 meter
increments.
AIRSPEED INDICATOR
The airspeed indicator provides Indicated Airspeed (IAS) as well
as the True Airspeed (TAS).

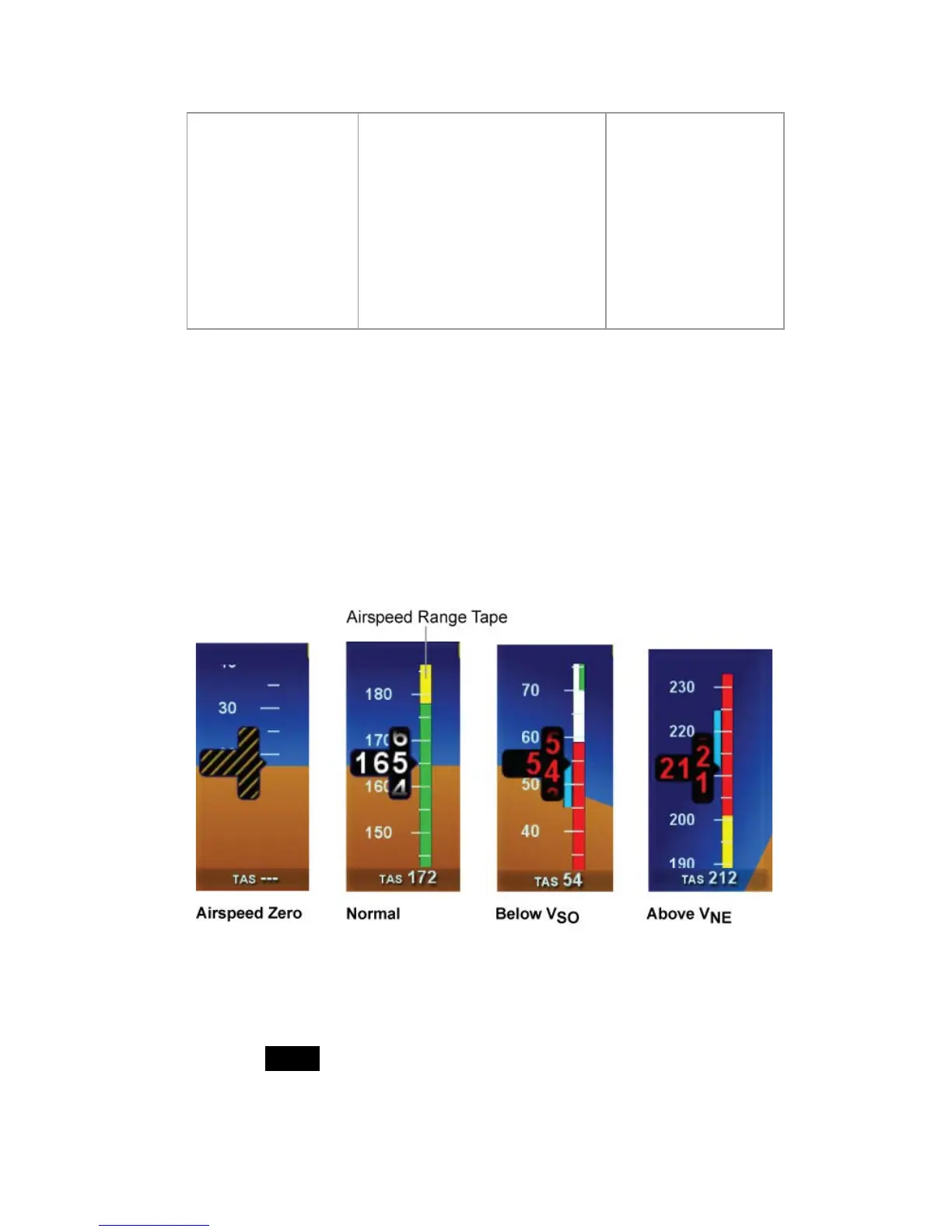

AIRSPEED RANGE TAPE
The Airspeed Range Tape indicates the aircraft airspeed ranges
as defined for your aircraft.
Airspeed Color Bands
The color bands represent the airspeed ranges for your aircraft:
• Green – Normal range V
S1
to V
no
• Yellow – Caution range V
no
to
V
re
• White – Flap range V
S0
to
V
fe
