PFD Synthetic Vision Scene
The TVV is a visual representation of the aircraft flight path – it
indicates where the airplane is going, and not necessarily where
the aircraft is pointing. Terrain Awareness (SV-TA) and Forward
Looking Terrain Alerting (FLTA) alerts are provided via terrain
coloration, Caution-Warning Alerting System (CAS) alerts, and
aural alerts. SynVis also allows for a pilot-selectable horizontal
field of view ranging from 20 degrees to 120 degrees with a 45
degree default.

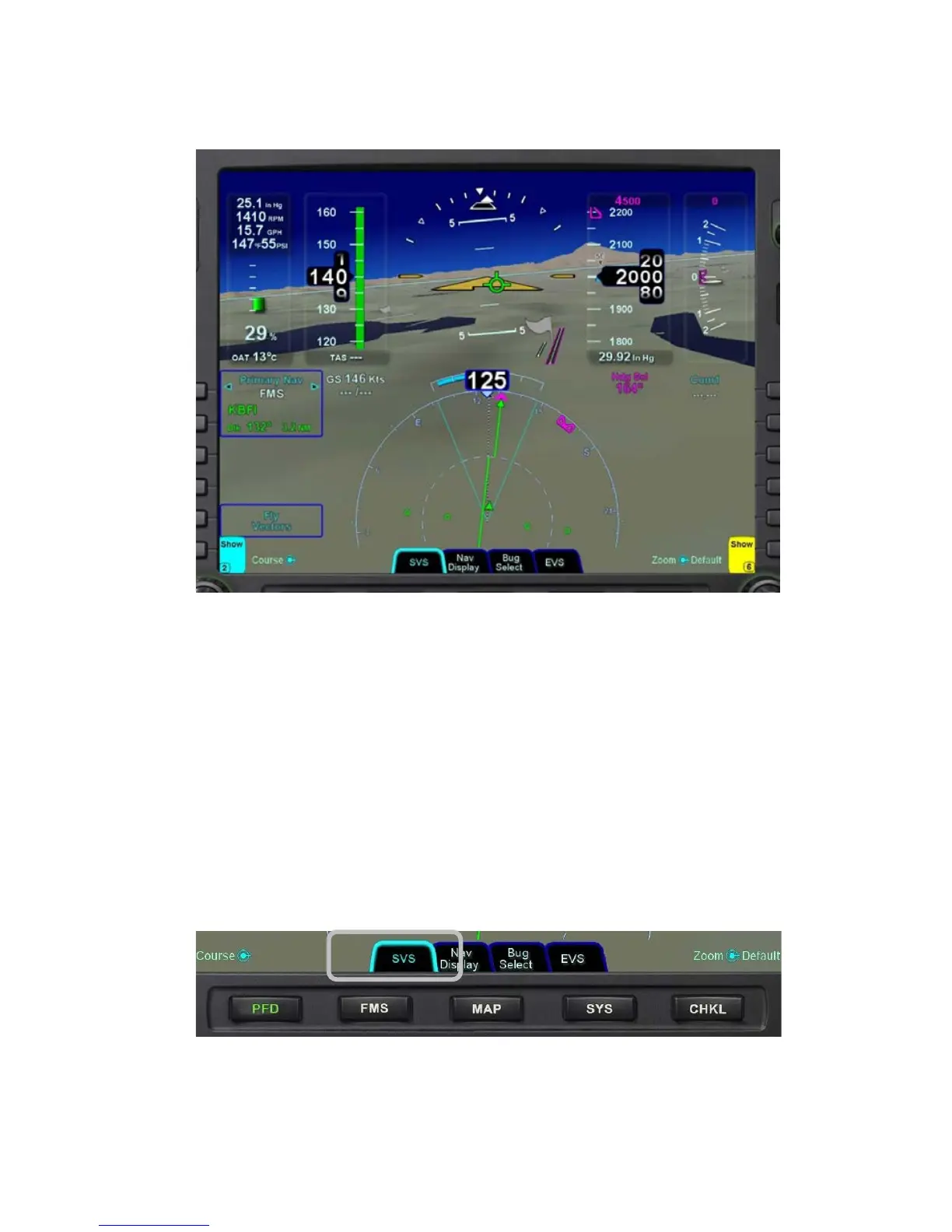

SynVis can be controlled by the pilot via two means. From the
PFD Page Function Key, there is a dedicated “SVS” tab which will
provide a full-page format version of SynVis.
SynVis Tab
The “Nav Display” tab on the PFD Page Function Key has a “Syn
Vis” LSK from which SynVis can be toggled on/off and that
