Accessories are not included in the scope of delivery and
must be ordered separately.
7.1 Magnet

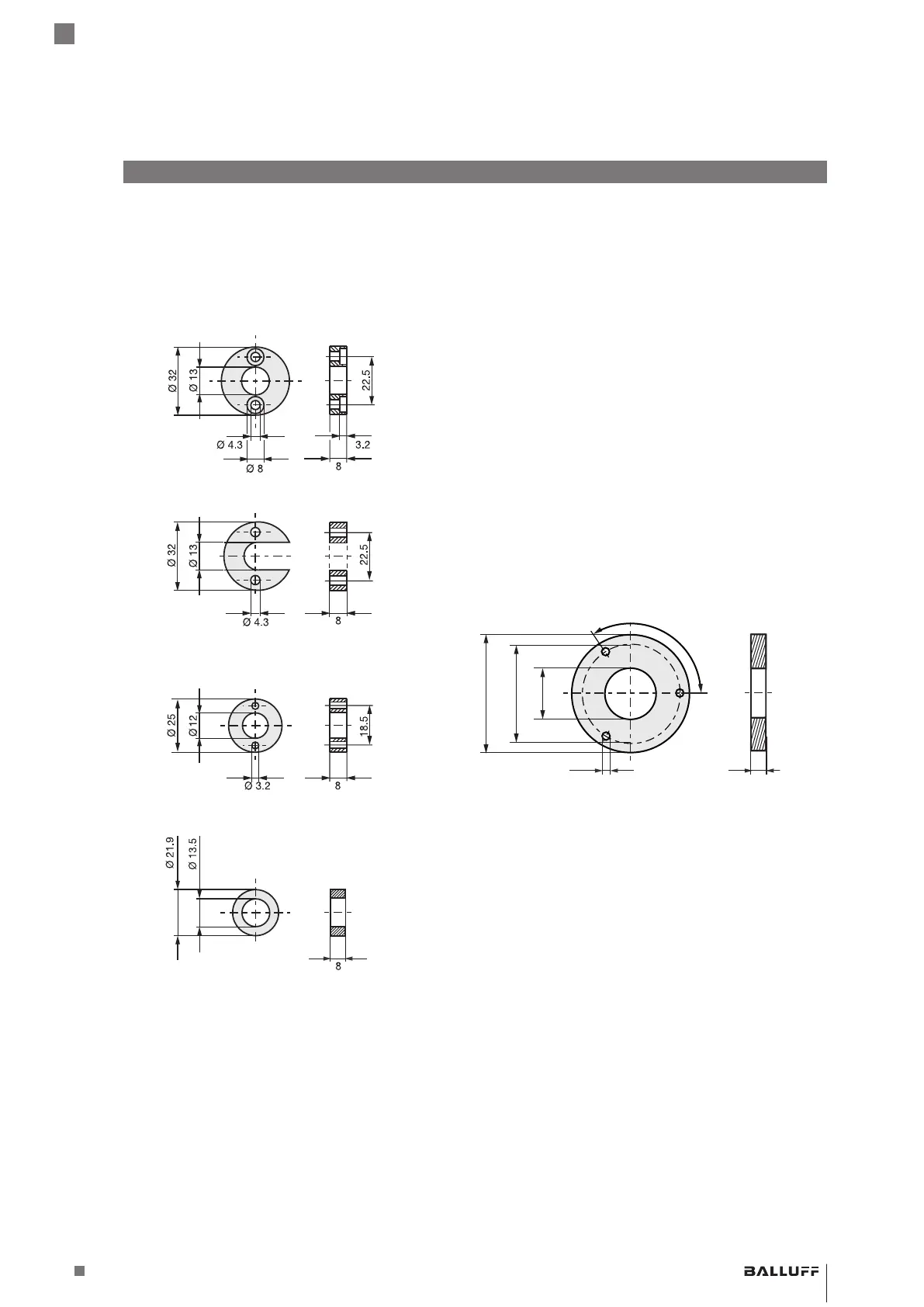

Fig. 7-1:
BTL-P-1013-4R
BTL-P-1013-4S
BTL-P-1012-4R
BTL-P-1014-2R
BTL-P-0814-GR-PAF
Magnet installation dimensions
BTL-P-1013-4R, BTL-P-1013-4S, BTL-P-1012-4R,
BTL-P-1014-2R:
Weight: < 15g
Housing: Aluminum
Ambient temperature:
– 40 °C…+ 85 °C
Included in the scope of delivery for the BTL-P-
1013-4R, BTL-P-1013-4S, BTL-P-1012-4R:
Spacer: 8mm, material: polyoxymethylene
(POM)
BTL5-P-4500-1 magnet (solenoid):
Weight: Approx.90g
Housing: Plastic
Ambient temperature:
- 40 °C…+ 60 °C
BTL-P-1028-15R (special accessories for
applications with a supporting rod):
Weight: Approx.68g
Housing: Aluminum
Fig. 7-2:
Ø 4.3
120°
Ø 28 Ø 54
Ø 65
8
BTL-P-1028-15R special accessories
7
Accessories
BTL5-P/I/L/M1-M ____ -H/W(8) -S32/KA __ /K __
Magnetostrictive Linear Position Sensor – Rod Style

Balluff BTL5 Series Specifications

General

Series	BTL5
Product Category	Accessories
Length	Varies with model
Width	Varies with model
Thickness	Varies with model
Type	Magnet
