Balluff BTL5 Series User Manual

16 english

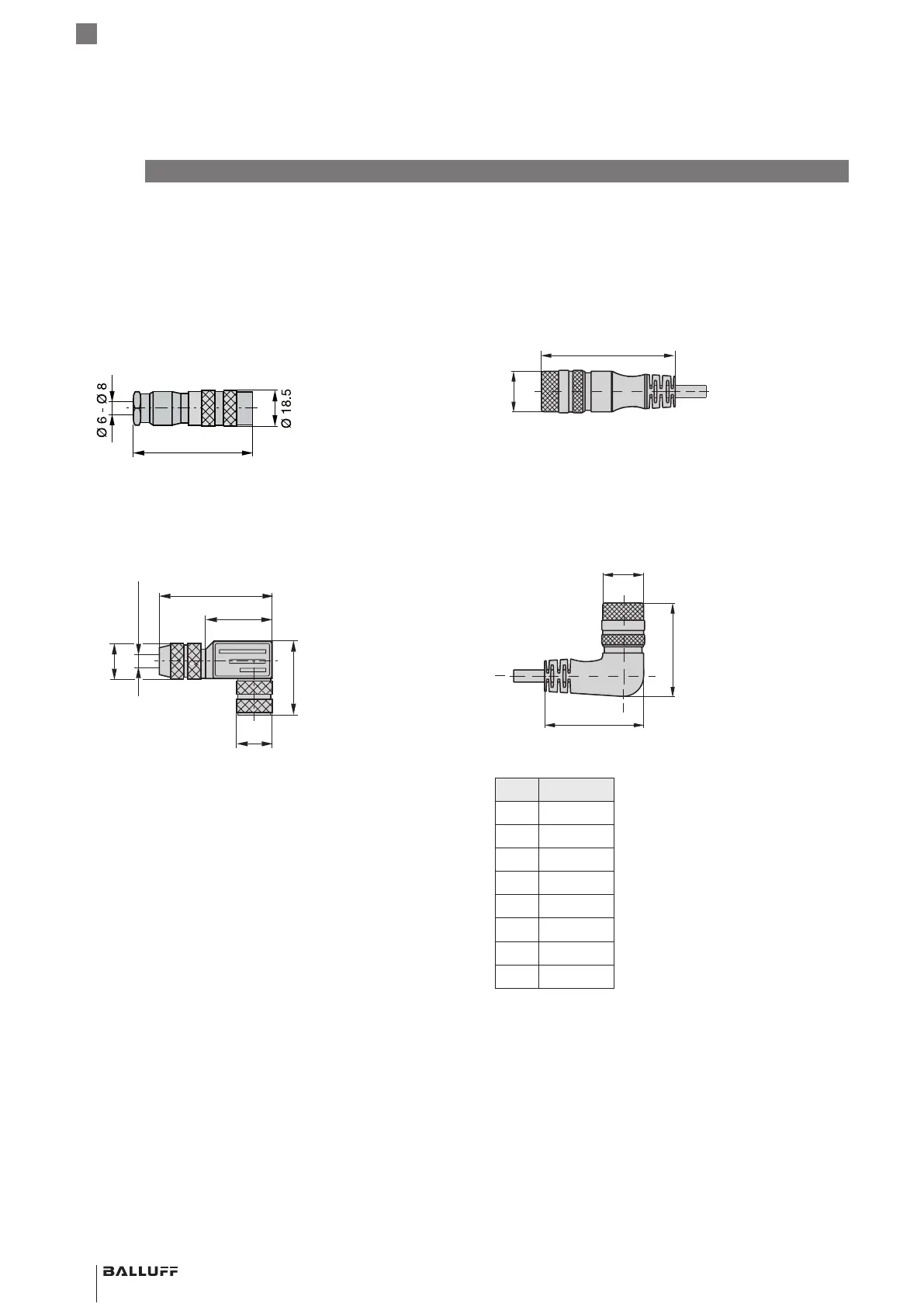

7.2 Connectors and cables
7.2.1 BKS-S32/S33M-00. freely configurable
BKS-S32M-00
Straight connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 7-3:
~ 62
Connector BKS-S32M-00
BKS-S33M-00
Angled connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 7-4:
Ø 18
31
37.2
Ø 20
Ø 6 - Ø 8
~ 54
Connector BKS-S33M-00
7.2.2 BKS-S232/S233-PU-_ _, preassembled
BKS-S232-PU-_ _
Straight connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S232-PU-05: Cable length 5m
Fig. 7-5:
Ø 20
66
Connector type BKS-S232-PU-_ _
BKS-S233-PU-_ _
Angled connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered,
e.g.BKS-S233-PU-05: Cable length 5m
Fig. 7-6:
Ø 20
46
48.5
Connector type BKS-S233-PU-_ _
Pin Color
1 YE yellow
2 GY gray
3 PK pink
4 RD red
5 GN green
6 BU blue
7 BN brown
8 WH white
Tab. 7-1: BKS-S232/S233-PU-_ _ pin assignment
7
Accessories (continued)
BTL5-P/I/L/M1-M ____ -H/W(8) -S32/KA __ /K __
Magnetostrictive Linear Position Sensor – Rod Style
