Configuration Using Barcodes

Balluff BVS HS-P Family

Industrial Handheld Barcode Readers

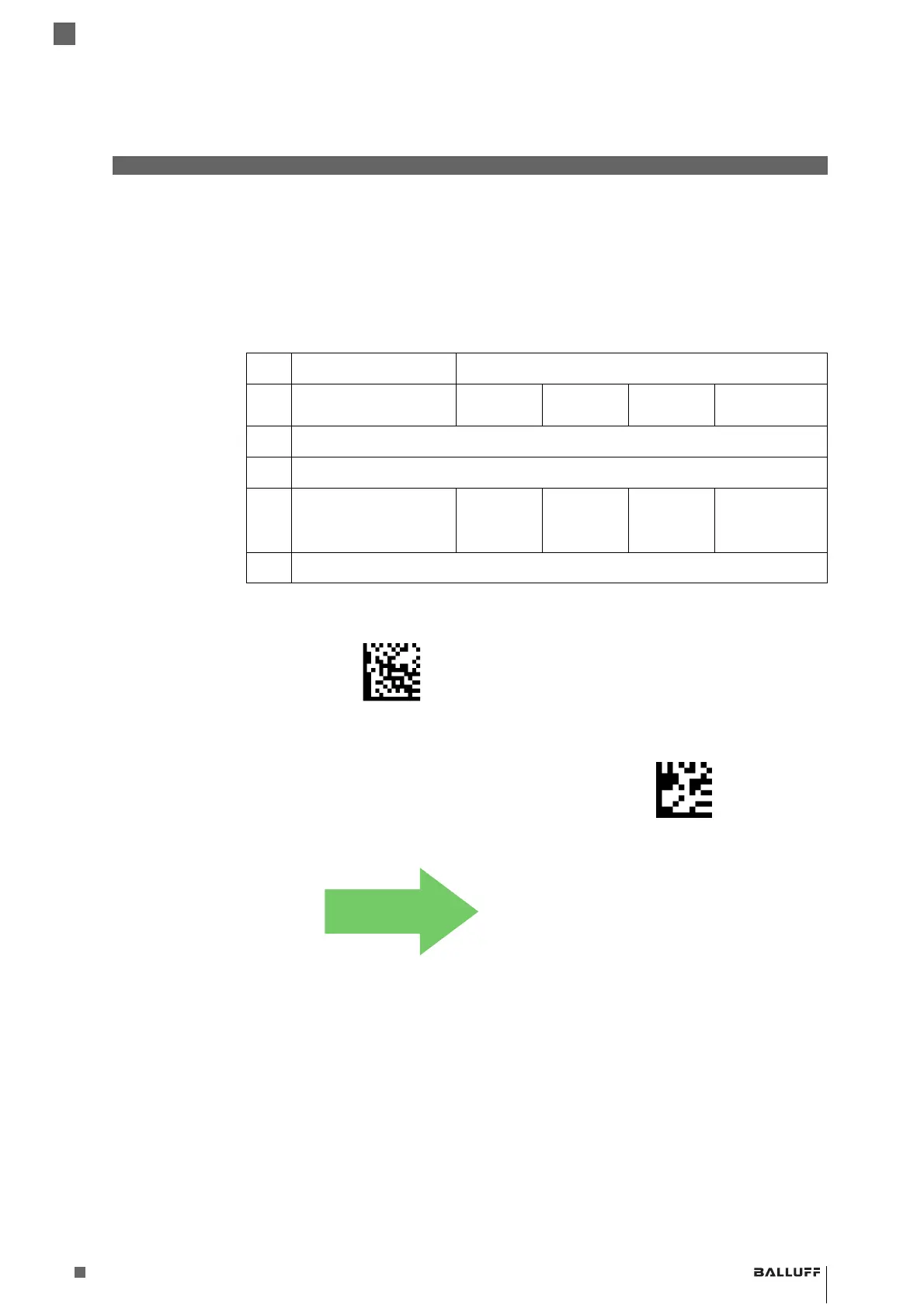

Plessey Set

Length 1

This feature specifies one of the barcode lengths for Plessey Length Control. Length 1 is the min-

imum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

Length includes the barcode’s data characters only. The length can be set from 01 to 50 charac-

ters.

Table Plessey Length 1 Setting Examples provides some examples for setting Length 1. See

page 249 for detailed instructions on setting this feature.

Plessey

Length 1 Setting

Examples

STEP ACTION EXAMPLES

1 Desired Setting

Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT Plessey LENGTH 1 SETTING

Scan Two Characters

From Appendix D:

Keypad

‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’

5 Scan ENTER/EXIT PROGRAMMING MODE

Select Plessey Set Length 1 Setting

Make a mistake? Scan the CANCEL barcode

to abort and not save the entry string. You

can then start again at the beginning.

CANCEL

$CPLL1

DEFAULT

01 = Length 1 is 1 Character
