Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
Plessey Set
Length 2
This feature specifies one of the barcode lengths for Plessey Length Control. Length 2 is the max-
imum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Length includes the barcode’s check, data, and full-ASCII shift characters. The length does not
include start/stop characters.
The length can be set from 1 to 50 characters. A setting of 0 specifies to ignore this length (only
one fixed length).
Table Plessey Length 2 Setting Examples provides examples for setting Length 2. See page 250
for detailed instructions on setting this feature.
Plessey
Length
2 Setting
Examples

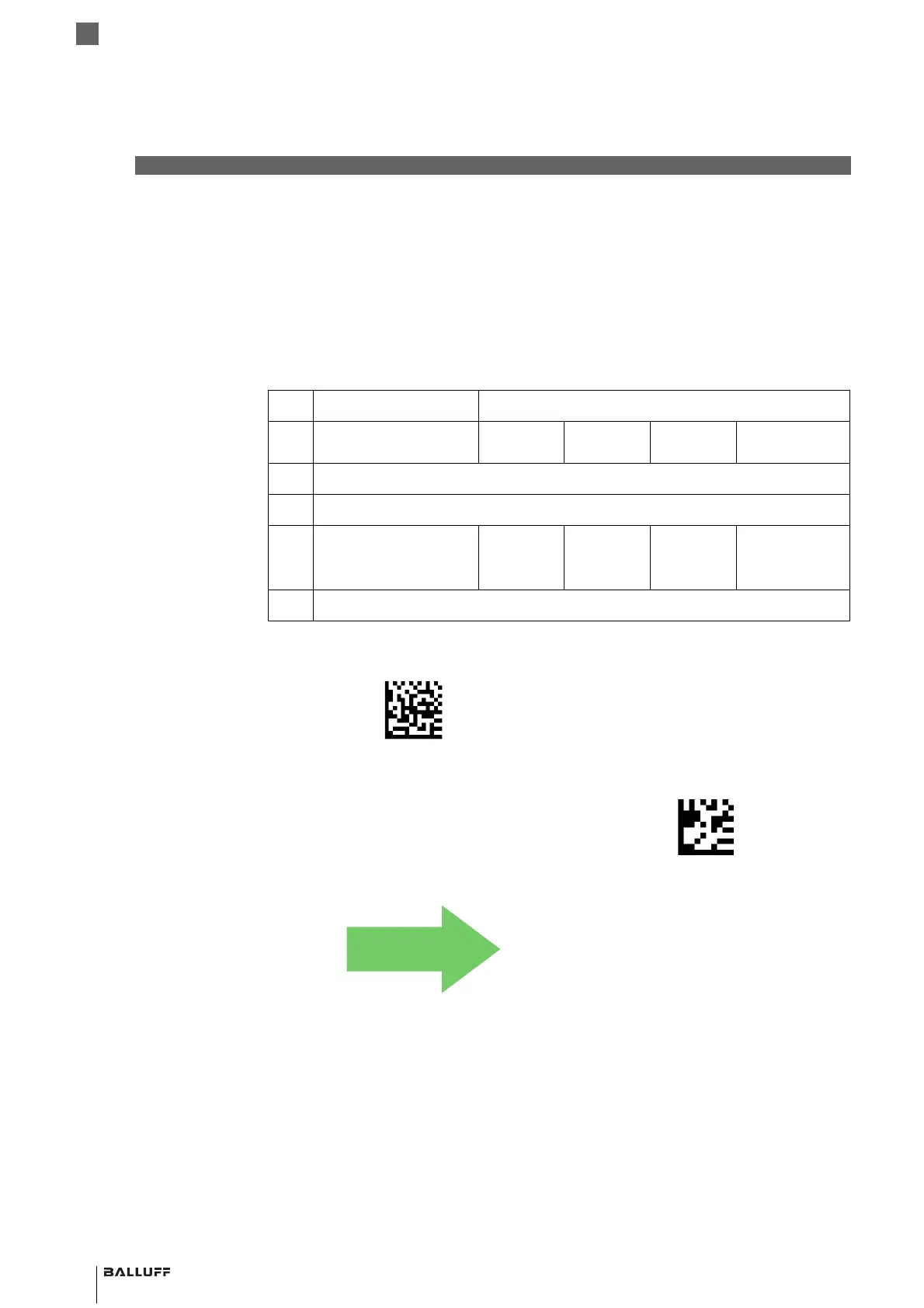

STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore
This Length)
07
Characters
15
Characters
50
Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT PLESSEY LENGTH 2 SETTING
4
Scan Two Characters
From
Appendix D:
Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Plessey Length 2 Setting
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CPLL2
~
DEFAULT
50 = Length 2 is 50 Characters
