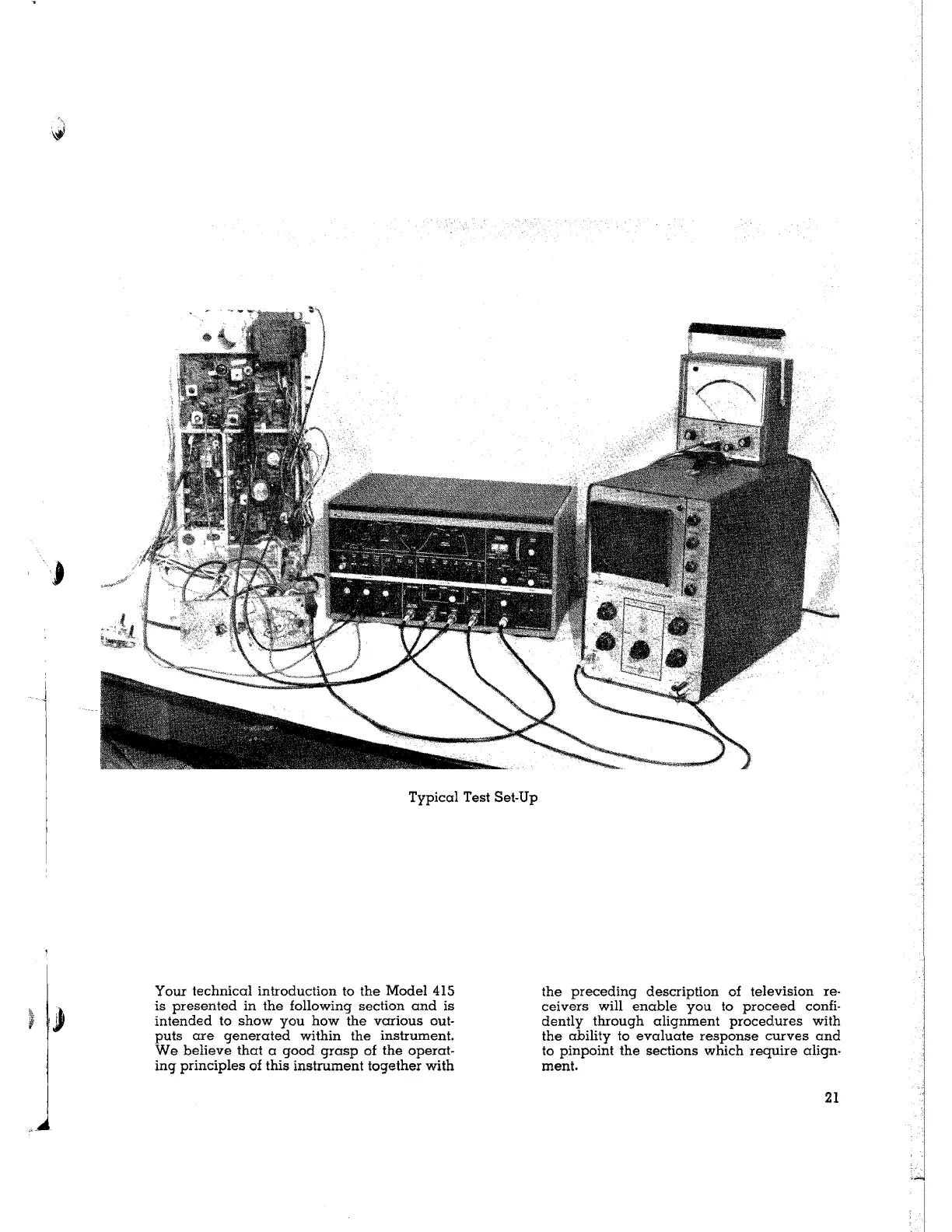

Typical Test Set-Up
Your technical introduction to the Model 415
is presented in the following section and is
intended to show you how the various out-
puts are generated within the instrument.
We believe that a good grasp of the operat-
ing principles of this instrument together with
the preceding description of television re-
ceivers will enable you to proceed confi-
dently through alignment procedures with
the ability to evaluate response curves and
to pinpoint the sections which require align-
ment.
