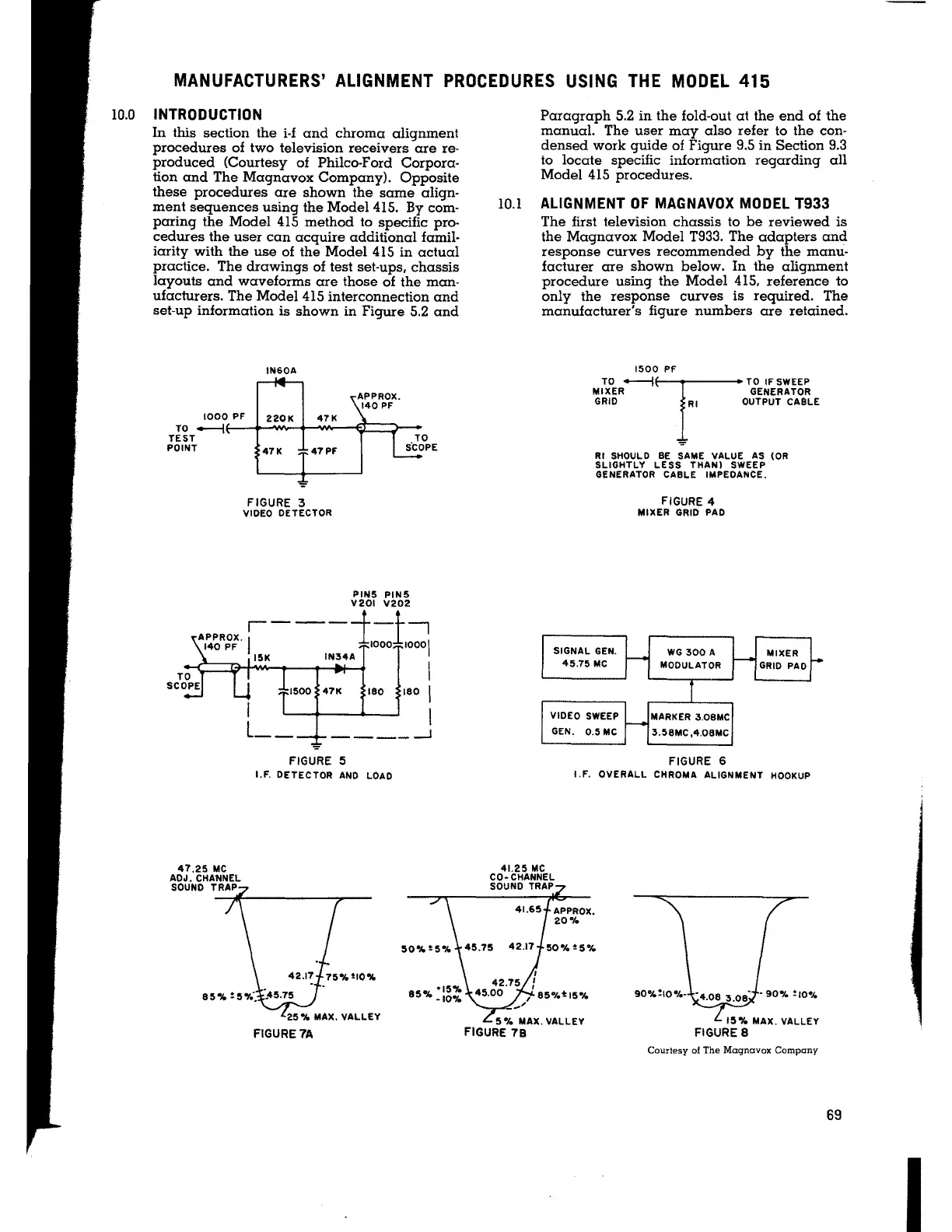

MANUFACTURERS' ALIGNMENT PROCEDURES USING THE MODEL 415
10.0 INTRODUCTION
In this section the i-f and chroma alignment
procedures of two television receivers are re-
produced (Courtesy of Philco-Ford Corpora-
tion and The Magnavox Company). Opposite
these procedures are shown the same align-
ment sequences using the Model 415. By com-
paring the Model 415 method to specific pro-
cedures the user can acquire additional famil-
iarity with the use of the Model 415 in actual
practice. The drawings of test set-ups, chassis
layouts and waveforms are those of the man-
ufacturers. The Model 415 interconnection and
set-up information
is shown in Figure 5.2 and
INSOA
FIGURE 3
VIDEO DETECTOR
PINS PINS
V201 V202
,---i-..t-,
APPROX. I 1
140 PF 1000 10001
15K IN34A
47.25
MC
ADJ.CHANNEL
SOUND
TRAP
I
180 180 I
I
1500 47K
I
L __
____ _j
FIGURE 5
I.F. DETECTOR AND LOAD
FIGURE7A
Paragraph 5.2 in the fold-out at the end of the
manual. The user may also refer to the con-
densed work guide of Figure 9.5 in Section 9.3
to locate specific information regarding all
Model 415 procedures.
10.l ALIGNMENT OF MAGNAVOX MODEL T933
The first television chassis to be reviewed is
the Magnavox Model T933. The adapters and
response curves recommended by the manu-
facturer are shown below. In the alignment
procedure using the Model 415. reference to
only the response curves is required. The
manufacturer's figure numbers are retained.
1500 PF
TD
----Ir TO IF SWEEP
MIXER GENERATOR
GRID
RI OUTPUT CABLE
.,,.
RI SHOULD BE SAME VALUE AS (OR
SLIGHTLY LESS THAN) SWEEP
GENERATOR CABLE IMPEDANCE.
SIGNAL GEN.
45.75 MC
VIDEO
SWEEP
GEN. 0.5MC
FIGURE 4
MIXER GRID PAD
WG
300 A
MODULATOR
MARKER
3.0BMC
3.58MC
,4.08MC
FIGURE 6
MIXER
GRID PAD
I.F. OVERALL CHROMA ALIGNMENT HOOKUP
15% MAX. VALLEY
FIGURE 8
Courtesy of The Magnavox Company
69
