Barco ImagePRO - Page 57

R5906167 /00 ImagePRO–4K Video Processor
57

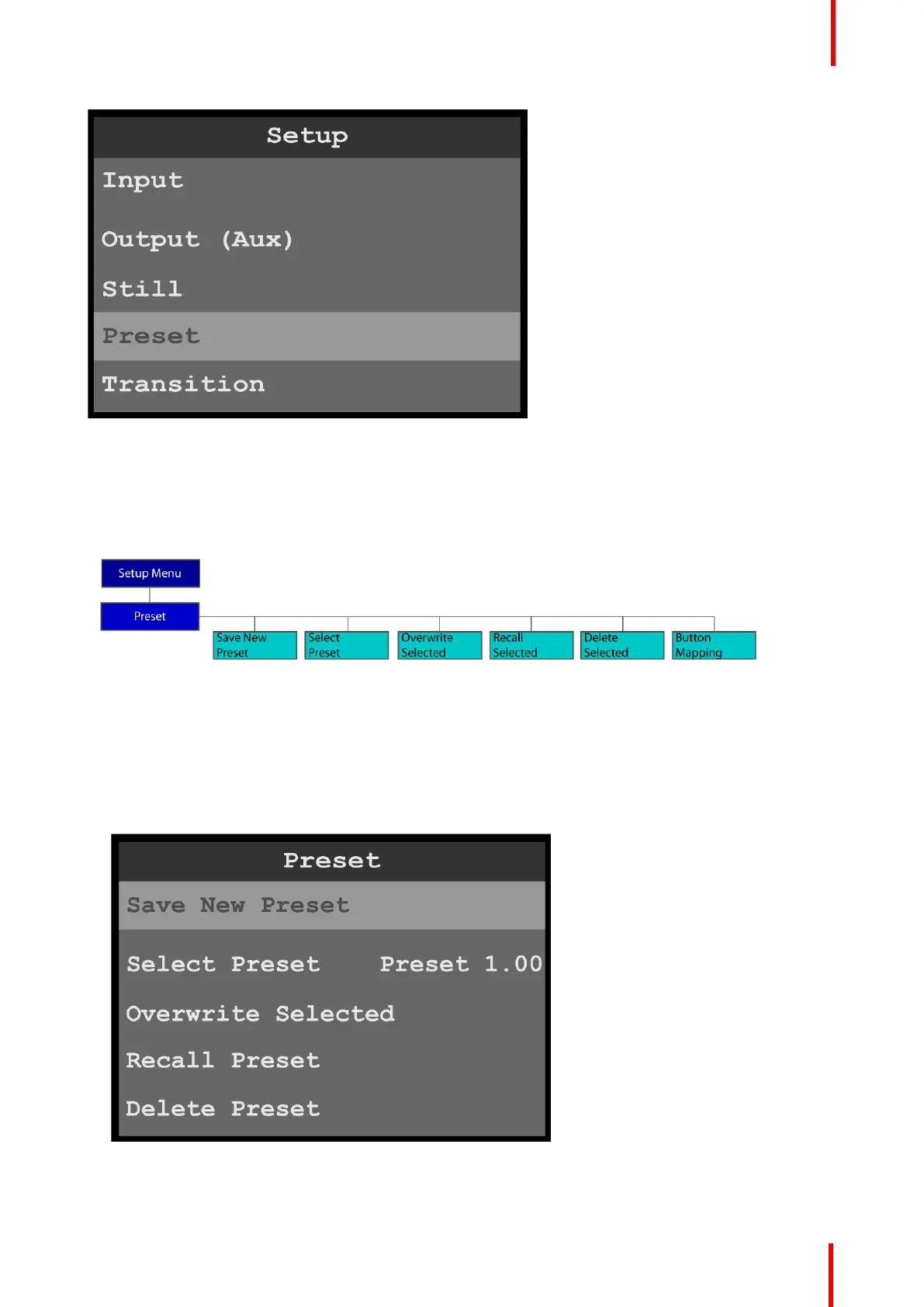

Image 6-38: Setup menu: Preset
Use the Preset menu to create, select, recall, and delete presets.
Preset menu tree
Refer to Image 6-39 for an illustration of the Preset menu tree.
Image 6-39: Preset menu tree
Save New Preset
1. Select Save New Preset on the Preset menu.
Once Input is selected, the highlight bar turns from gray to cyan. Turning the adjust knob scrolls through
the available inputs.
2. Scroll to and select the input to be configured.
Image 6-40: Preset: Save New Preset
Menu orientation
