Physical Interface AW00123409000
96 Basler ace USB 3.0
For more information about
the pylon API and the pylon Viewer, see Section 3.1 on page 61.
the frame burst trigger wait signals and frame trigger wait signals, see Section 6.8.4 on
page 166.
the exposure active signal, see Section 6.8.1 on page 161.
the flash window signal, see Section 6.6.2.3 on page 151 and Section 6.8.2 on page 163.
working with the timer output signal, see Section 5.12.6 on page 101
setting the status of a user settable output line, see Section 5.12.3 on page 98.
the electrical characteristics of the opto-isolated output line, see Section 5.8 on page 74.
5.12.2 Line Minimum Output Pulse Width
It can occur that an output signal sent by the camera will not be detected by some receivers. This
can happen when the output signal is too narrow or if it reaches its new signal level too slowly.
To ensure reliable detection, the Line Minimum Output Pulse Width feature allows you to increase
the signal width ("pulse width") to a minimum width:
If the signal width of the original output signal is narrower than the set minimum the Line
Minimum Output Pulse Width feature will increase the signal width to the set minimum before
the signal is sent out of the camera (see the figure below).
If the signal width of the original output signal is equal to or wider than the set minimum the
Line Minimum Output Pulse Width feature will have no effect. The signal will be sent out of the
camera with unmodified signal width.

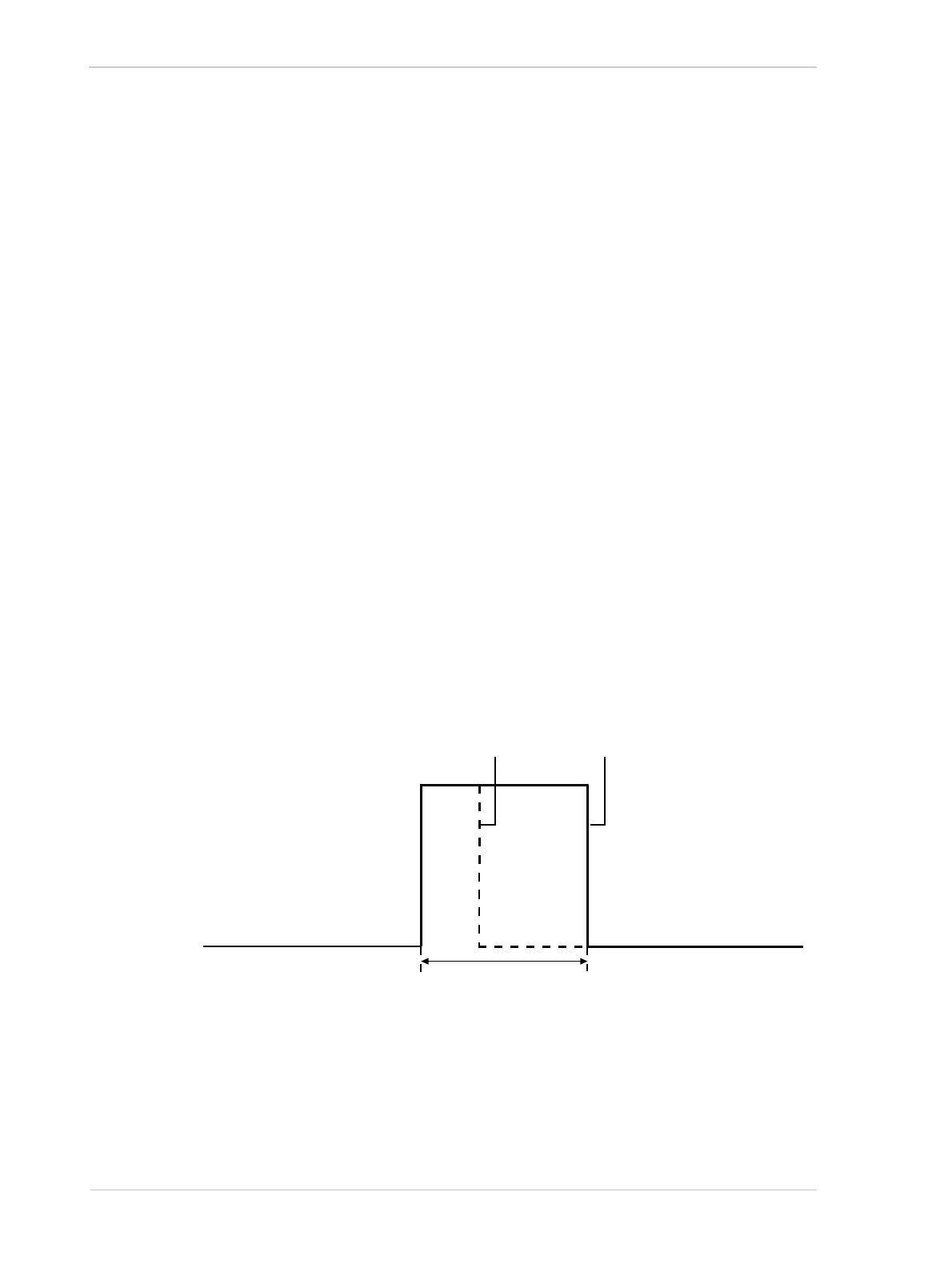

Fig. 49: Increasing the Signal Width of an Output Signal
Not to Scale
Output signal
Minimum output width
(max. 100 µs)
Without signal
width increase
With signal
width increase
