Features AW00123409000
208 Basler ace USB 3.0
7.6 Image Region of Interest (ROI)
The image region of interest (ROI) feature lets you specify a portion of the sensor array and after
each image is acquired, only the pixel information from the specified portion of the array is
transmitted out of the camera.
The region of interest is referenced to the top left corner of the sensor array. The top left corner is
designated as column 0 and row 0 as shown in Figure 86.
The location and size of the region of interest is defined by declaring an offset X (coordinate), a
width, an offset Y (coordinate), and a height. For example, suppose that you specify the offset X as
10, the width as 16, the offset Y as 6, and the height as 10. The region of the array that is bounded
by these settings is shown in Figure 86.
The camera will only transmit pixel data from within the region defined by your settings. Information
from the pixels outside of the region of interest is discarded.
One of the main advantages of the image ROI feature is that decreasing the height of the ROI can
increase the camera’s maximum allowed acquisition frame rate.
For more information about how changing the ROI height affects the maximum allowed frame rate,
see Section 6.10 on page 178.
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Offset
Y
Row
Column
Offset X
Width
Height

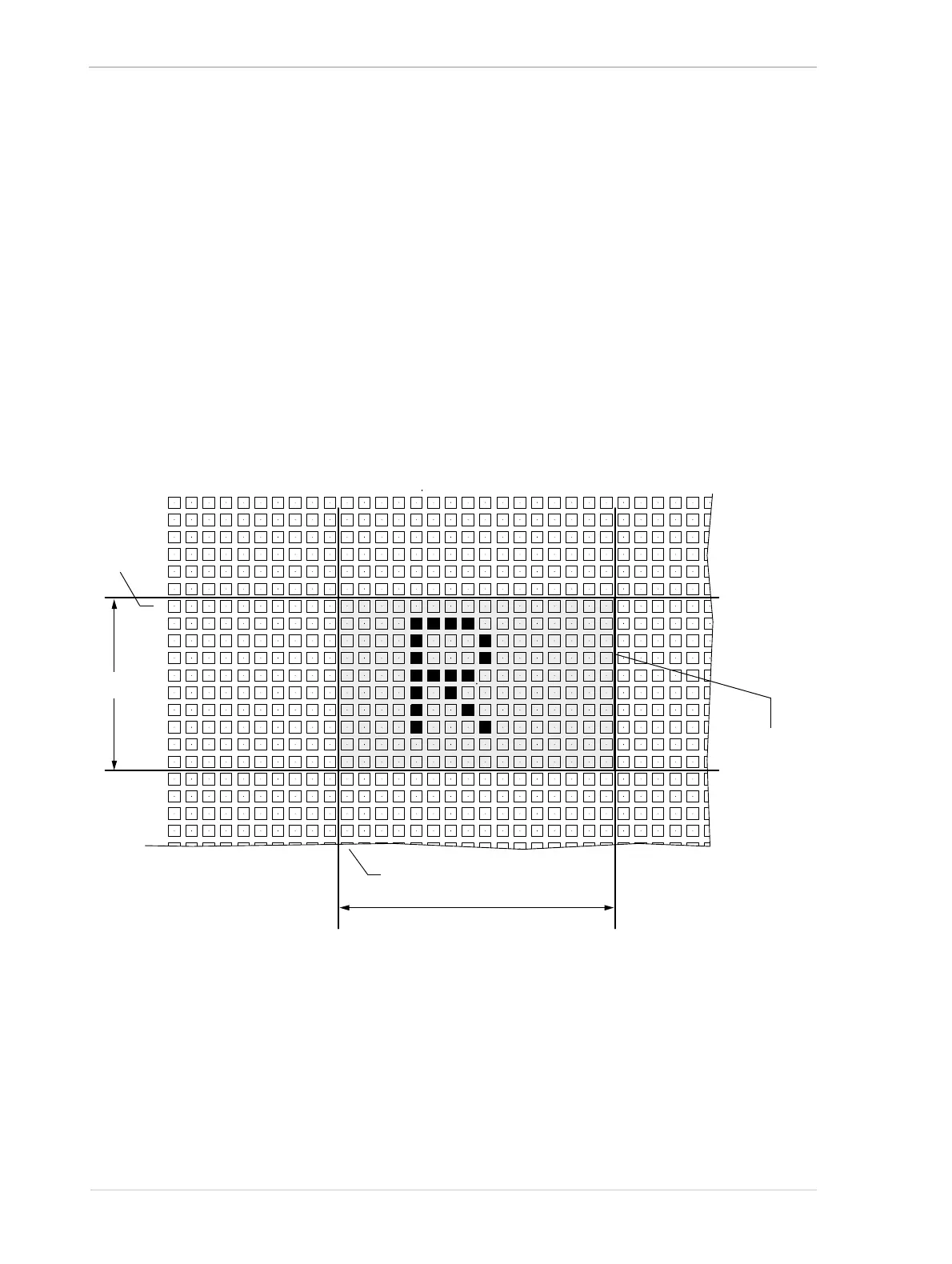

Fig. 86: Region of Interest
The camera
will only
transmit the
pixel data
from this
region
