AW00123409000 Image Acquisition Control
Basler ace USB 3.0 111
If the Trigger Mode parameter for the frame start trigger is set to off, the camera will generate all
required frame start trigger signals internally, and you do not need to apply frame start trigger
signals to the camera. The rate at which the camera will generate the signals and acquire frames
will be determined by the way that you set several frame rate related parameters.
If the Trigger Mode parameter for the frame start trigger is set to on, you must trigger frame start by
applying frame start trigger signals to the camera. Each time a trigger signal is applied, the camera
will begin a frame exposure. When frame start is being triggered in this manner, it is important that
you do not attempt to trigger frames at a rate that is greater than the maximum allowed. (There is
a detailed explanation about the maximum allowed frame rate in Section 6.10 on page 178.) Frame
start trigger signals applied to the camera when it is not in a "waiting for frame start trigger"
acquisition status will be ignored.

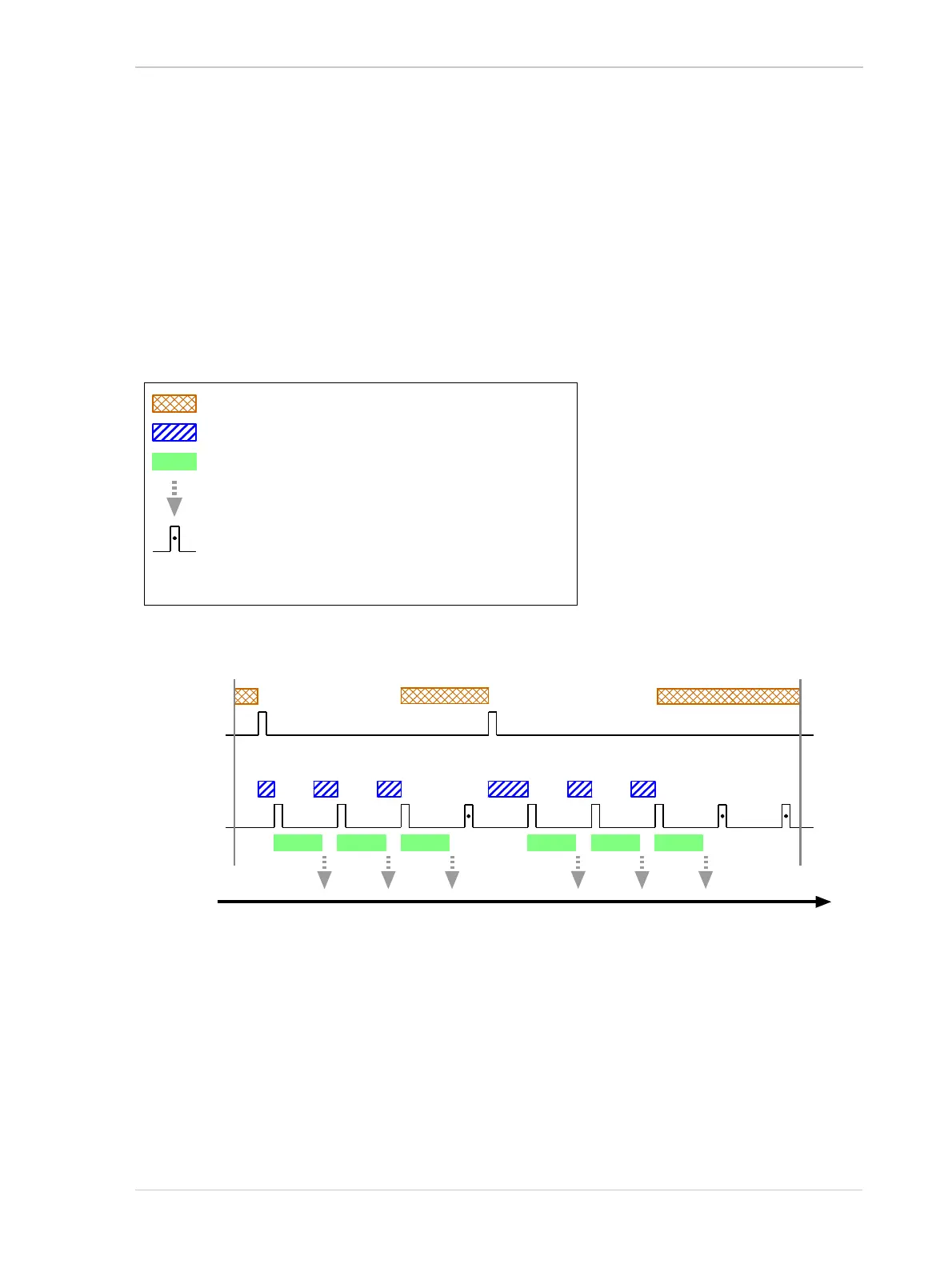

= a frame start trigger signal that will be ignored because the camera
is not in a "waiting for frame start trigger" status
= camera is waiting for a frame burst start trigger signal
= camera is waiting for a frame start trigger signal
= frame exposure and readout
Acquisition Burst Frame Count parameter setting = 3
= frame transmission
Fig. 54: Frame Burst Start and Frame Start Triggering
Frame Start
Trigger Signal
Frame Burst
Start Trigger
Signal
Time
Acquisition
Start
Command
Executed
Acquisition
Stop
Command
Executed
