You can calculate the reset runtime using this formula:
Reset Runtime = tRow x (ROI Height -1)
You can calculate the total readout time using this formula:
Total Readout Time = [ tRow x (ROI Height) ] + C
1
µs
You can calculate the total runtime using this formula:
Total Runtime = ExposureTime Parameter Setting + Total Readout Time
Line 1
Line 2
Line 4
Line 3
Line 5
Line 6
Line 8
Line 7
Line 9
Line 10
Line 11
Line N-2
Line N
Line N-1
tRow
Reset Runtime
Sensor Readout Time
tRow
Total Runtime
= line exposure
= line readout
Frame Start
Triggered

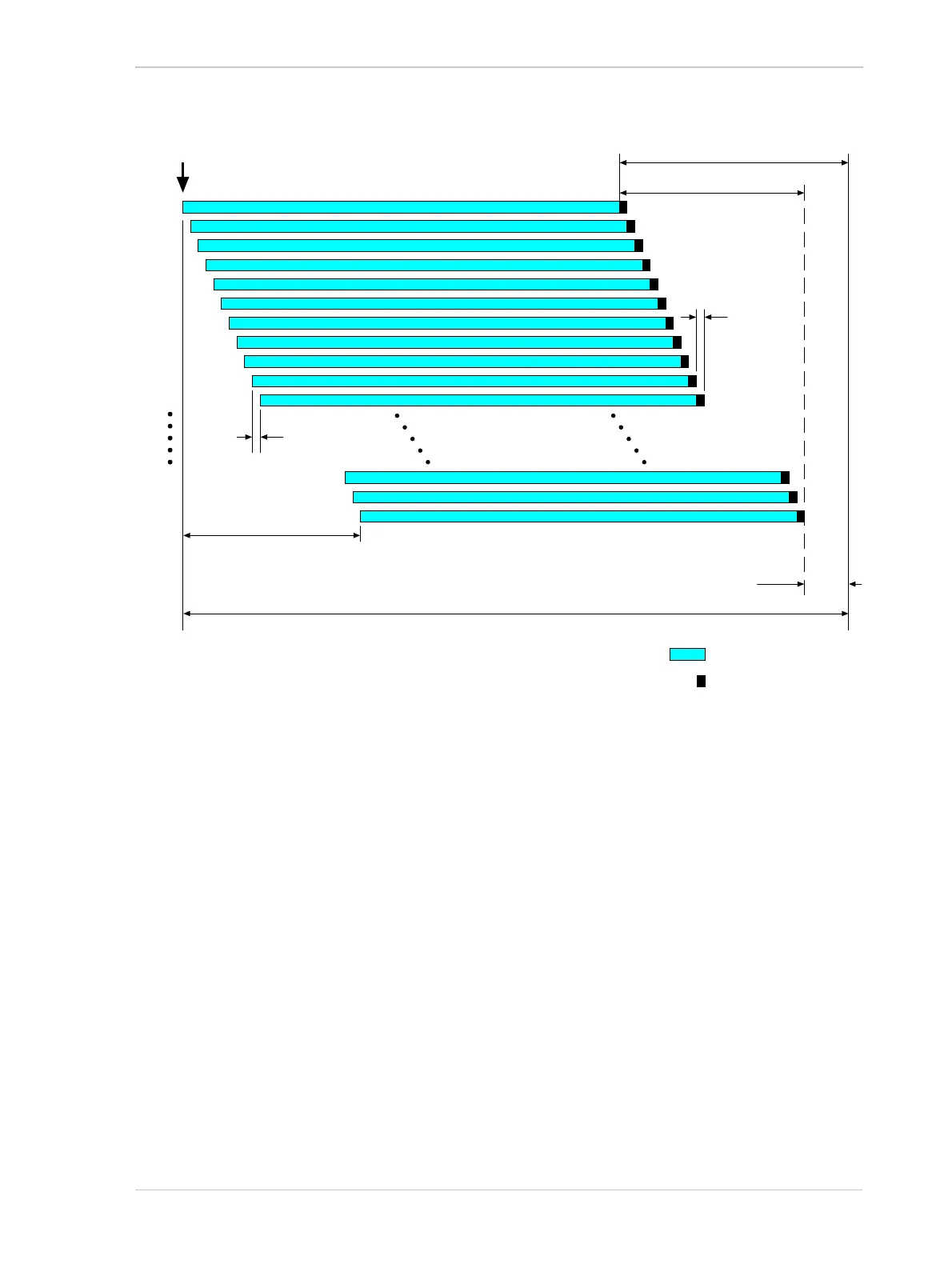

Fig. 62: Rolling Shutter in Rolling Mode
Total Readout Time
C
1
