You can calculate the total readout time using this formula:
Total Readout Time = [ tRow x (ROI Height) ] + C
1
µs
You can calculate the total runtime using the following formula:
Total Runtime = ExposureTime Parameter Setting + Total Readout Time
The cameras can provide an exposure active output signal that goes high when the exposure time
for line one begins and goes low when the exposure time for line one ends.
When the camera is operating in global release mode, the use of flash lighting is most strongly
recommended. The camera can supply a flash window output signal to facilitate the use of flash
lighting.
For more information about the exposure active output signal, see Section 6.8.1 on page 161.
For more information about the ExposureTime parameter, see Section 6.5 on page 139.
For more information about the flash window, see Section 6.6.2.3 on page 151.
Line 1
Line 2
Line 4
Line 3
Line 5
Line 6
Line 8
Line 7
Line 9
Line 10
Line 11
Line N-2
Line N
Line N-1
Sensor Readout Time
tRow
Total Runtime
= line exposure time
= line readout time
Frame Start
Triggered

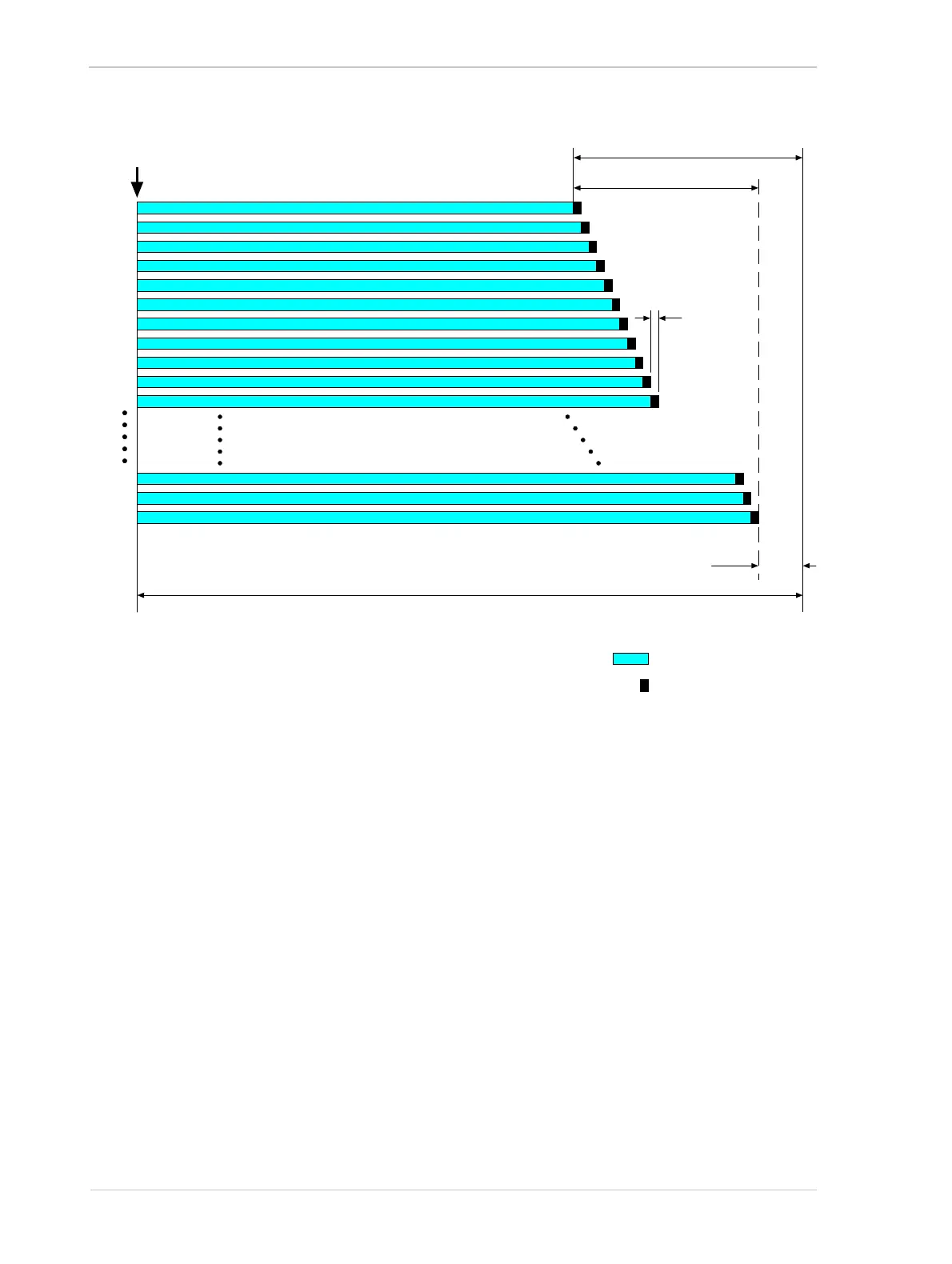

Fig. 63: Rolling Shutter in Global Reset Release Mode
Total Readout Time
C
1
