To facilitate the use of flash lighting, you can use the flash window output signal (see Section 6.8.2
on page 163). The flash window signal goes high when the flash window opens and goes low when
the flash window closes.
For more information about the ExposureTime parameter, see Section 6.5 on page 139.
In rolling mode, the flash window signal is not available when the exposure time
for the first row elapses before exposure for the last row of the current ROI has
started, i.e., more specifically, when Exposure Time ≤ Reset Runtime.
Line 1
Line 2
Line 4
Line 3
Line 5
Line 6
Line 8
Line 7
Line 9
Line 10
Line 11
Line N-2
Line N
Line N-1
Time to Flash Window Open
tRow
Flash Window Width
= line exposure time
= line readout time
Flash Window

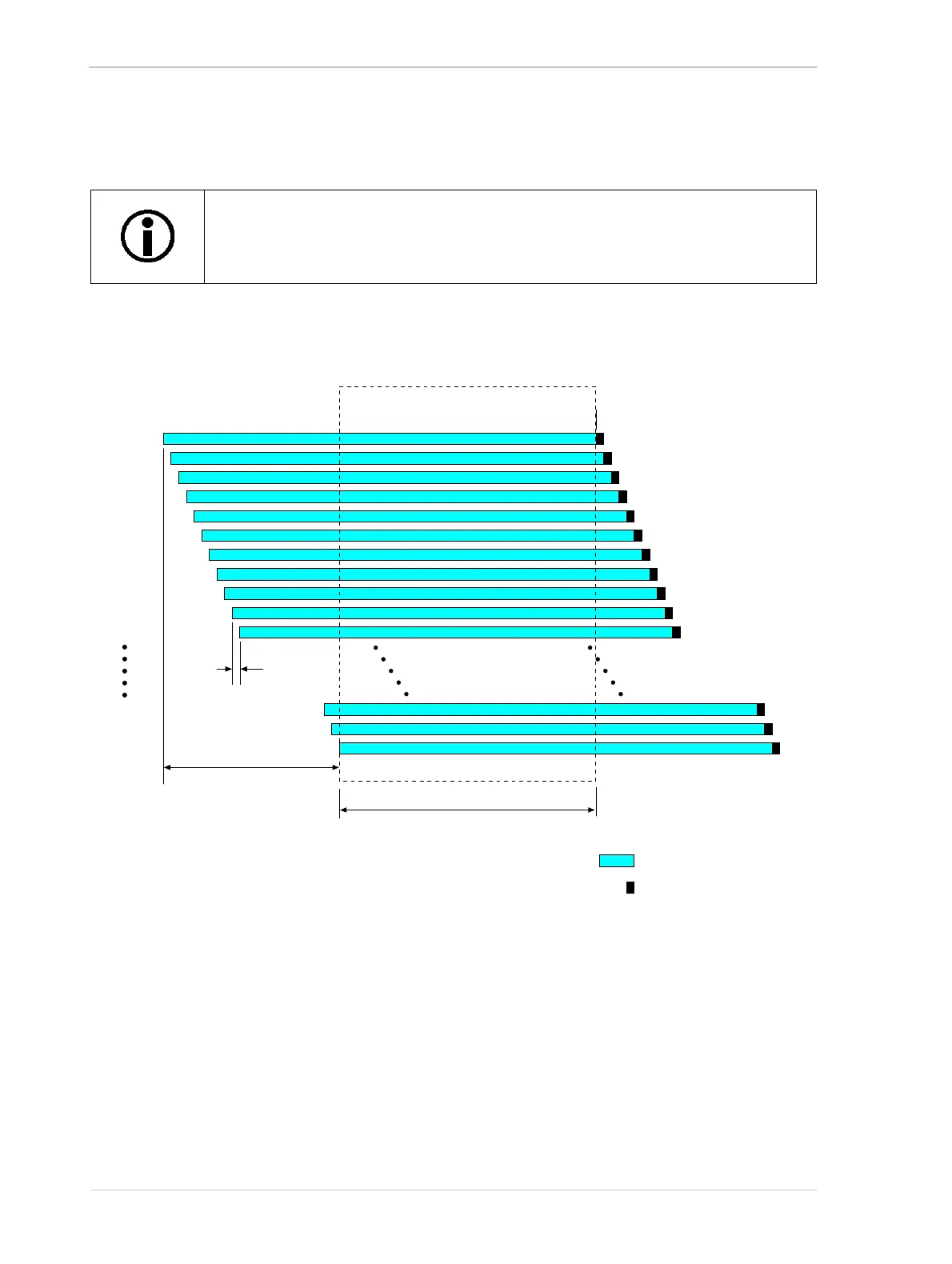

Fig. 64: Flash Window for Rolling Shutter in Rolling Mode
