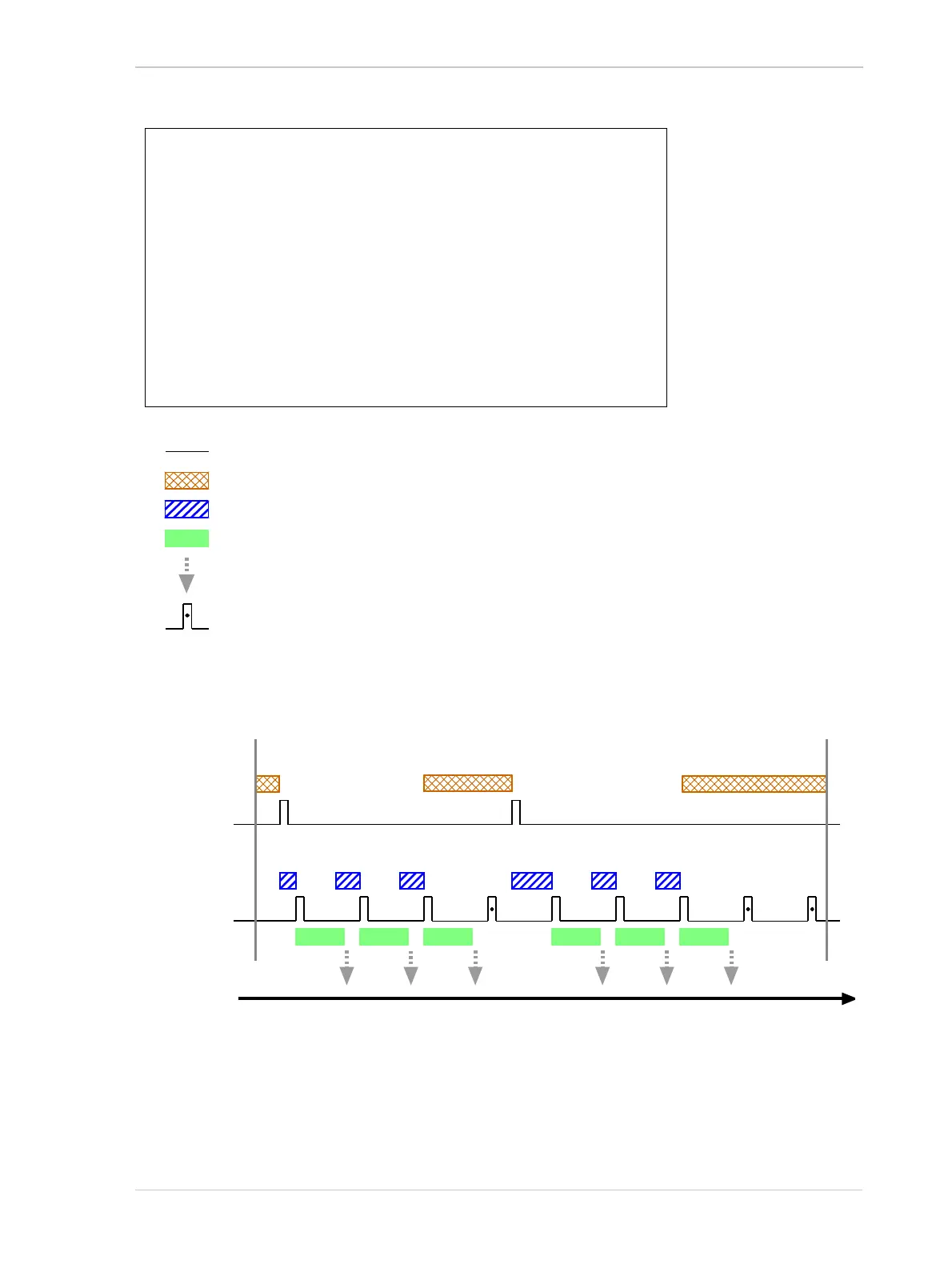

Fig. 84: Use Case 4 - Frame Burst Start Trigger On and Frame Start Trigger On
Use Case: Frame Burst Start Trigger On and Frame Start Trigger On
The frame burst start trigger is on, and the frame burst start trigger source
is set to software. The user must execute a frame burst start trigger
software command to make the camera exit the "waiting for frame burst
start trigger" acquisition status. Because the acquisition burst frame count
is set to 3, the camera will re-enter the "waiting for frame burst start trigger"
acquisition status after 3 frame start trigger signals have been applied.
The frame start trigger is on, and the frame start trigger source is set to
input line Line 1. The user must apply a frame start trigger signal to input
line Line 1 to start each frame exposure.
Settings: Acquisition Mode = Continuous
Trigger Mode for the frame burst start trigger = On
Trigger Source for the frame burst start trigger = Software
Acquisition Burst Frame Count = 3
Trigger Mode for the frame start trigger = On
Trigger Source for the frame start trigger = Line 1
Trigger Activation for the frame start trigger = Rising Edge
Time
Frame Burst Start
Trigger Software
Command
Executed
Frame Start
Trigger Signal
(applied to Line 1)
= a trigger signal applied by the user
= a frame start trigger signal that will be ignored because the camera
is not in a "waiting for frame start trigger" status
= camera is waiting for a frame burst start trigger signal
= camera is waiting for a frame start trigger signal
= frame exposure and readout
= frame transmission
Acquisition
Start
Command
Executed
Acquisition
Stop
Command
Executed
