925.916.2 - GBINSTRUCTIONS PERTAINING TO THE INSTALLER

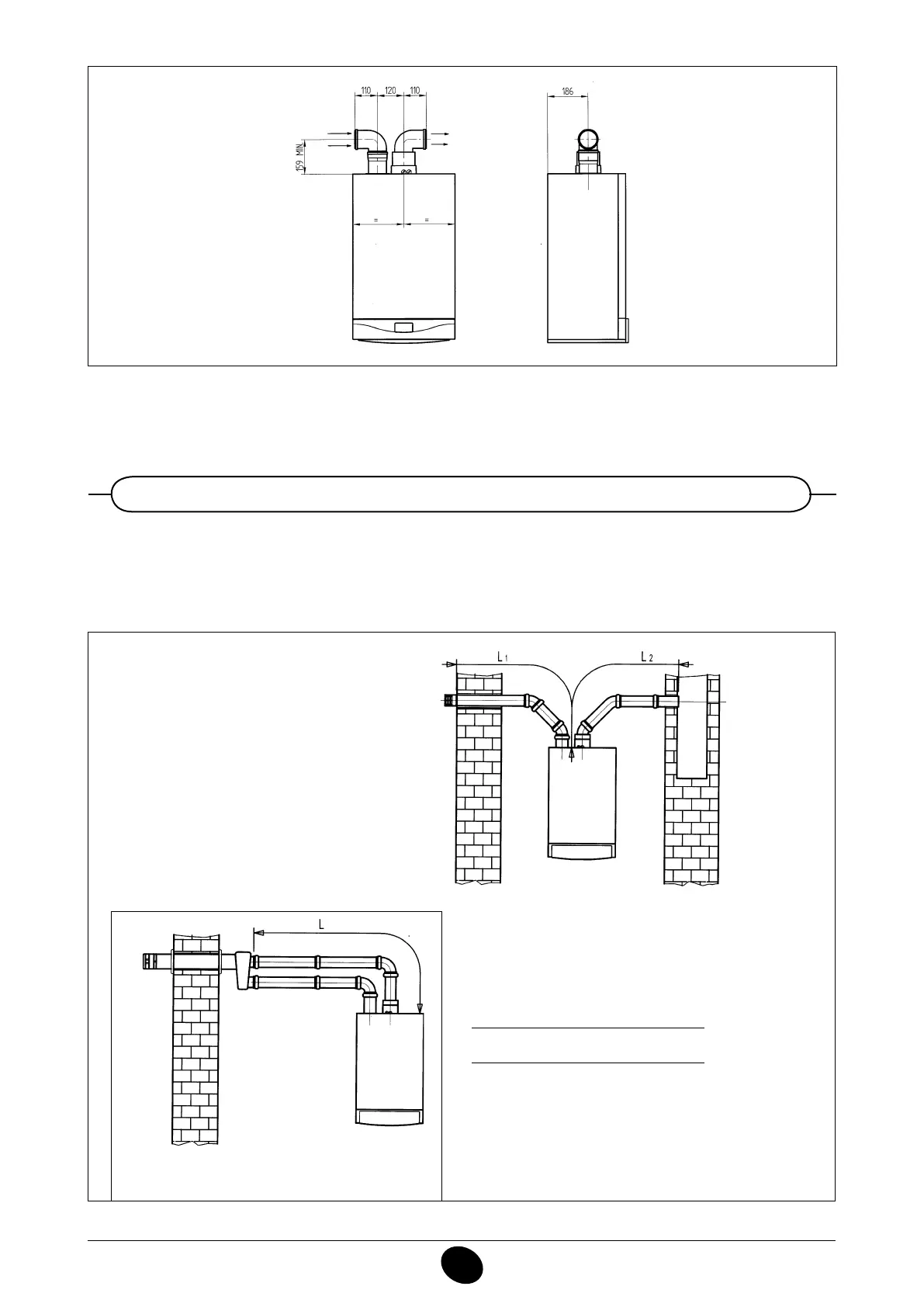

14.4 separateD horIzontal flue termInals InstallatIon optIons
IMPORTANT - Ensure a minimum downward slope of 1 cm toward the outside per each metre of duct length
Make sure that the exhaust and intake ducts are securely xed to the walls.
020503_0100
(L1 + L2) max = 80 m
L max = 15 m
0506_0805
010828_0600
The maximum length of the suction
duct must be 15 metres.
A 90° bend reduces the total duct length by 0.5 metre.
A 45° bend reduces the total duct length by 0.25 metre.
