52
925.916.2 - GBINSTRUCTIONS PERTAINING TO THE INSTALLER

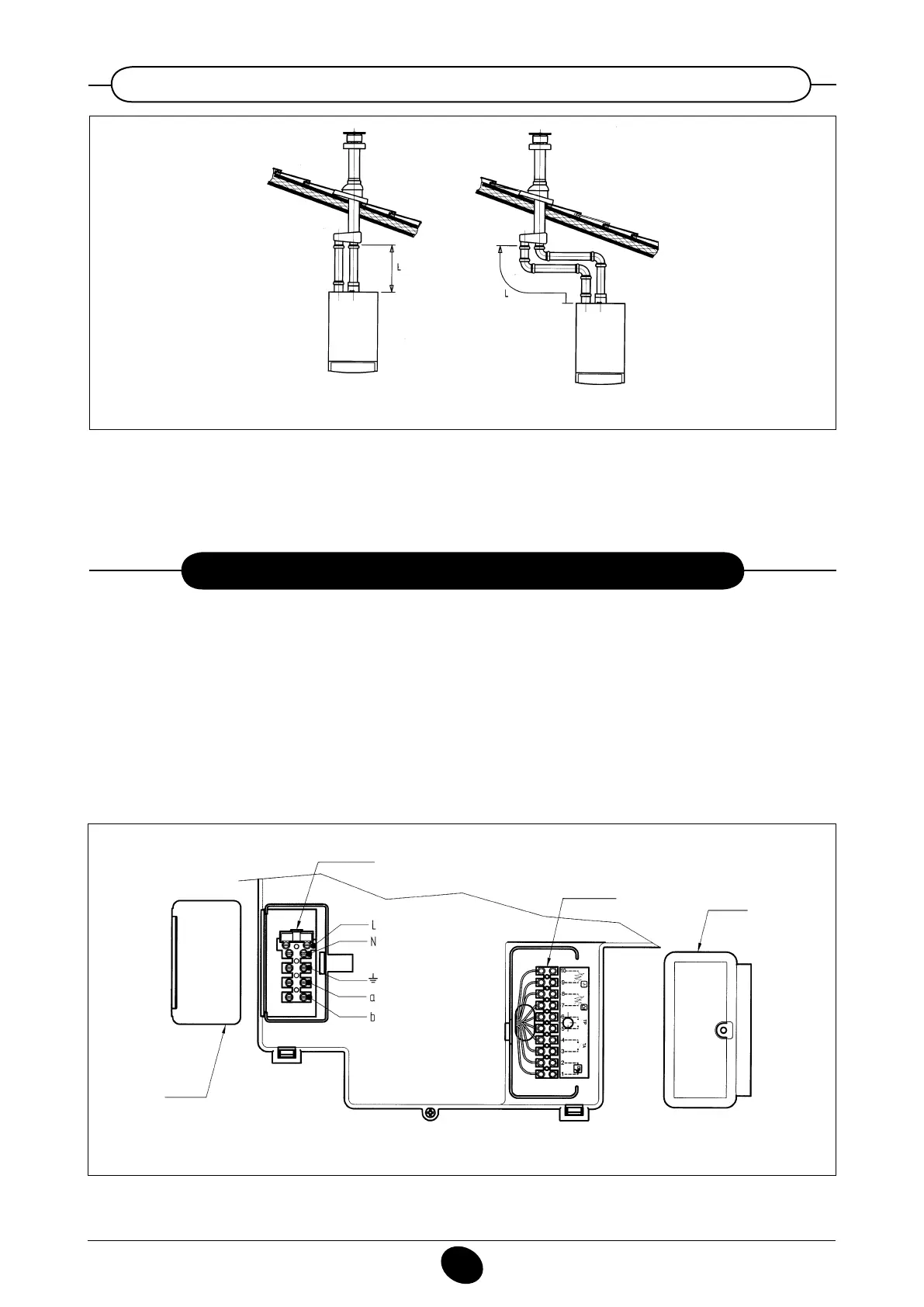

14.5
separateD vertICal flue termInals InstallatIon optIons
L max = 14 m
L max = 15 m
010828_0700
Important: if tting a single exhaust ue duct, ensure it is adequately insulated (e.g.: with glass wool) wherever the duct
passes through building walls.
For detailed instructions concerning the installation of ttings refer to the technical data accompanying the ttings.
15.
ConneCtIng the maIns supply
Electrical safety of the appliance is only guaranteed by correct grounding, in compliance with the applicable laws and
regulations.
Connect the boiler to a 230V monophase + ground power supply by means of the three-pin cable supplied with it and
make sure you connect polarities correctly.
Use a double-pole switch with a contact separation of at least 3mm in both poles.
In case you replace the power supply cable t a HAR H05 VV-F’ 3x0.75mm
2
cable with an 8mm diameter max.
The fuse, a fast-acting type rated 2A, is incorporated into the power supply terminals (remove the black fuse holder to
enable inspection and/or replacement.)
Figure 11
020523_0400
Terminals M1
Terminals M2
Cover
Cover
