42 Preparing the Pump and IV Sets
Manual 41018v0800 SIGMA Spectrum Infusion System
Revision B Operator’s Manual
11. Close the door by pressing the upper and lower corners near the door latches. See Figure 17.
WARNING Bolus.
When the administration set is loaded, the door is closed and the
slide clamp is removed, a fluid bolus will occur (maximum of 0.1 mL).
12. Remove and open the slide clamp from the keyhole by holding the tubing down on both sides
of the keyhole with one hand and removing the slide clamp up and out with the other hand.
The slide clamp is open when it moves freely on the tubing.

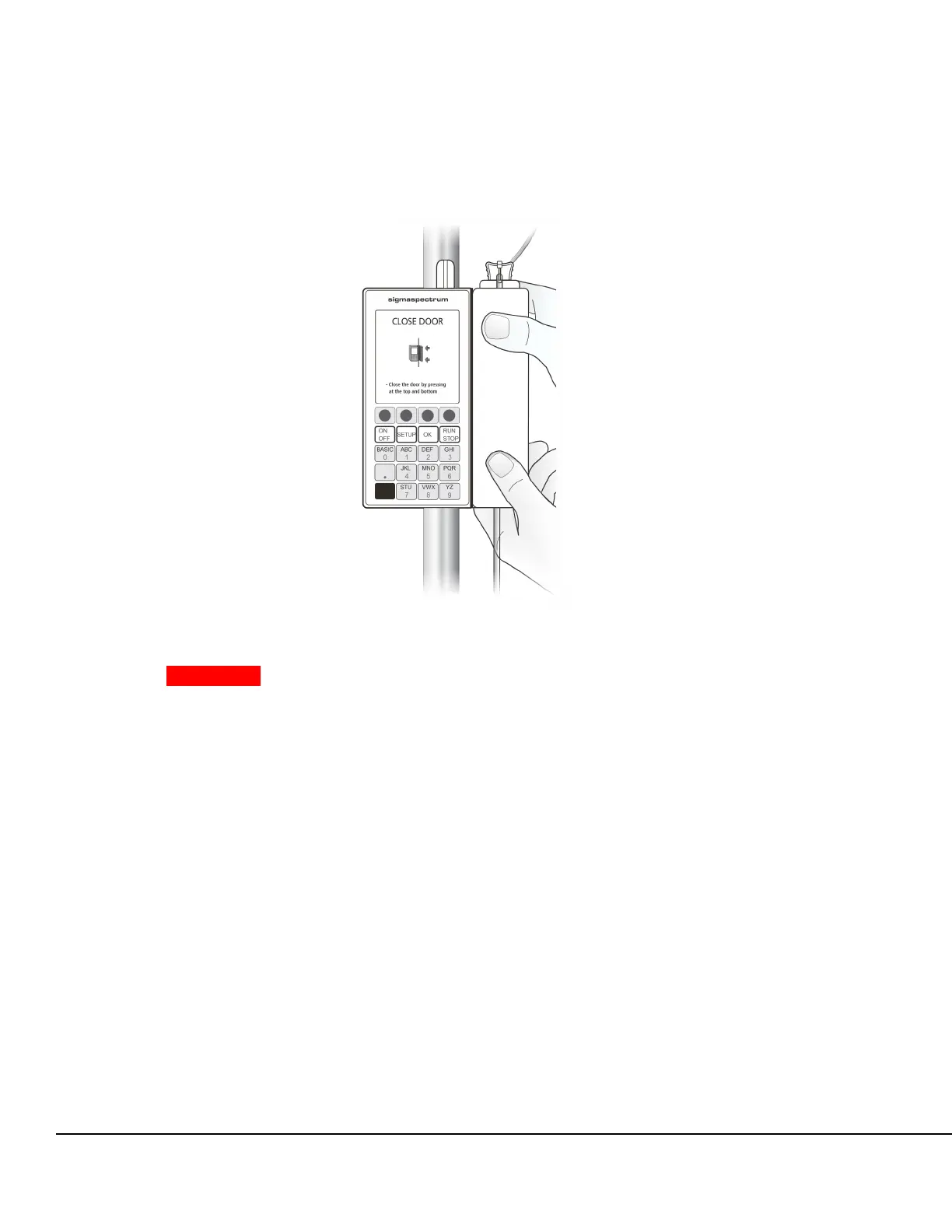

Figure 17. Proper Door Closing.
