Preparing the Pump and IV Sets 41
SIGMA Spectrum Infusion System Pump Operating Software Version 8.00
Operator’s Manual For Use With MDL Version 8.0
The tubing is properly loaded when the screen displays three green bars and check marks for
all four loading guides. See Figure 16.

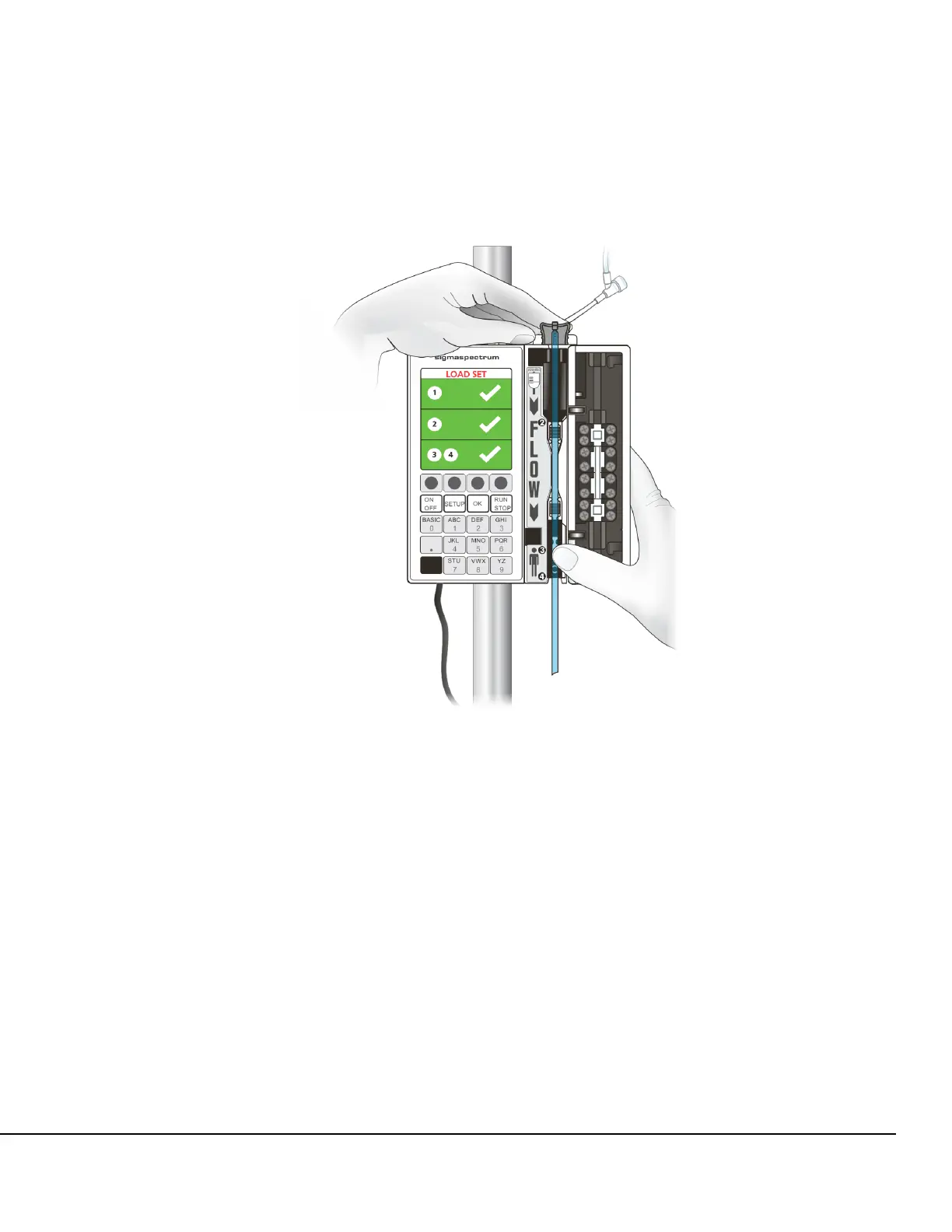

Figure 16. IV Set Loaded in the Tubing Channel.
