7.3 Overview of features
7.3.1 Display and operation
Great emphasis was placed on easy-to-follow, simple, and intuitive
operation while developing PoolManager
®
. The screen design is also
presented in a modern and attractive manner.

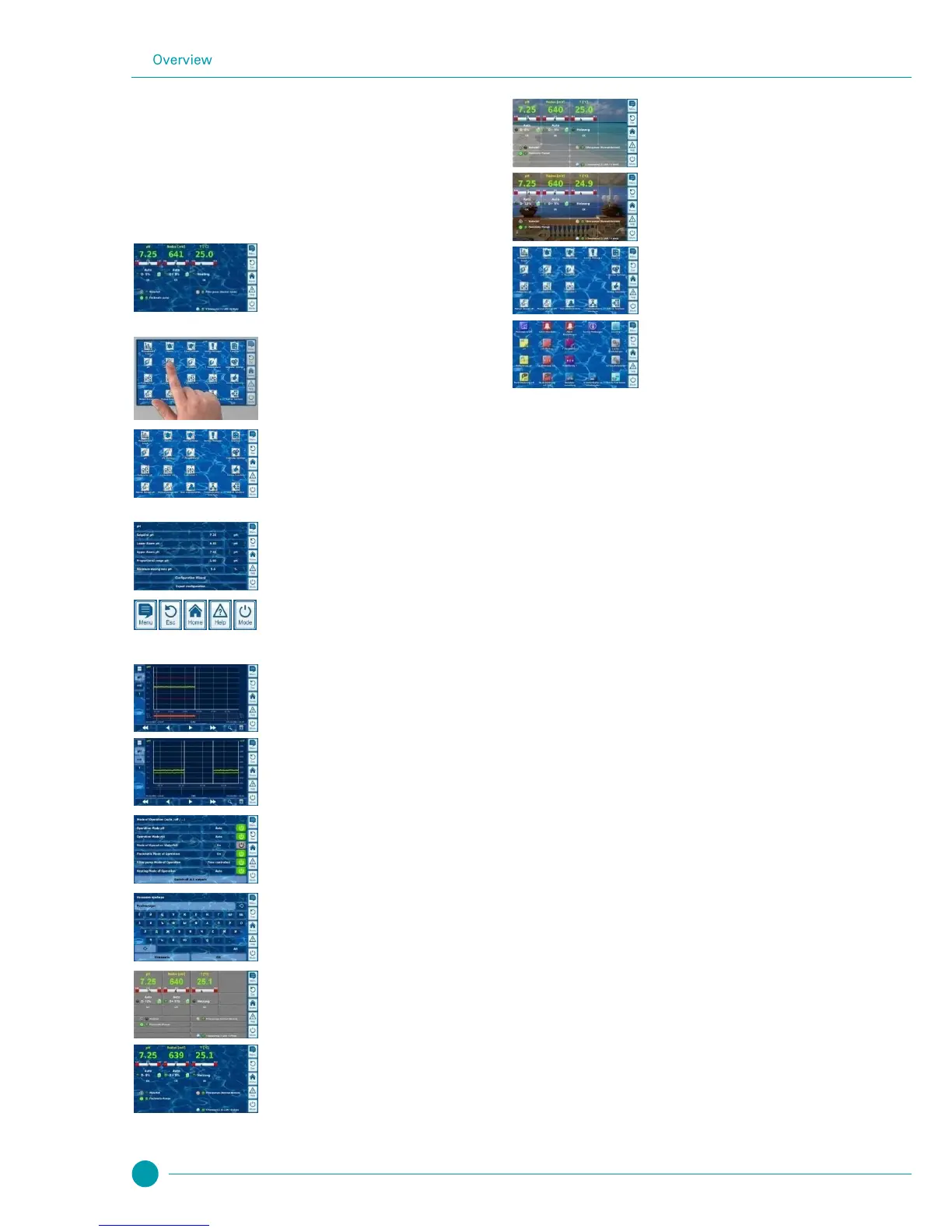

The following is an overview of the significant features and concepts in
the graphic interface.
 Large, high-resolution 7" (18cm) colour TFT
graphics display
 Attractive 16:10 wide format
 Wide VGA resolution (800x400)
 65536 colours
 Energy-saving LED backlight
Simple, intuitive touchscreen operation
 Robust touchscreen with additional full
design foil overlay
 Every touch is confirmed with a signal tone
Icon menu
 Up to 20 high quality icons
 Faster and easier access to all functions
and parameters
 Additional text for each icon in order to
ensure clarity
Standard menu
 Uniform concept for all standard menus
 Uniform operation throughout
Hotkeys
 5 hotkeys for menu navigation and for
important basic functions that are regularly
needed (e.g. help function)
Measurement graph
 Max record length of 1 year
 Max resolution 1 min
 Display of 1 or 2 measured variables
 Display of all important alarm statuses
Mode menu
 Called up using special Mode hotkey
 Various system functions can be turned on
and off quickly and easily
Numerous menu languages available
 Extensive support for special international
characters and complete character sets
(e.g. Cyrillic and Greek)
Individualisation
 Selectable menu style
 Selectable background image
 Selectable icon style
7.3.2 Measuring and control
 pH and redox measurement via single-rod measuring cells
(glass electrodes)
 free chlorine / bromine measurement via open potentiostatic
measurement (3-electrode system)
 Temperature measurement in the measuring chamber (PT1000
sensor)
 2 additional temperature inputs for additional functions (PT1000,
KTY83, or KTY16-6 sensors)
 Proportional control for all control modules
 Minimum dosing rate provides for additional I-(integral)
contribution, i.e. for reliable attainment of the setpoint.
 All important control parameters are individually programmable for
each control module (setpoint, alarm thresholds, proportional
range, dead zone (pH), dosing cycle time, minimum dosing rate,
dosing monitoring)
 Continuous display of current dosing rate
 Conversion of all measured variables via high resolution 10-bit
A/D converter.
 1- or 2-point calibration for pH
 Simple and precise 1-point calibration for chlorine / bromine
(PoolManager
®
PRO only)
 1-point calibration for redox (mV) and temperature
7.3.3 Safety functions
Extensive monitoring and alarm functions
 Upper and lower measured value alarms
 Flow monitoring
 Level warnings and level alarms (canister level)
 Dosing monitoring
(monitoring of the attainment towards the setpoint)
 Battery alarm (buffer battery for the real-time clock)
 Start delay after turning on PoolManager
®
or after turning
circulation back on
 Automatic blocking of dosing in critical alarm states and during
start delay
 Alarm signalisation via
 Screen display
 Acoustic alarm (can be deactivated)
 Alarm relay
 Continuous monitoring of correct program operation and
automatic reset in the event of an error.
