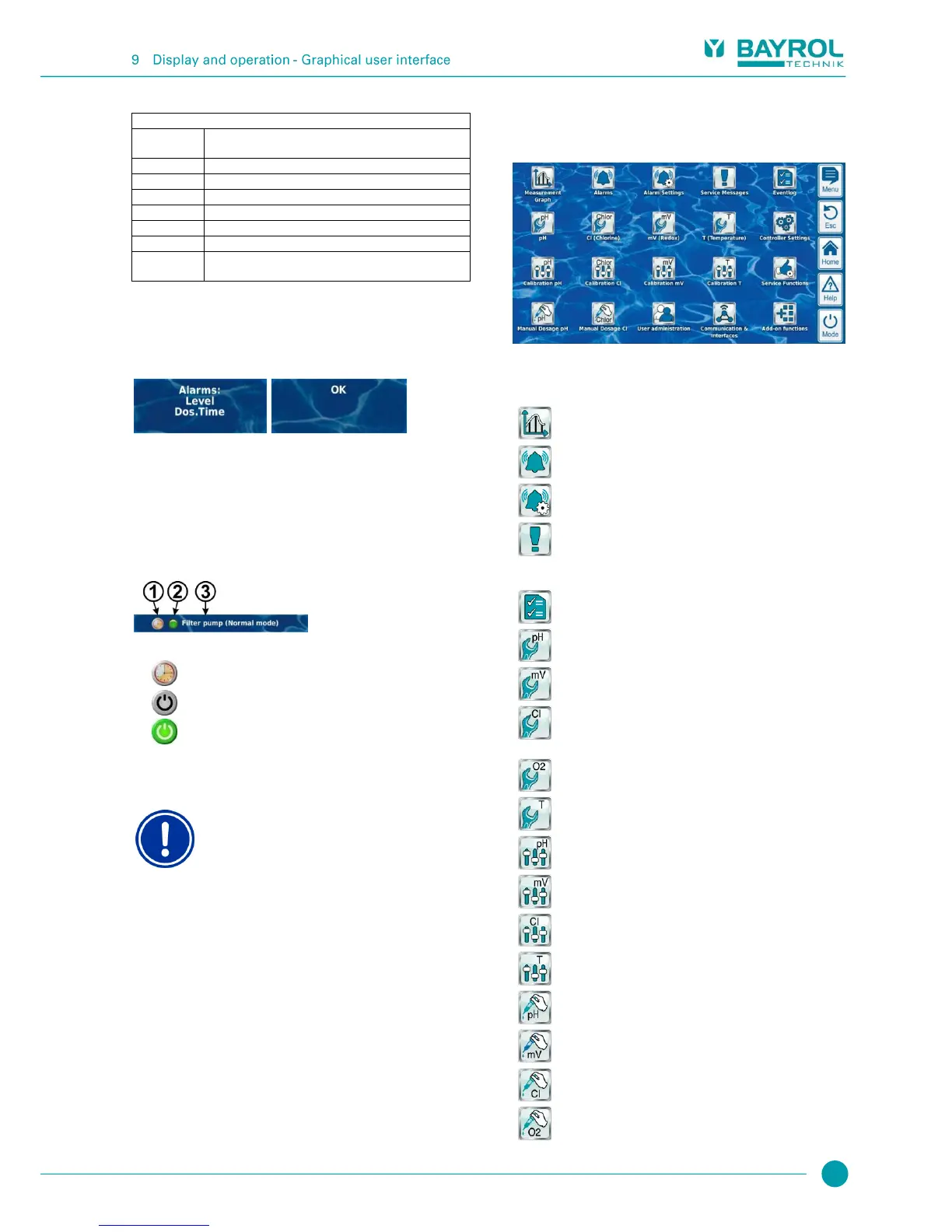

Bayrol PoolManager PRO - 9 Display and Operation - Graphical User Interface; Main Menu (Icon Menu)

15
Operating mode / operating status
Auto
Measuring, control, and dosing run
in automatic mode
Manual
Manual dosage is running
Off
Control is turned off
Alarm
Dosing is blocked by an alarm
Flow
Dosing is blocked because there is no flow signal present
Level
Dosing is blocked by a level alarm
Delay
Dosing is blocked because start delay is running
Dosage
PoolManager
®
O2 (Bayrosoft
®
) only:
Automatic dosage is running
The corresponding field for temperature measurement shows the
operating state for heating and/or solar heating if these add-on
functions are being used
3 Alarms
Active alarms for the corresponding module are displayed or 'OK' if
there are no alarms pending.
4 Add-on functions
In the add-on functions area in the home view, the most important
information for all current active add-on functions is shown. The
content of this area is adjusted automatically such that all active add-
on functions can be seen (max. of 8).
1 Symbol for current operating mode
Timer operation
Function turned off
Function turned on
2 LED displays whether the add-on function is currently turned on
3 Name of the add-on function and, if applicable, further information
on current operating status
NOTE
No touch operation in home view
In order to avoid accidental erroneous commands,
home view does not react to taps on the touchscreen.
To configure settings or to move to other menus, first
use the hotkey to call up the main menu.
9.1.2 Main menu (icon menu)
The main menu can be called up at any time using the Menu hotkey. It
facilitates direct access to all important system functions.
Every function is represented by an icon with supplemental text
(The set of icons shown depend on the controller model).
Measurement Graph
Display of graphic measurement progression
Alarm Overview
Display and acknowledgement of alarms
Alarm Settings
Settings for alarms and their signalisation
Service Messages
Display and acknowledgement of service information
(e.g. notification when electrode replacement
needed)
Eventlog
Display of important events and incidents
Configuration pH
Settings for pH measurement and control
Configuration redox (mV)
Settings for redox (mV) measurement and control
Configuration Cl (chlorine) / Br (bromine)
Settings for chlorine / bromine
measurement and control
Configuration O2 (Bayrosoft
®
)
Settings for O2 (Bayrosoft
®
) automatic dosing
Configuration Temperature
Settings for temperature measurement
Calibration pH
pH measurement calibration
Calibration redox (mV)
redox (mV) measurement calibration
Calibration Cl (chlorine) / Br (bromine)
Chlorine / bromine measurement calibration
Calibration Temperature
Temperature measurement base calibration
Manual dosage pH
Manually controlled addition of pH minus (or pH plus)
Manual Dosage redox (mV)
Manually controlled addition of chlorine / bromine
Manual Dosage Cl (chlorine) / Br (bromine)
Manually controlled addition of chlorine / bromine
Manual Dosage O2 (Bayrosoft
®
)
Manually controlled addition of O2 (Bayrosoft
®
)
