Bayrol PoolManager PRO - Interfaces

7
12
 PCs with a Linux operating system

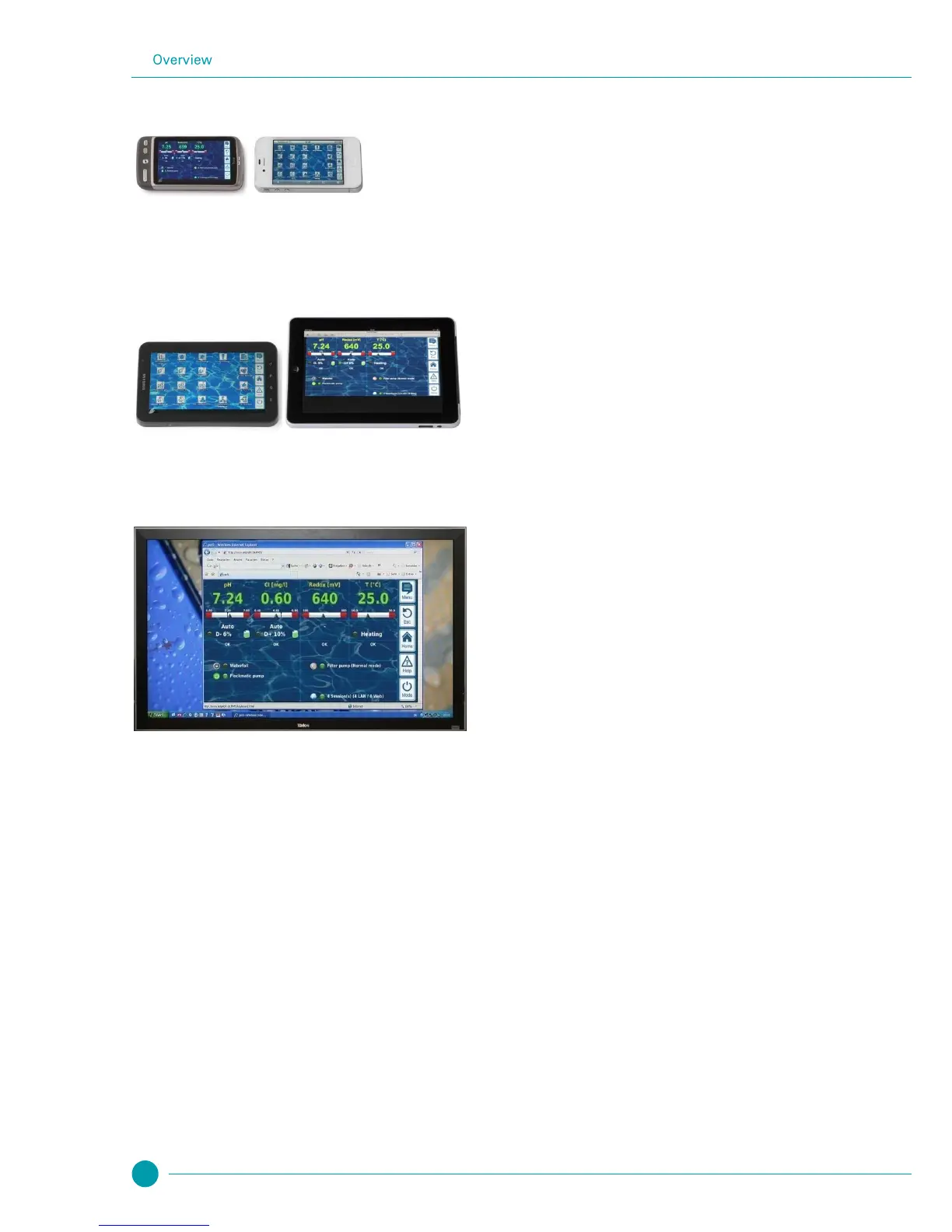

Smartphones, such as:
 Apple iPhone
®
 Smartphones with a Google Android
®
operating system
 Smartphones with a Windows
®
operating system
 BlackBerry
®
smartphones
Tablet PCs, such as:
 Apple iPad
®
 Tablet PCs with a Google Android
®
operating system
(e.g. Samsung Galaxy Tab
®
)
Web-compatible TV devices
(or TV devices that are used as a PC screen)
Building management systems
Building management systems (BMS) and touch panels for living
areas can be used for remote access to PoolManager
®
if they have a
modern standard Web browser.
7.3.6 Interfaces
Measurement inputs:
 pH (BNC connector)
 3x temperature (PT1000 or KTY83 sensor)
Depending on the controller model:
 CI / Br (potentiostatic 3-electrode system)
 Redox potential (BNC connector)
Switching inputs:
 Flow switch (measuring water circuit),
optional pressure switch (main circulation circuit)
 2 level inputs for pH and disinfection (canister level)
 4 additional switching inputs for additional functions
Relay outputs:
 3 dosage relays (pH minus, pH plus, disinfection). Unused dosing
relays may be used for add-on functions, alternatively.
 Alarm relay (may be used for add-on functions, alternatively)
 4 relays (OUT1...OUT4) for add-on functions
Every single relay output can be individually configured as a 230 VAC
output or volt-free switch.
Communication interfaces:
 Ethernet LAN (RJ45 connector)
 Internal USB interface for memory sticks
(also used for software updates)
 CAN bus for external feature boxes
Optional plug-in modules (up to 3)
 4x power output 4-20 mA
 Additional plug-in modules may be available in the future
as required
