26.3 Menu Filter pump
The configuration menu for filter pump control is called up with the
following icon:
Filter pump
The following settings are available:
Menu Filter pump
Filter pump mode of operation
Selection of operating mode:
 Inactive (Filter pump control not used)
 Filter pump off
 Normal mode
 Eco mode
 Increased mode
 Timer
Programmable timer
Programming timers.
Basic configuration
Basic settings for filter pump control.
Dosing settings
Settings to enable or block dosing in the different operating modes of the filter
pump
Safety settings
Safety settings for filter pump control.
INFO
Allocation of relay switch outputs
An operating mode can only be activated if you have
allocated a relay switch output to it beforehand
in the Basic Configuration menu.

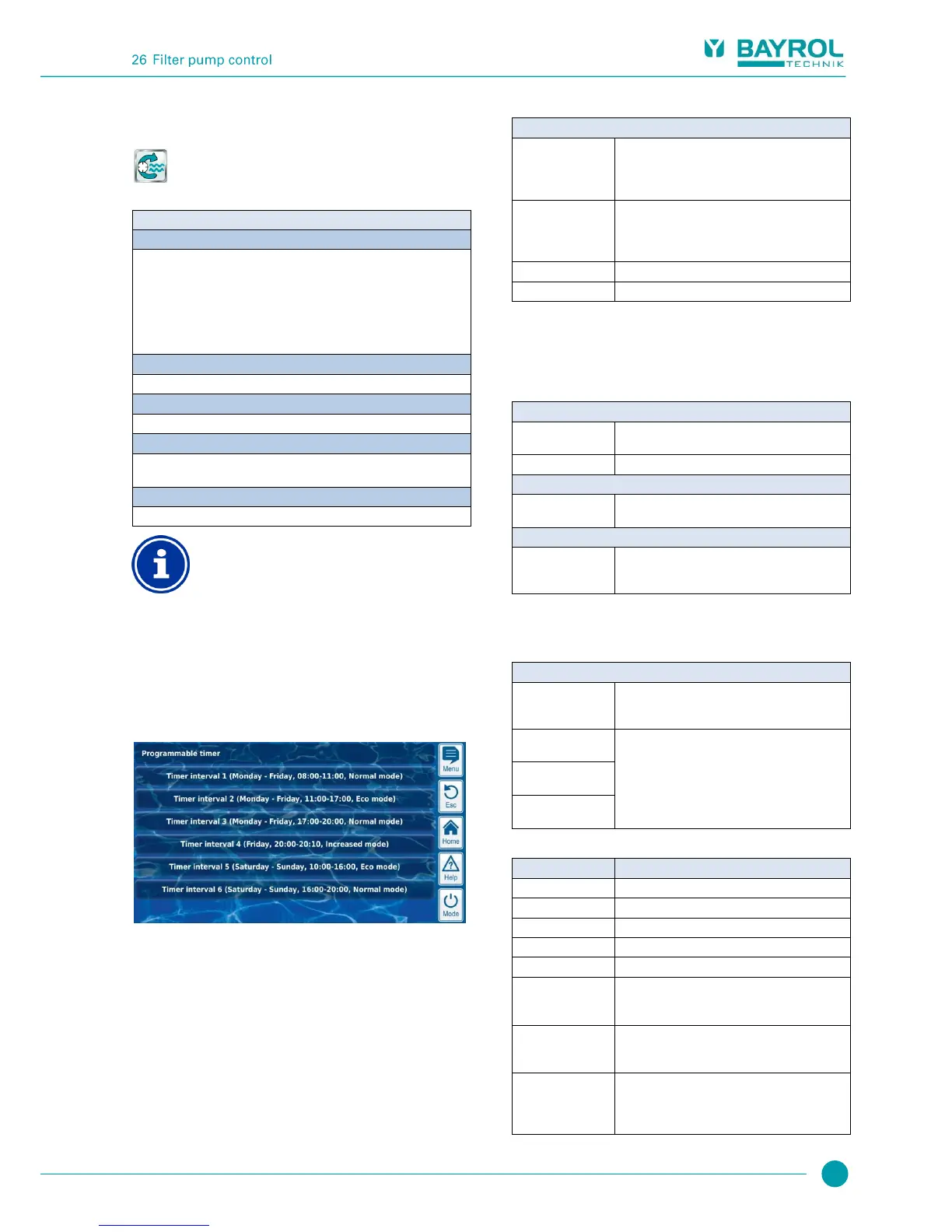

26.3.1 Programmable timer
This menu provides 6 freely programmable timer intervals
for filter pump control.
The timer intervals are displayed in the menu in an easy-to-follow
manner with programmed weekdays and times and with the filter
pump's operating mode:
The following settings are possible for each of the 6 timer intervals:
Sub-menu Timer interval (1..6)
Filter pump mode
The desired operating mode for this time interval:
 Normal mode
 Eco mode
 Increased mode
Days of the Week
Selection of one or multiple weekdays on which the
timer interval should be active.
If no weekday is activated, then the entire timer
interval is inactive.
Switch-on time
Time at which switch-on occurs.
Switch-off time
Time at which switch-off occurs
26.3.2 Basic configuration
The menu Basic configuration is used to configure the basic settings
for a switch output. This is generally done only once during
commissioning.
The following settings are available:
Sub-menu Basic configuration
Filter pump control
interface
Relay control or
4-20 mA current output
External switches
See External switches.
For Relay control only
Allocation of
inputs and outputs
See Allocation of inputs and outputs.
Only for 4-20 mA current output
Configuration
4-20mA current
output
See Configuration 4-20 mA current output
26.3.2.1 Allocation of inputs and outputs
For Relay control only:
This menu allocates the relay switch outputs for filter pump control.
Sub-menu Allocation of inputs and outputs
Relay output 'Filter
pump on/off'
Relay switch output for turning on the filter pump (for
conventional filter pumps or as main on/off switch for
variable filter pumps).
Relay output
'Normal mode'
Relay switch outputs for activating the various
operating modes for variable filter pumps.
Note: Not all three operating modes have to be used.
Relay output
'Eco mode'
Relay output
'Increased mode'
For each relay switch output, the following settings are available:
Setting
Description
None
The corresponding function is not used.
OUT 1 [26]
Relay switch output OUT 1 [terminal block 26]
OUT 2 [27]
Relay switch output OUT 2 [terminal block 27]
OUT 3 [30]
Relay switch output OUT 3 [terminal block 30]
OUT 4 [31]
Relay switch output OUT 4 [terminal block 31]
pH+ [22]
Dosing relay pH + [terminal block 22]
Can only be used
if no pH+ dosage is used.
pH- [21]
Dosing relay pH - [terminal block 21]
Can only be used
if no pH- dosage is used.
Alarm [25]
Alarm relay [terminal block 25]
Can only be used, if the alarm relay function has
been deactivated in the Alarm Settings menu (Use
alarm relay = No).
