Beam ECG - Print

49
Beam
®
, Operating Manual, Rev. 4.6.1 01/2016, GmbH
Hypertension-Management-Software Client-Server
®
4

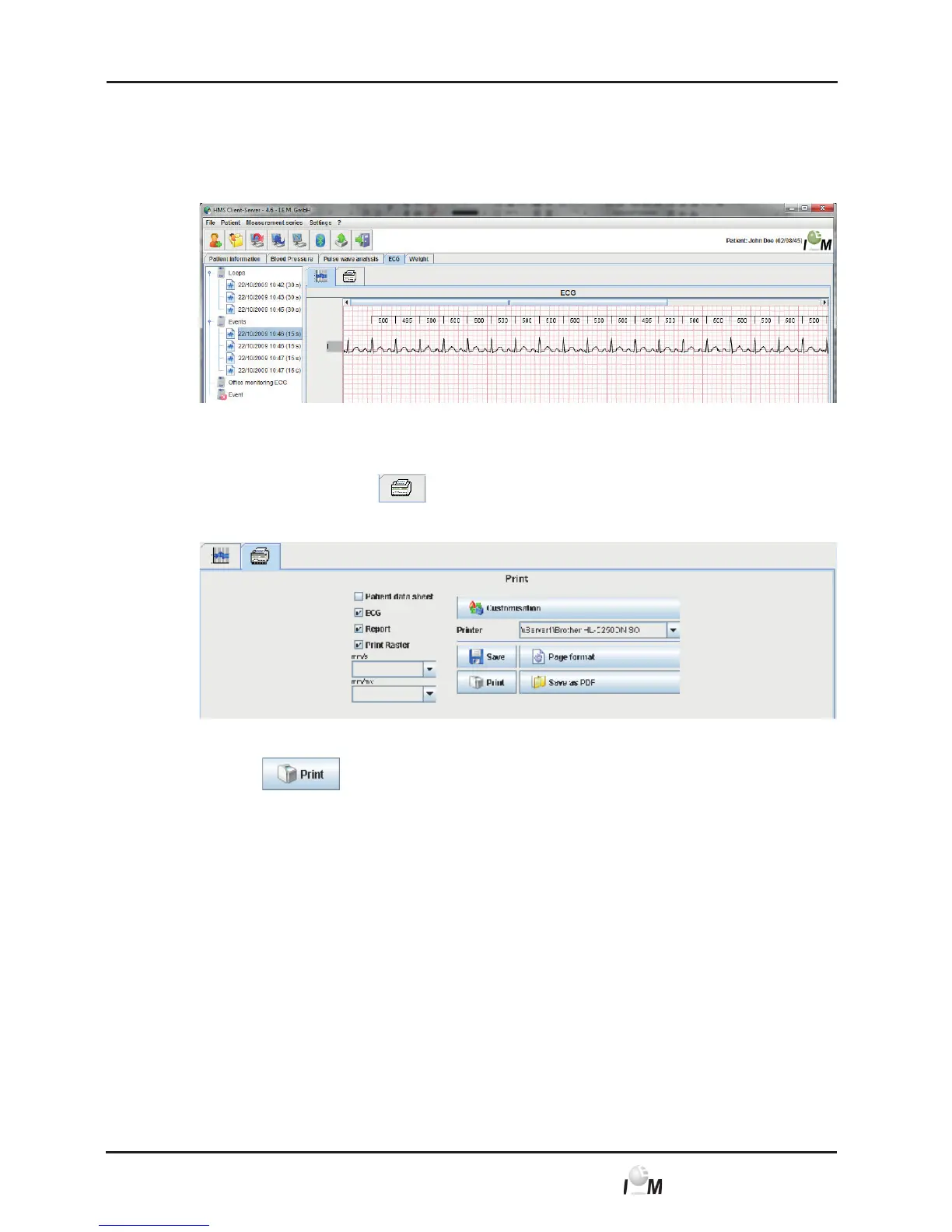

4.10.6 Print
► Display the desired patient (see 4.6.2, Select an already created patient).
► In the working window click on the ECG tab.
The ECG tab contains a list of already transferred recordings on the left side.
► Click on a measurement.
The belonging ECG will be displayed.
► To print click on this tab
.
A print window will open.
► Click on the analysis and settings to be printed.
► Click on
.
The print window appears.
