Bematech LR2000 - ESC M Nl Nh D1

LR2000 Programming Manual V1.2
d1 = <1F>H d4 = <08>H d7 = <10>H...
d2 = <FF>H d5 = <08>H d8 = <04>H...
d3 = <80>H d6 = <00>H d9 = <00>H...
ESC m nL nH d1...dk
[Name] Select bit-image mode
[Format] ASCII ESC m nL nH d1...dk
Hex 1B 2A m nL nH d1...dk
Decimal 27 42 m nL nH d1...dk
[Range] m = 0, 1, 32, 33
0 nL 255
0 nH3
0 d 255

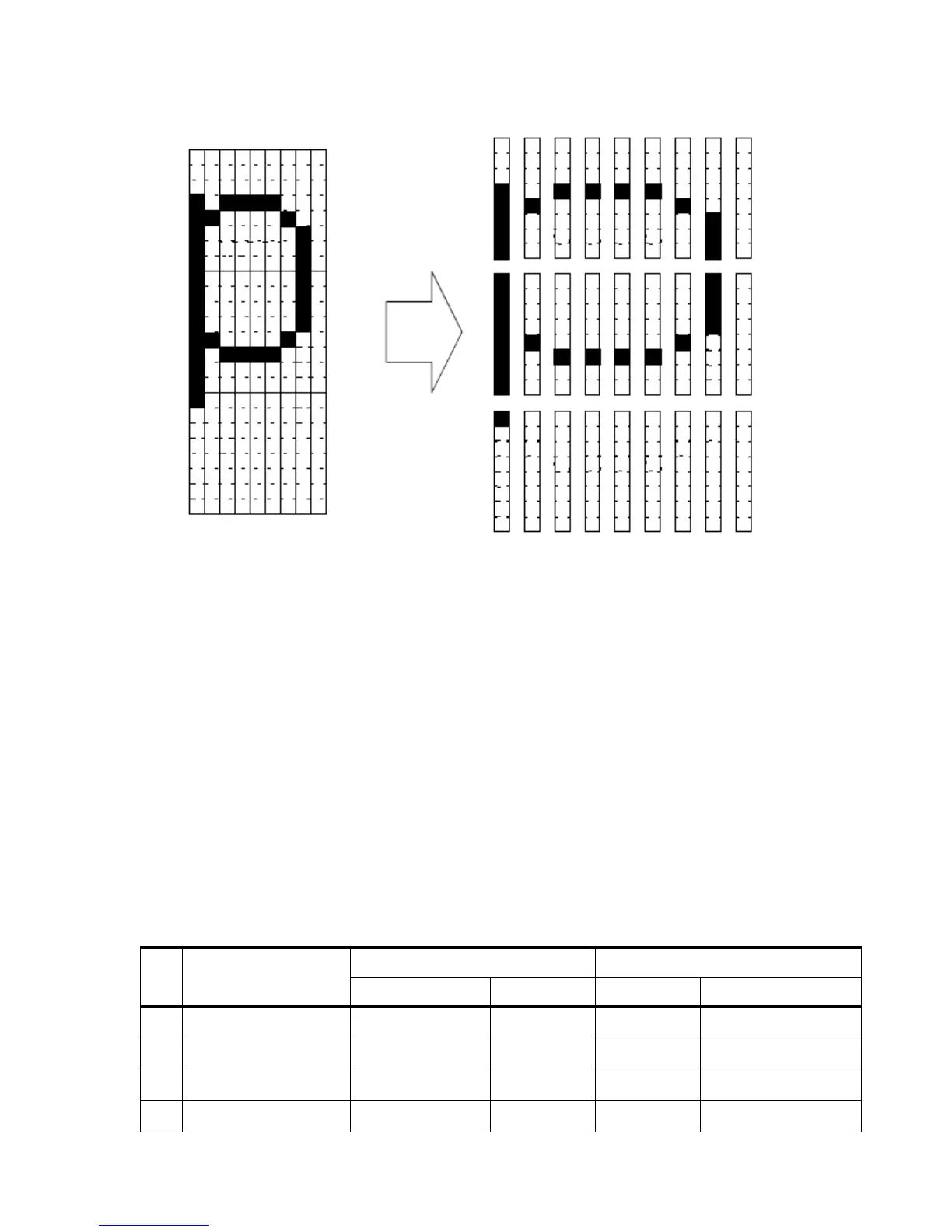

[Description] Selects a bit-image mode using m for the number of dots specified by nL and nH, as
follows:
m
Mode
Vertical Direction
Horizontal Direction
Number of Dots
Dot Density
Dot Density
Number of Data (k)
0
8-dot single-density
8
60 dpi
90 dpi
nL + nH × 256
1
8-dot double-density
8
60 dpi
180 dpi
nL + nH ×256
32
24-dot single-density
24
180 dpi
90 dpi
(nL + nH ×256)3
33
24-dot double-density
24
180 dpi
180 dpi
(nL + nH ×256)3
