Installation and connection
31
MK2430_D00129_02_M_XXEN/09.2019

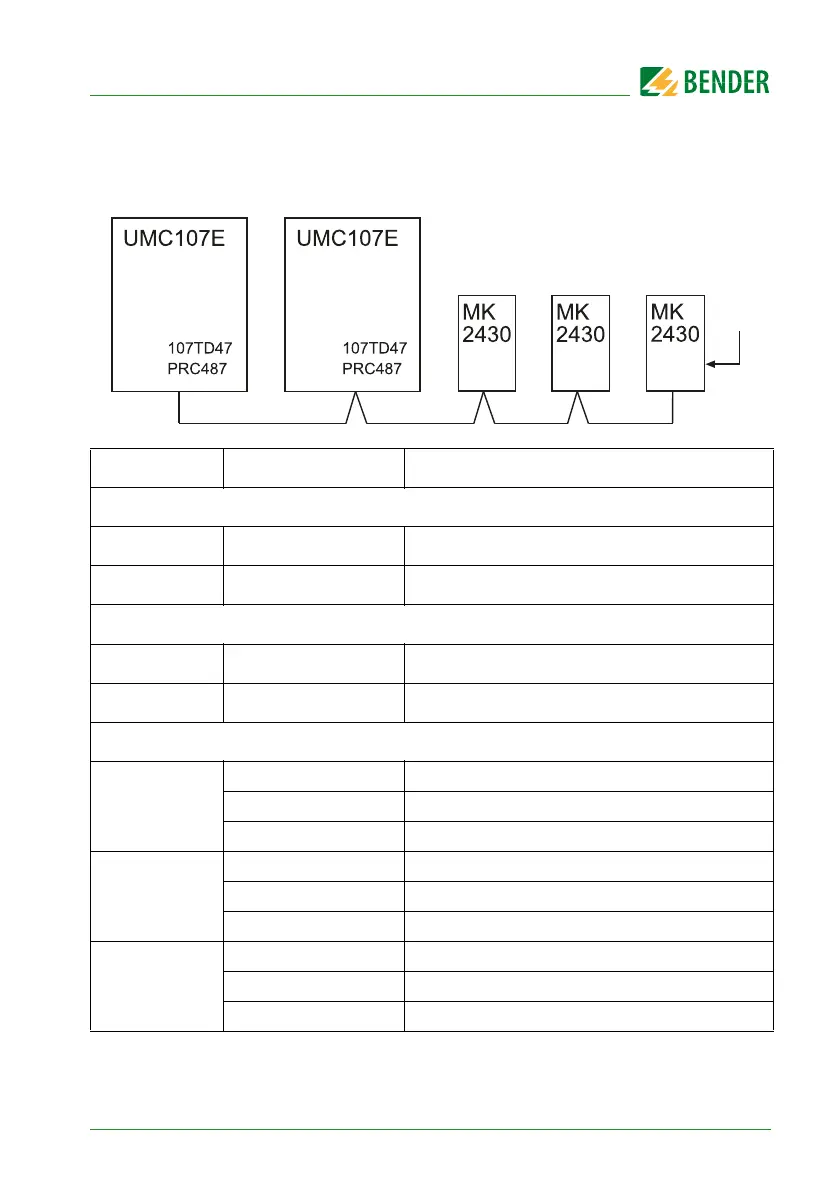

Example 1: Operating theatre or intensive care unit with two IT systems and
three rooms
Device Parameter Address settings
First UMC107E changeover and monitoring module
107TD47
Bus address 3
PRC487
Bus address 4
Second UMC107E changeover and monitoring module
107TD47
Bus address 5
PRC487
Bus address 6
Alarm indicator and test combinations
First
MK2430…
Bus address 1
Test address 3, 5
Alarm address 2, 3, 4, 5, 6, 7
Second
MK2430…
Bus address 2
Test address 3, 5
Alarm address 1, 3, 4, 5, 6, 7
Third
MK2430…
Bus address 7
Test address 3, 5
Alarm address 1, 2, 3, 4, 5, 6
