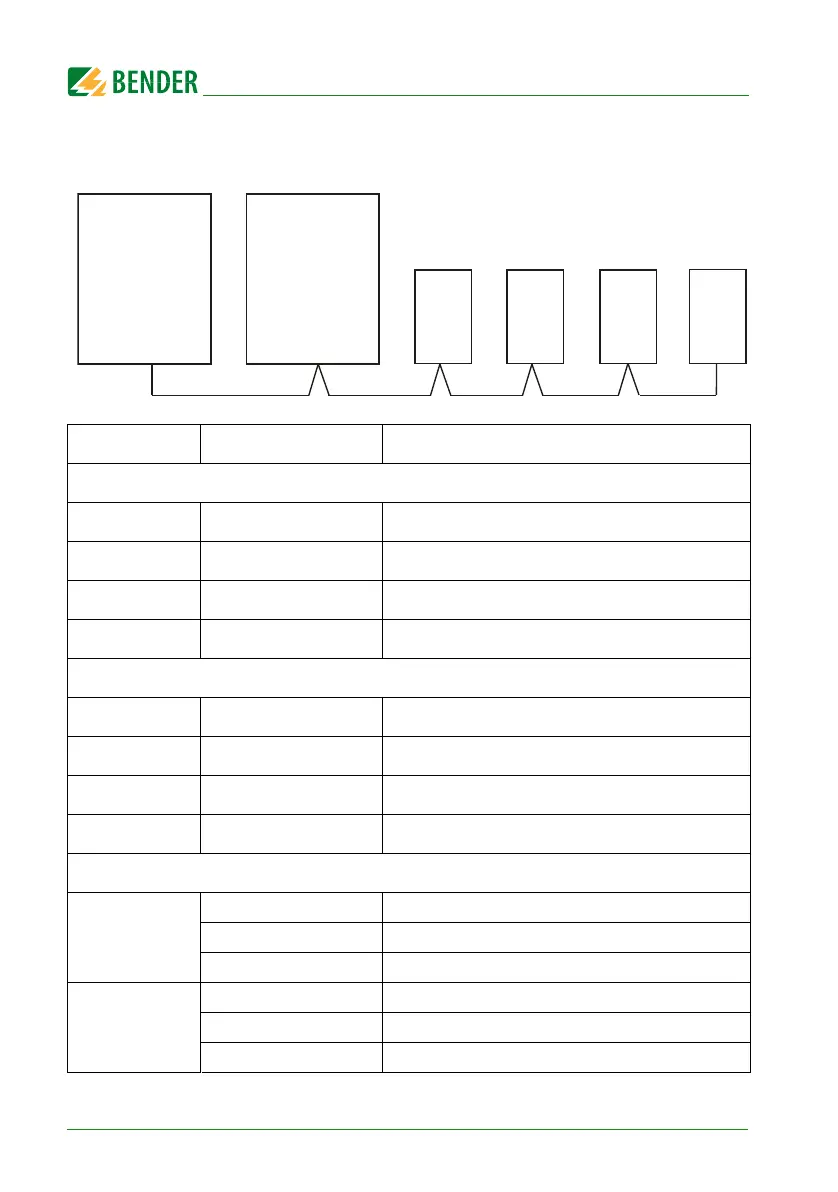

Example 2: Intensive care unit with two IT systems and four rooms
Device Parameter Address settings
First UFC107E changeover and monitoring module
107TD47
Bus address 3
PRC487
Bus address 4
PGH474
Bus address 111
EDS474-12
Bus address 61
Second UFC107E changeover and monitoring module
107TD47
Bus address 5
PRC487
Bus address 6
PGH474
Bus address 112
EDS474-12
Bus address 62
Alarm indicator and test combinations
First
MK2430…
Bus address 1
Test address 3, 5
Alarm address 2, 3, 4, 5, 6, 7, 8, 61, 62, 111, 112
Second
MK2430…
Bus address 2
Test address 3, 5
Alarm address 1, 3, 4, 5, 6, 7, 8, 61, 62, 111, 112
MK
2430
MK
2430
UFC107E
MK
2430
MK
2430
107TD47
PRC487
PGH474
EDS474
UFC107E
107TD47
PRC487
PGH474
EDS474
