Operating from a Keypad
LCD Keypads
The keypad display (see Figure 6) will provide information on the system status.
During ‘Normal’ status, the top line of the display will show the Date and Time,
and the bottom line will show the Armed/Disarmed status of the partitions (refer
to Table 6), and Trouble events and information regarding the Control panel (re-
fer to Table 7).
To view the partition status, press ON: the status of each partition (and
relative descriptions) will be shown at 2 second intervals.
If the Control panel has Zone Alarm or Tamper in memory (LED
aa
aa
a blinking),
the top line will show the zone description (Label).
If Tamper or Alarm conditions are present on more than one zone, the relative
zone descriptions will be shown every 2 seconds.
Table 7 shows how the LCD keypad lights and display signal the system status in
real-time.

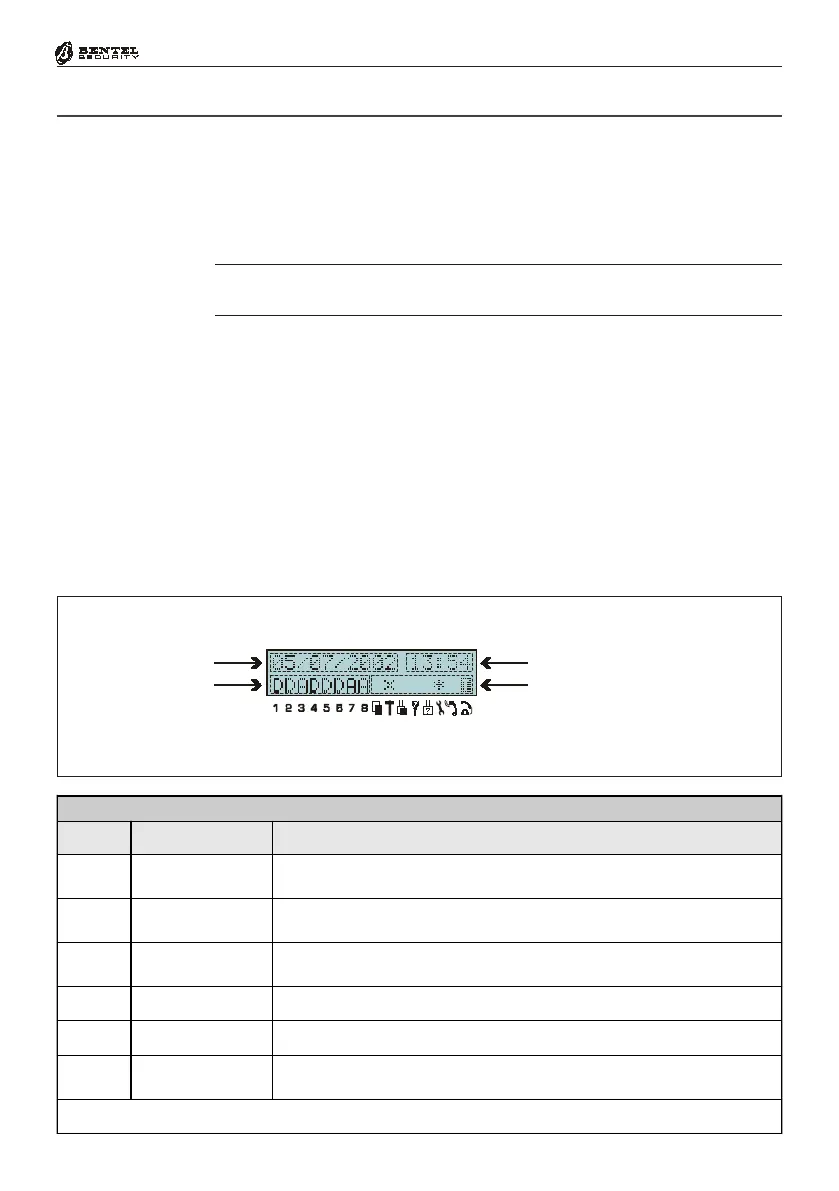

Figure 6 - The display of an LCD keypad during standby status
&"'
$
