Multifunction Control Panel
®®

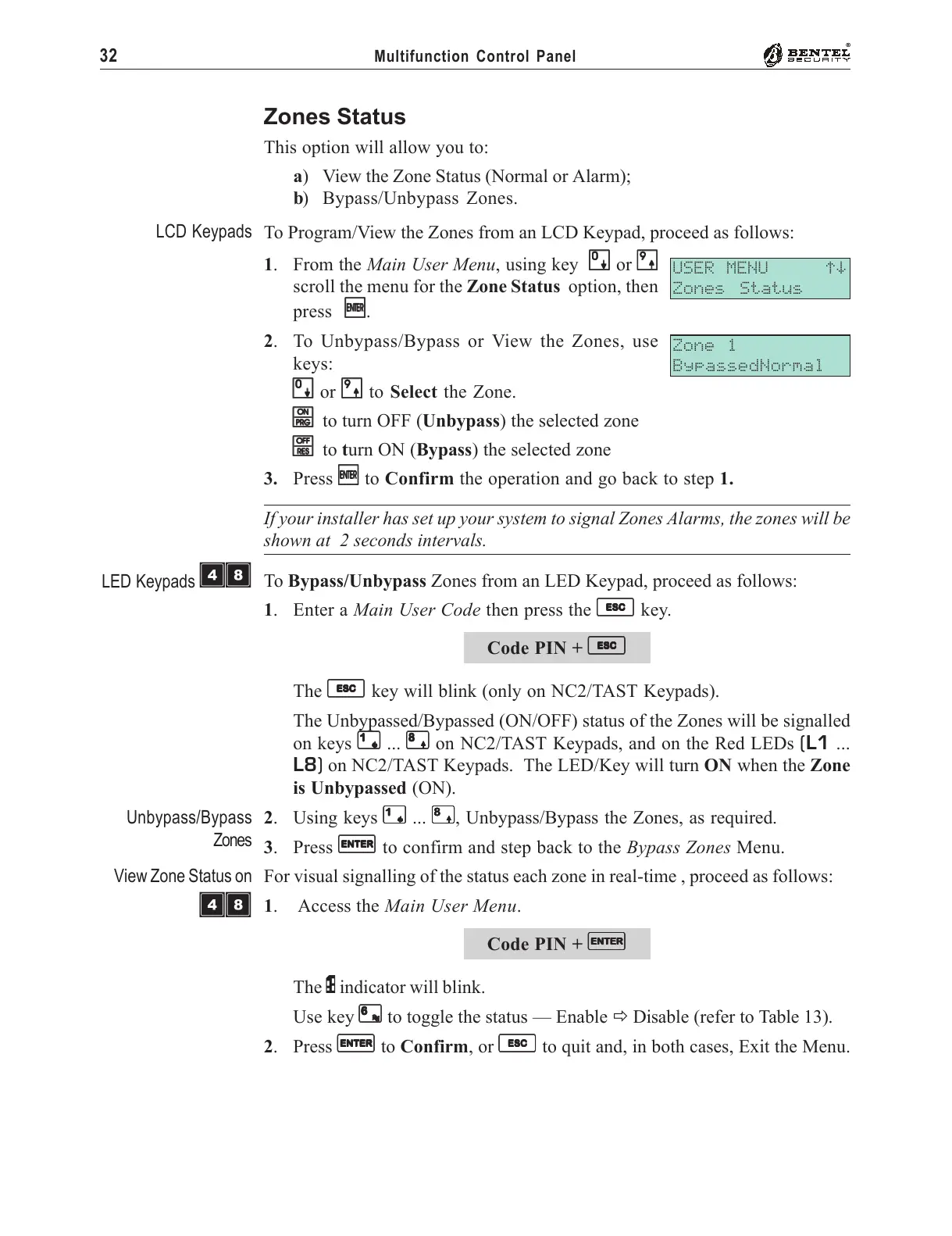

Zones Status
This option will allow you to:
a) View the Zone Status (Normal or Alarm);
b) Bypass/Unbypass Zones.
To Program/View the Zones from an LCD Keypad, proceed as follows:
1. From the Main User Menu, using key
00
00
0 or
99
99
9
scroll the menu for the Zone Status option, then
press
EE
EE
E.
2. To Unbypass/Bypass or View the Zones, use
keys:
00
00
0 or
99
99
9 to Select the Zone.
OO
OO
O to turn OFF (Unbypass) the selected zone
oo
oo
o to turn ON (Bypass) the selected zone
3. Press
EE
EE
E to Confirm the operation and go back to step 1.
If your installer has set up your system to signal Zones Alarms, the zones will be
shown at 2 seconds intervals.
To Bypass/Unbypass Zones from an LED Keypad, proceed as follows:
1. Enter a Main User Code then press the
ee
ee
e key.
Code PIN +
ee
ee
e
The
ee
ee
e key will blink (only on NC2/TAST Keypads).
The Unbypassed/Bypassed (ON/OFF) status of the Zones will be signalled
on keys
11
11
1 ...
88
88
8 on NC2/TAST Keypads, and on the Red LEDs (L1 ...
L8) on NC2/TAST Keypads. The LED/Key will turn ON when the Zone
is Unbypassed (ON).
2. Using keys
11
11
1 ...
88
88
8, Unbypass/Bypass the Zones, as required.
3. Press
EE
EE
E to confirm and step back to the Bypass Zones Menu.
For visual signalling of the status each zone in real-time , proceed as follows:
1. Access the Main User Menu.
Code PIN +
EE
EE
E
The P indicator will blink.
Use key
66
66
6 to toggle the status — Enable " Disable (refer to Table 13).
2. Press
EE
EE
E to Confirm, or
ee
ee
e to quit and, in both cases, Exit the Menu.
USER MENU áâ
Zones Status
Zone 1
BypassedNormal
LCD Keypads
Unbypass/Bypass
Zones
View Zone Status on
ÌÐ
LED Keypads ÌÐ
