Cables
14-3
812 cable
Description
812 cable provides all the connections required between a Controller
and a door in one easy-to-install cable. It was designed for access
control systems, but may be used for other applications.
812 cable has three separately screened twisted pairs with drain
wires (two pairs of 22AWG/0.38mm
2
, one pair of 20AWG/0.5mm
2
),
nine single cores (22AWG/0.38mm
2

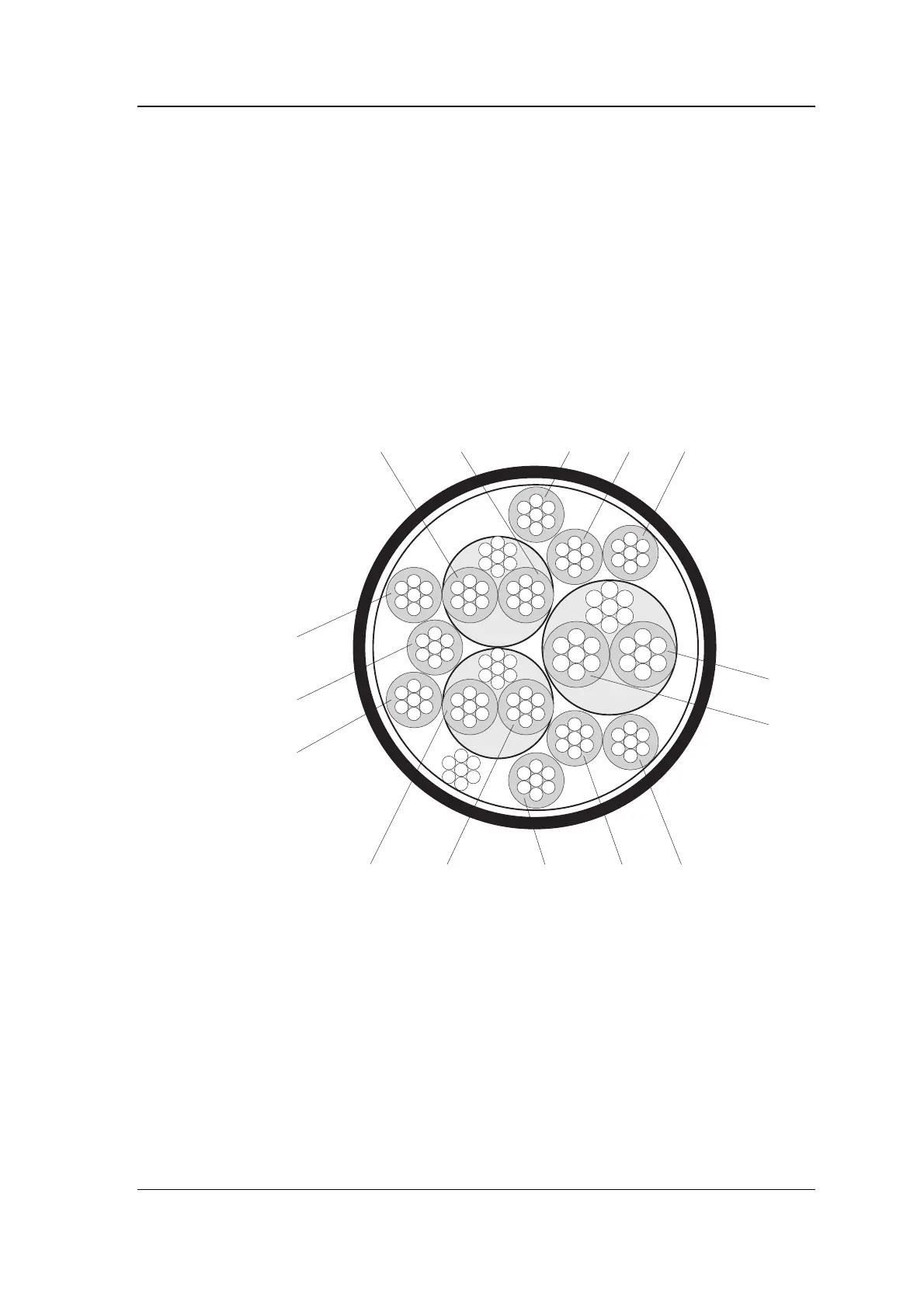

) and an overall screen with drain
wire. The following diagram shows the cable in cross section.
Black
Green
White
BrownWhiteBlack
Green
Yellow
Red
Blue
Orange Purple
Black
RedBlack
