The maximum head load must not exceed a capacity of 20 W.
CAUTION
Exceeding the setpoint temperature.
Damage to the cultures.
∅ Do NOT exceed the maximum head load of 20 W.
∅ Do NOT connect equipment with a nominal capacity > 20 W.
Heat emission of electrical devices connected inside the CO
2
incubator may modify the
temperature range.
The maximum load must not exceed 3 Amp.
WARNING
Overload of contacts.
Damage to contacts and connection socket.
Electrical hazard.
Danger of death.
∅ Do NOT exceed the maximum load of 3 A.
∅ Do NOT connect any devices with a nominal current > 3 A.
The interior socket’s voltage is turned off at the chamber controller via operation line (chap. 7.3, 9.7.3,
10.6.5).
Turning off the chamber at the main power switch also switches the interior socket voltage-free.

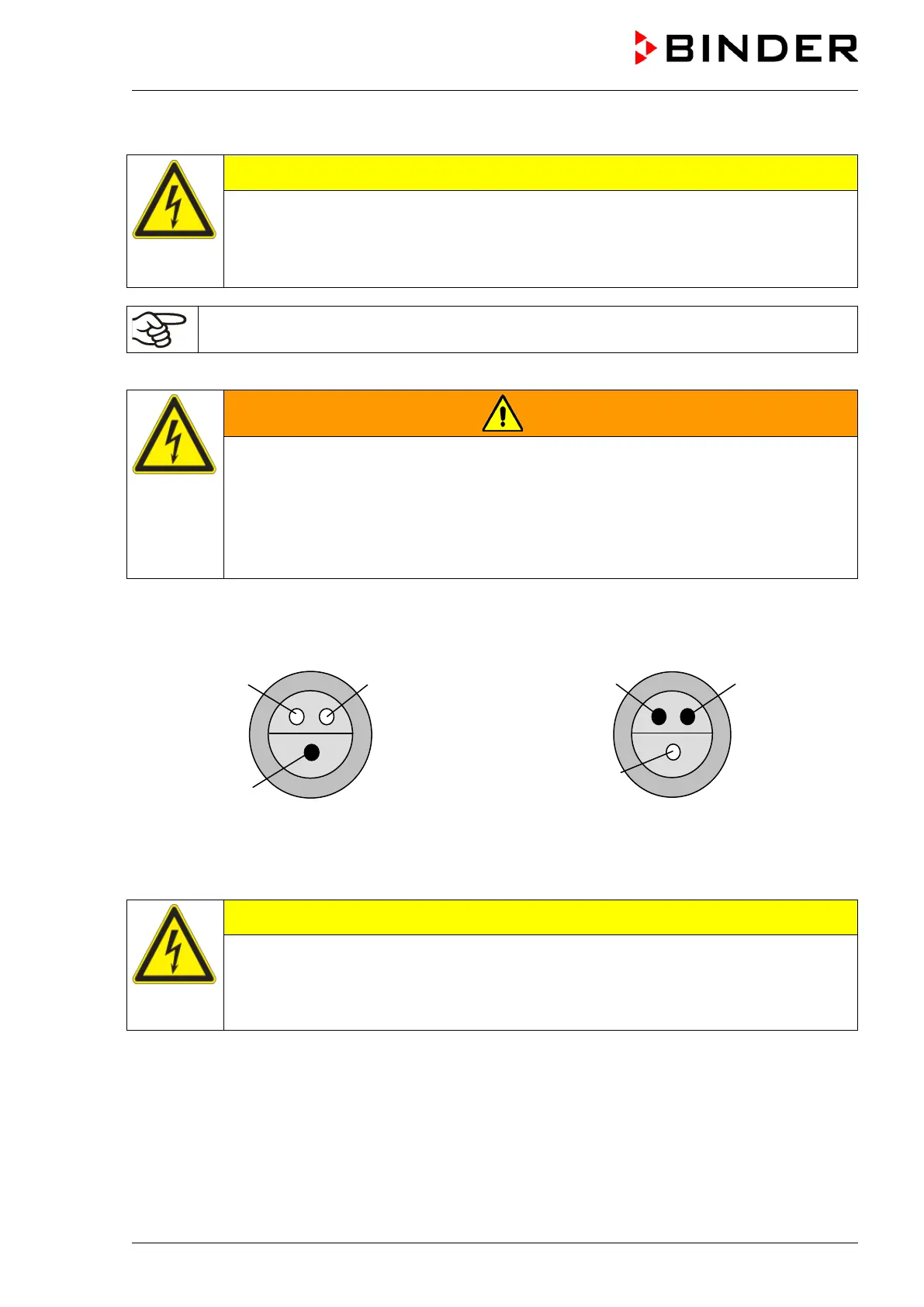

Figure 23: Interior socket (G) (front view) Figure 24: Supplied plug (front view)
Electrical data socket and plug: IP system of protection 65, 230 V 1N ~ 50-60 Hz
CAUTION
Risk of short circuit.
Damage to the chamber.
Use delivered plug only (IP protection type 65).
If the socket is not used, close it with the waterproof lid.
When inserting a heat load into the inner chamber by introducing electrical devices such as shakers or
rollers, the ambient temperature of the incubator must not exceed 25 °C / 77°F. Otherwise, temperature
control to 37 °C / 98.6°F cannot be assured. When operating electrical devices inside the incubator,
always check the desired incubation temperature before introducing any cells.
