CB (E7) 06/2018 Page 39/174
4.7 Handling and aligning the divided inner door, gas proof (optional
equipment)
Rubber profile gasket of
individual glass door of the
divided inner door
Hinge of the set-in divided inner
door, with elongated holes to
align the inner door
Measuring access port

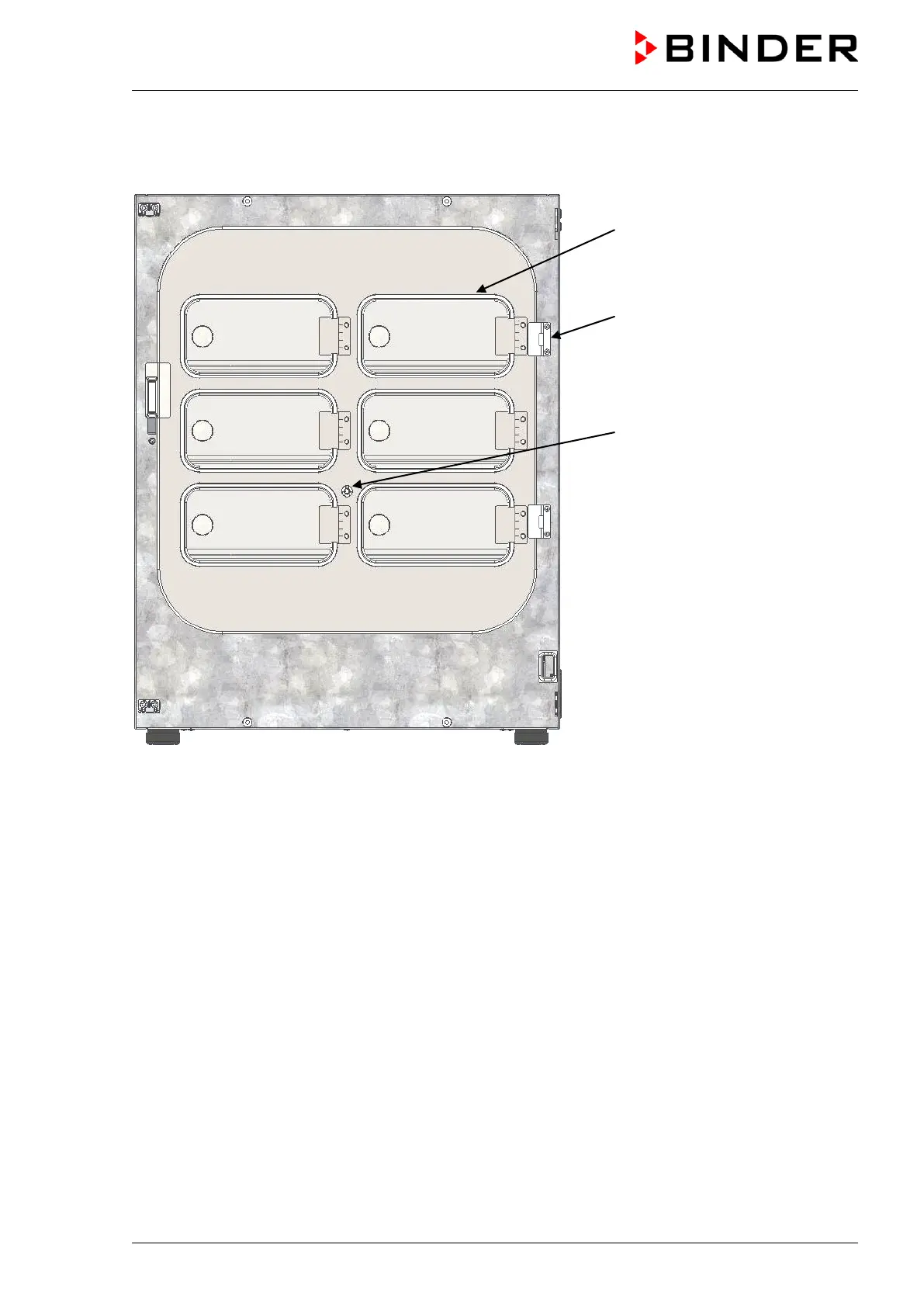

Figure 15: Divided inner door, gas proof (example: CB 170)
• Pull the handles to open each of the individual glass doors. Do not press too hard while closing them
to avoid pushing the doors through the gasket into the inner chamber.
• The rubber profile gaskets of the individual glass doors are easy to replace.
• If the divided inner door is not in an aligned position, fasten the hinge screws in the elongated holes of
the hinge to align it. Align the door and operate the locking smoothly.
