11. Notification and alarm functions
11.1 Notification and alarm messages overview
11.1.1 Notifications
Notifications are indicated by information icons displayed in the screen header in Normal display
An information icon serves as an indication of a certain condition.
If this condition persists, in some cases an alarm will be triggered after a fix or configurable interval. As
long as the condition persists, the information icon therefore continues to be displayed also in state of
alarm. If during alarm the conditions ends, e.g., if during a tolerance range alarm the actual value returns
to within the tolerance range, the information icon disappears, whereas the alarm will continue until
manual acknowledgement.
Press the flash icon next to the information icon to access the corresponding text information.

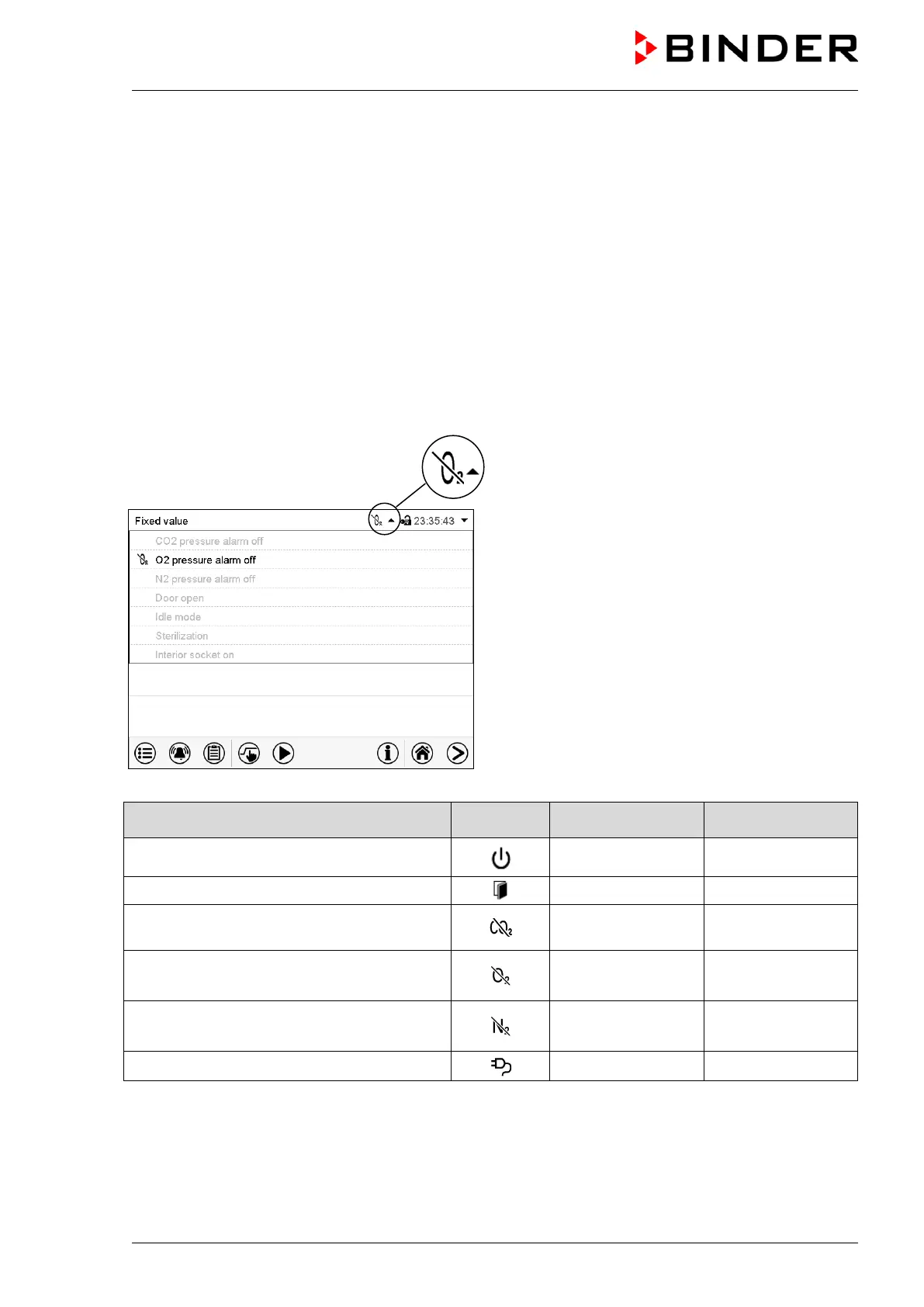

Normal display showing the text information.
The currently valid information texts are
highlighted in black (example: “O2 pressure
alarm off“)
Condition
Information
icon
Text information
Start after
condition occurred
The controller is in Idle mode (chap. 5.4). “Idle mode” immediately
Chamber door open “Door open” immediately
CO
2
pressure alarm deactivated
“CO2 pressure
alarm off”
immediately
Chamber with O
2
control:
O
2
pressure alarm deactivated
“O2 pressure alarm
off”
immediately
Chamber with O
2
control:
N
2
pressure alarm deactivated
“N2 pressure alarm
off”
immediately
Interior socket (option) activated “Interior socket” immediately
Notifications are not shown in the event list.
