Binder CB 170 - Inner Chamber

CB (E7) 06/2018 Page 21/174
2.2 Inner chamber

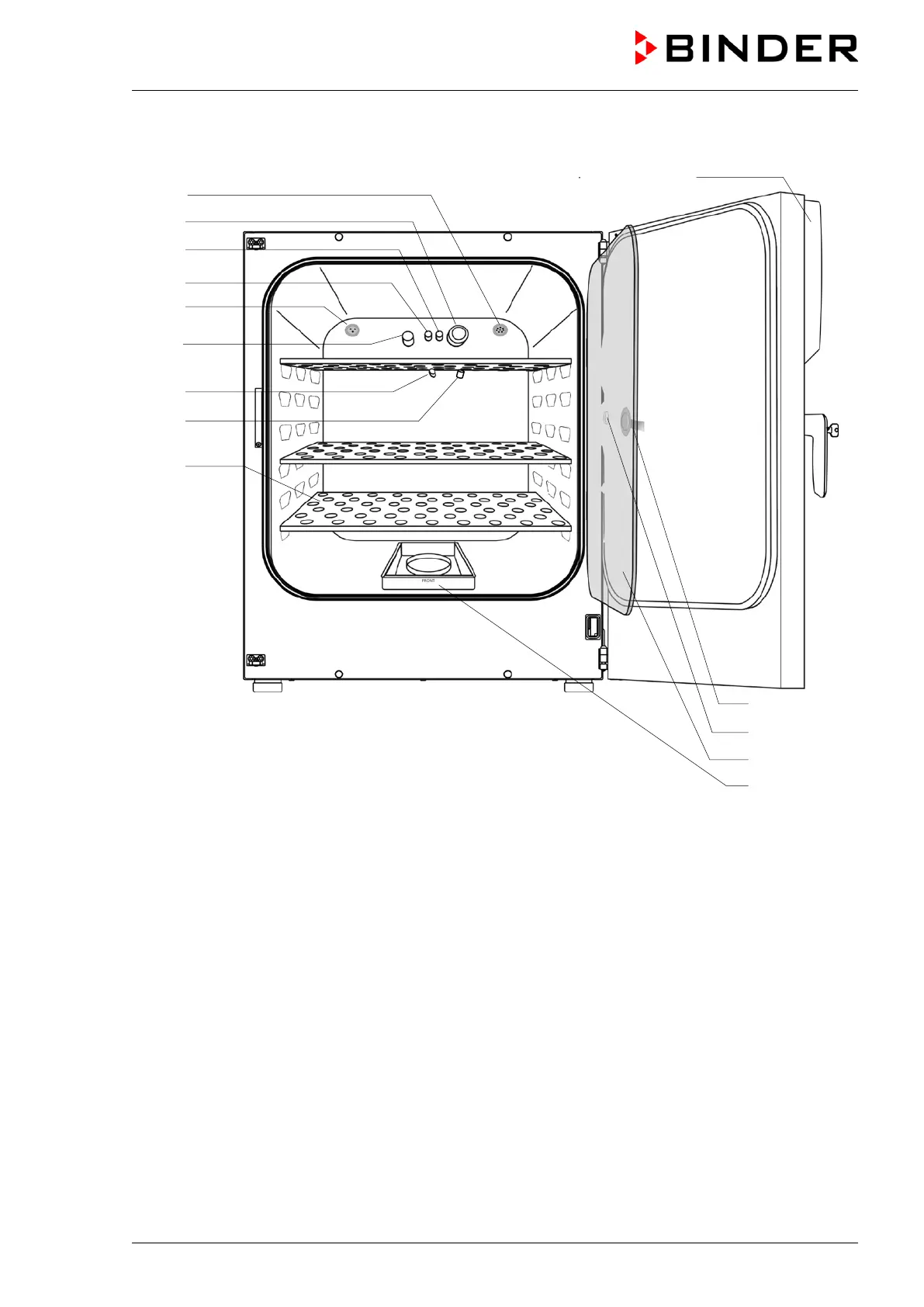

Figure 4: CB 170 with O
2
control and options
(A) Instrument panel with microprocessor program controller MB2, indicating temperature, CO
2
, O
2
(chamber with O
2
control) and humidity (chamber with active humidification)
(B) Connection socket for extra-low voltage supply (option, chap. 18.6)
(C) CO
2
sensor
(D) Gas mixing head CO
2
(D2) Additional gas mixing head O
2
/ N
2
(chamber with O
2
control)
(E) Pt 100 temperature probe
(F) O
2
sensor (chamber with O
2
control)
(G) Humidity sensor (chamber with active humidification)
(H) Internal socket 230V (max. 3 A) (option, available via BINDER INDIVIDUAL Customized Solutions,
chap. 18.3)
(I) Perforated shelves, made of stainless steel
(J) Glass door handle
(K) Measuring access port
(L) Inner glass doors
(M) Permadry™ water pans
(K)
(
J)
(
L)
(M)
(A)
(B)
(C)
(D)
(
D2)
(
H)
(F)
(E)
(
G)
(I)
