Operation Operating instructions eS10
36 38034911005 en
5
5.10.1 Working with tendency control
In order to work with tolerance control the following requirements are necessary:
1. Input of desired operating mode for tendency control
– Tolerance weighed (step 50/1)
– %± tolerance (step 50/2)
– Tolerance manual input (step 50/3)
2. Input of values for target weight and upper and lower tolerance limit.
Upper and lower tolerance limit must not be symmetrically to the target value.
3. Assignment of <F1> key with function tolerance check, see page 26.
Afterwards, the tendency control can be started via key <F1>.
Example
The following operating data for the tenden-
cy control was manually entered:
Target value: 1.000 kg
Lower limit value: 0.980 kg
Upper limit value: 1.020 kg

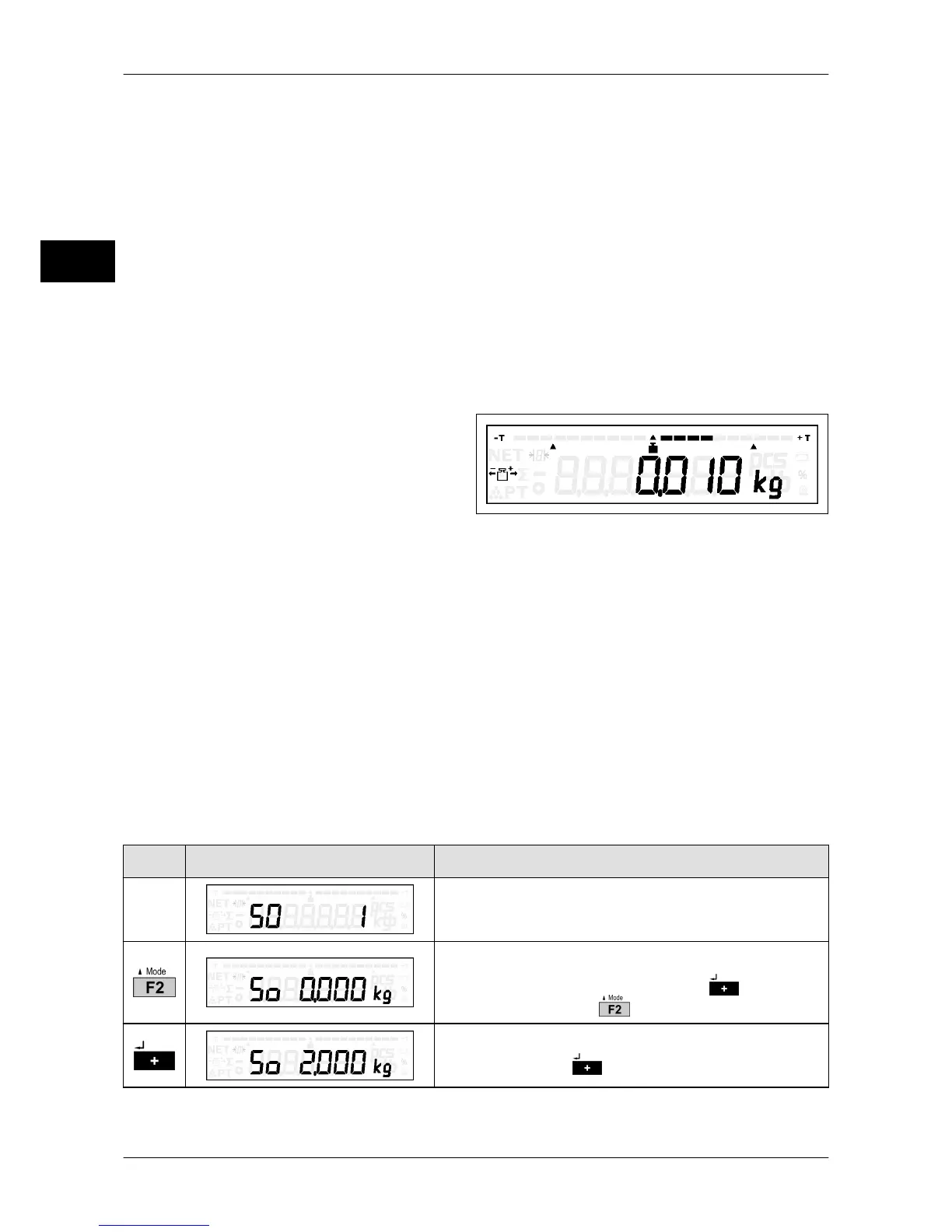

Fig. 16: Weighing against zero
This display means that the current weight value is 10 g above the target value.
Since the measured value is located in the middle between target value and upper toler-
ance limit, the bar scale reaches approx. until the middle between indicator of the target
value (middle triangle under bar graph) and indicator of upper limit value (right triangle).
If the measured value is above the upper tolerance limit, by about 1022 g, the display of
the bar graph passes the associated indicator (right triangle). Same applies when target
value and lower limit value are not reached.
5.10.2 Enter target value and tolerance limits
Tolerance weighed
Display only if 50 = 1
Key Display presentation Process description
Tolerance weighed.
Current target value is displayed.
Change target value weighed with or call up
next parameter with .
Change value: Place new target weight on scale
and confirm with
.
