Operating instructions eS10 Service menu
38034911005 en 85
9
Special case single division scale 30000/10 g:
The device expects the input of the weighing range (steps 22, 25, 27) in
dimension [kg] or [lb]. The device expects the input of the digital incre-
ment (steps 23, 26, 28) in dimension [g] or [mlb].
If scales have a weighing range in dimension [g] but not [kg], select the
digital increment by factor 1000 higher.
Example: Desired setting is 30000 g with scale interval 10 g.
Input: Step 22 = 30000, step 23 = 10000, step 29 = 0.
9.3 Scale calibration menu
Slide switch to calibrated. No calibration possi-
ble.
The calibration process must be carried out with particular care.
You must first remove the verification seal to invalidate the verification
of the scale.
Menu call-up only via restart, see page 27.
Save data in EEPROM: Press
key.

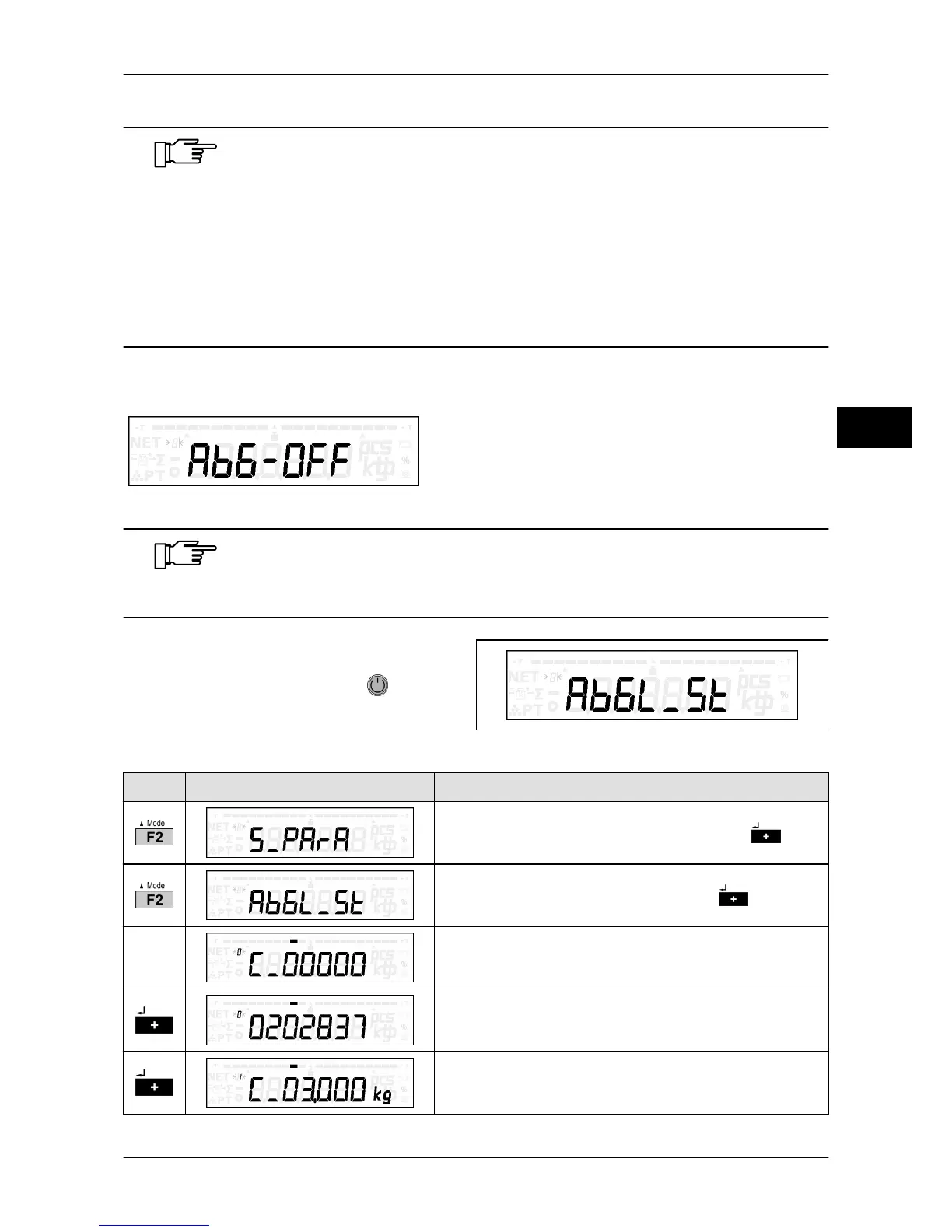

Fig. 26: Display: "AbGL_St"
Key Display presentation Process description
Call up service parameters and confirm with .
Select calibration start and confirm with .
Calibration point 0 preload.
Apply preload.
Display of measured value for calibration point 0.
First calibration point at 15 kg weighing range.
Example: 3 kg
