Getting Started 13

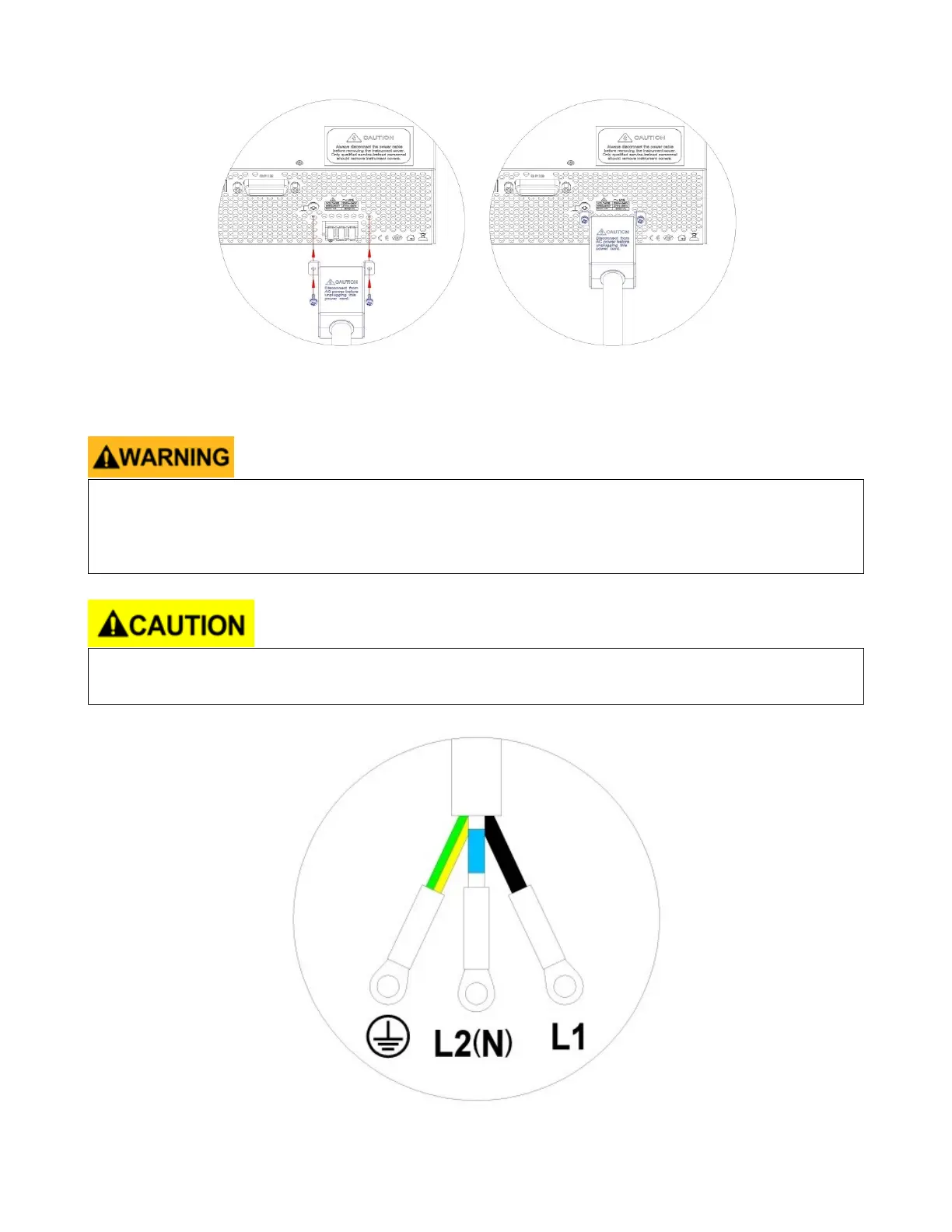

Figure 2.1 AC Power Connection Diagram
Refer to the descriptions below to connect the other end of the AC power cord to the AC distribution panel.
Do NOT plug the AC power cord into the wall socket prior to connecting ALL three AC power wires to the rear
panel and securely mount the safety metal housing over the input receptacle. Doing so may create a shock hazard.
Connection of this power supply to an AC power source should be made by a qualied electrician or other qualied
personnel. Incorrect wiring may damage the power supply or cause a re hazard
Connect the three terminals black to line1 (L1), white to line2 (L2) or neutral (N), and green to ground (G) on the
other end of the power cord to your AC distribution panel.
Figure 2.2 AC Power Cord
