7.1.2 USBTMC
The USBTMC driver must be installed to use the USBTMC interface. The driver is included in the VISA software
download and can also be found on our website. bkprecision.com (We recommend using NI-VISA, which can be
downloaded at www.ni.com ).
7.2 RS232
To congure the power supply for RS232 operation:
1. From the menu, select Communication and press .
2. Press button four times until RS232 is select.

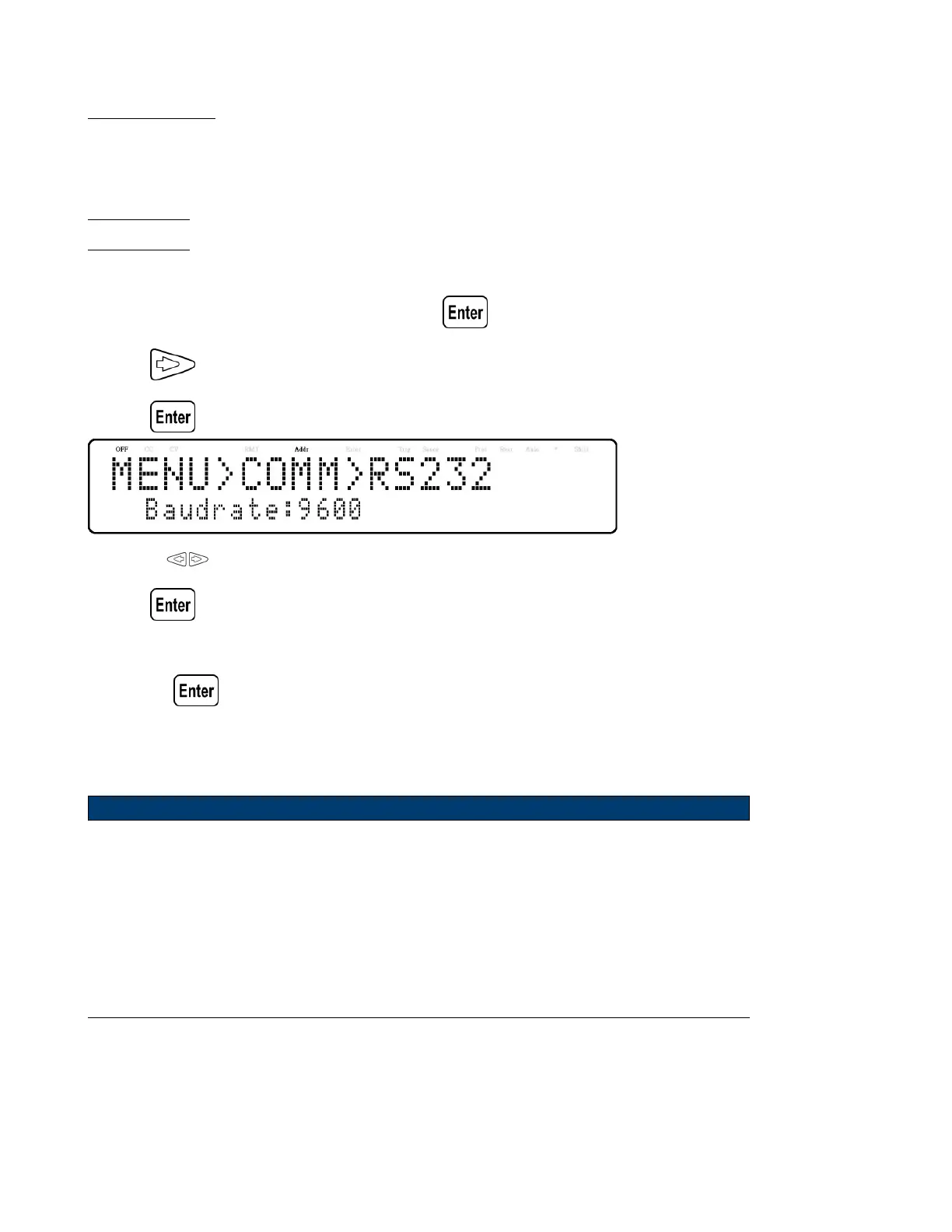

3. Press to congure the settings for RS232. The following display will be shown:
4. Use the keys to select between each setting.
5. Press to congure the corresponding settings.
– To change the baud rate or any of the parameter settings, use the rotary knob.
– Press to save each setting.
– Once the setting have saved the display will return to the RS232 menu.
The parameters available for each setting are listed below.
Baud rates: 9600, 19200, 38400, 57600
Note:
The default settings are 9600, None/8 bits, 1.
* The RS232 interface does not have ow control mechanism. The programmer should be aware of
this limitation and notice the command process time of the power supply. If the remote commands
are sent too fast to the power supply, the internal buer may overrun and cause a communication
error. Therefore, a delay between commands to let the power supply have enough time to process
them is mandatory. All serial settings must match the settings congured on the PC in order for
communication to link successfully.
