Calibration 60
These options are only accessible in the calibration menu. The following calibration procedures assume the operator is in
the CAL menu.
9.1 Voltage Calibration
To perform a voltage calibration:
1. Connect the DMM to the output of the power supply as shown in the gure below:

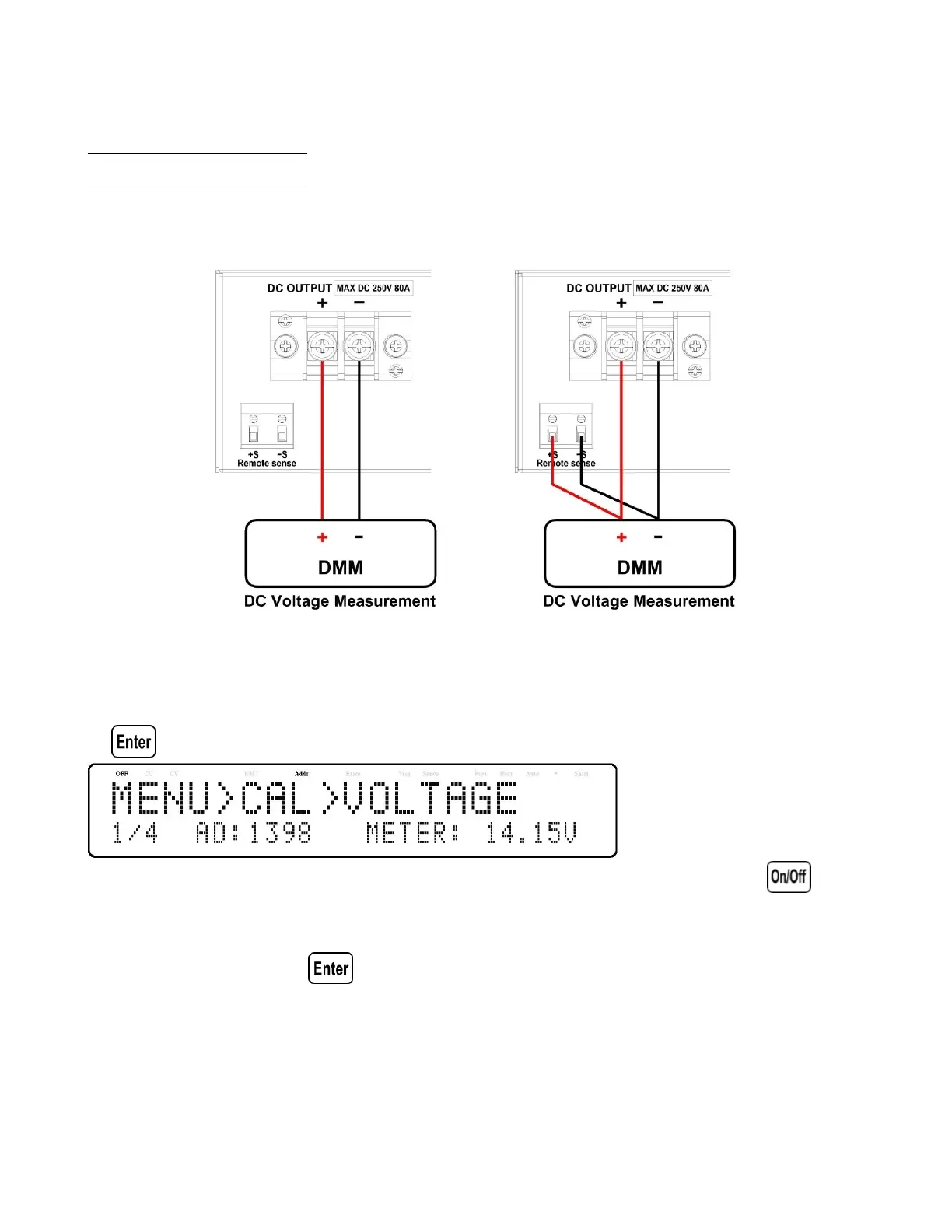

Figure 9.1 Voltage Calibration Diagram
When only calibrate local sense, connect the DMM to the output. When need to calibrate remote sense, connect the
DMM to the output and remote sense.
2. Set the DMM to a DC voltage measurement. Select the VOLTAGE parameter in the Calibration menu and press
. The following will be displayed:
The 1/4 signies there are 4 points to be calibrated, and the current calibration point is 1, and press to start
calibration.
3. When METER parameter is blinking, input the voltage reading from the DMM in the METER parameter by using
the numeric keypad and press .
4. Repeat this procedure by entering the meter readings for points 2 – 4.
