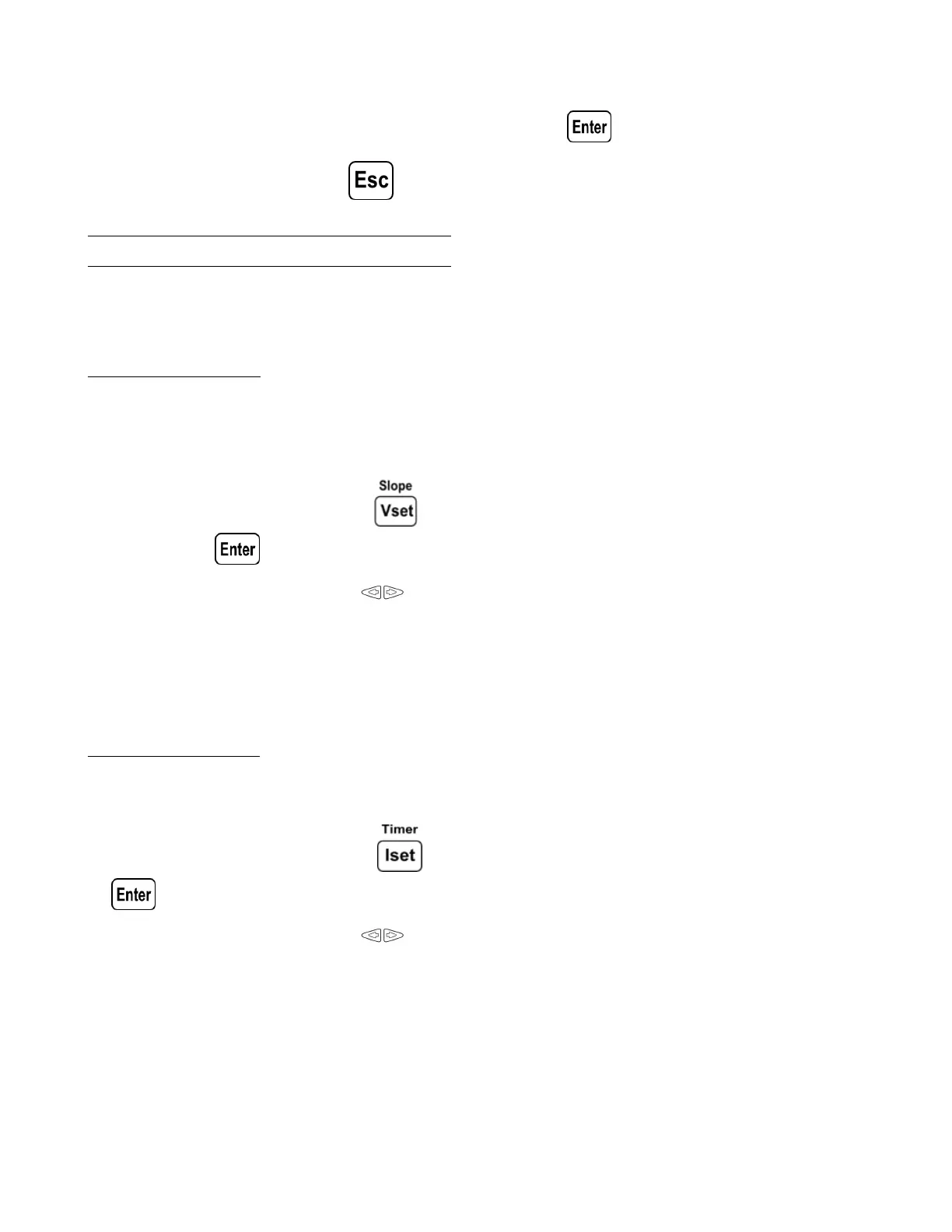

Front Panel Operation 20
6. There may be parameters or options to select within each menu item. Follow the same instructions as described in
the previous steps to select them. To save changes to a setting, press .
7. To exit the menu at any time, press until the normal.
3.3 Congure Voltage/Current Output
Voltage and current can be set from the front panel. Remote sense is also available on the rear panel for voltage
compensation at the output.
3.3.1 Setting Voltage
Follow the steps below to set the output voltage:
1. From the normal front panel display, users can use either the voltage adjust knob or the numeric keypad to enter the
setting voltage.
2. If entering using numeric keypad, press rst so that the cursor selects the voltage display. Then, enter the
value and press to set the voltage.
3. To change the cursor position use the keys. The voltage can be adjusted with the rotary knob.
When output is ON, the user can use the rotary to adjust the voltage value when the output is in constant voltage (CV)
mode. The output value will change simultaneously with the adjusted value. This is so called on-the-y function that
allows user to easily change the output value if the test is needed.
3.3.2 Setting Current
1. From the normal front panel display, users can use either the current adjust knob or the numeric keypad to enter the
setting current.
2. If entering using numeric keypad, press to select the current parameter. Then, enter the value and press
to set the current.
3. To change the cursor position use the keys. The current can be adjusted with the rotary knob.
When output is ON, the user can use the rotary to adjust the current value when the output is in constant current (CC)
mode. The output value will change simultaneously with the adjusted value. This is so called on-the-y function that
allows user to easily change the output value if the test is needed.
