Current Program
Under voltage mode, the user may control the full scale current output value through Pin 10, by inputting a voltage level
of 0-5V (0-5 V / 0-5 kΩ mode) or 0-10V (0-10 V / 0-10 kΩ mode) as shown below.

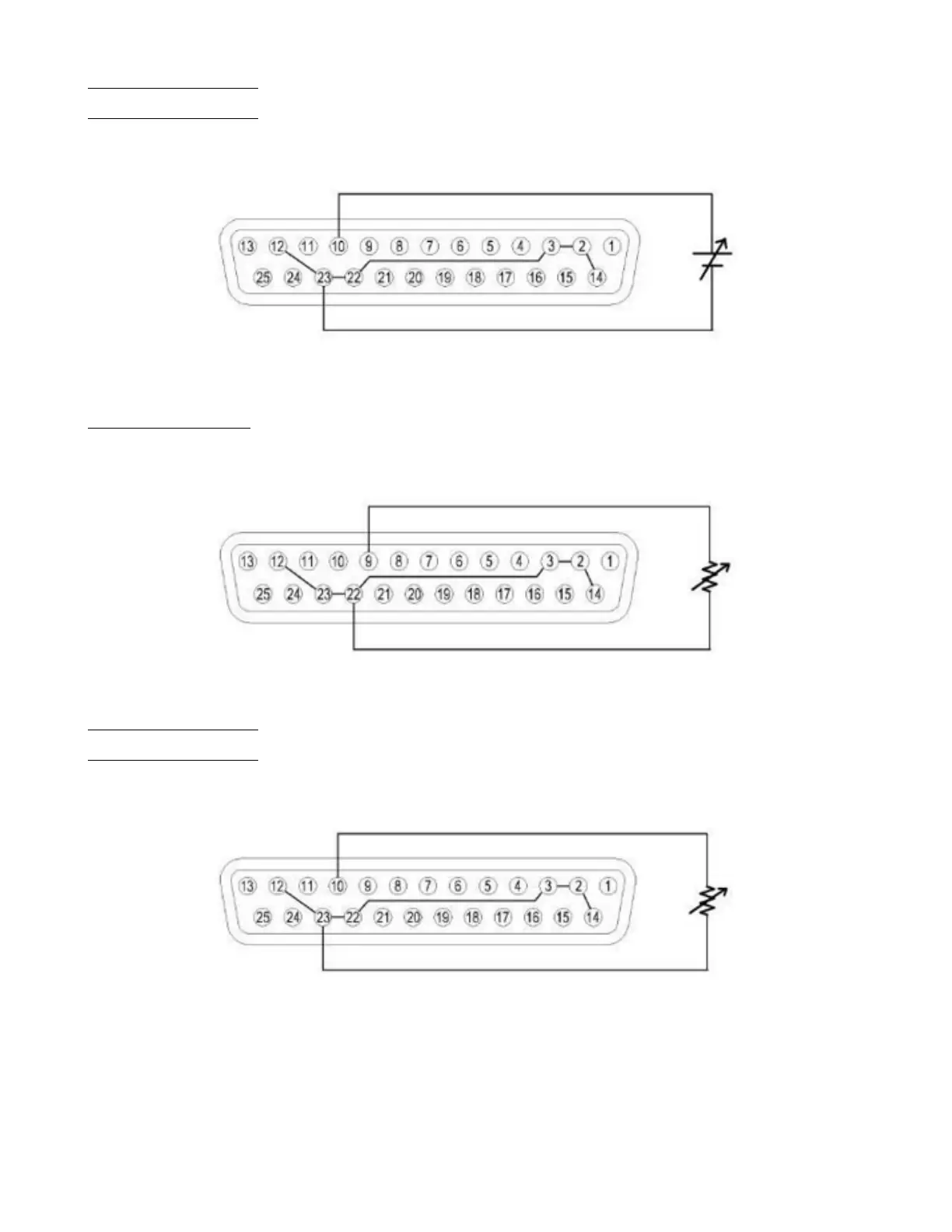

Figure 3.5 Voltage Mode Current Program: 0-5 V or 0-10 V
3.7.1 Resistor Mode
Under resistor mode, the user may control the full scale voltage output value by connecting a resistance value of 0-5 kΩ
(0-5 V / 0-5 kΩ mode) or 0-10 kΩ (0-10 V / 0-10 kΩ mode) between Pin 9 and Pin 22 as shown below.
Figure 3.6 Voltage Mode: 0-5 V or 0-10 V
Current Program
Under resistor mode, the user may control the full scale current output value by connecting a resistance value of 0-5 kΩ
(0-5 V / 0-5 kΩ mode) or 0-10 kΩ (0-10 V / 0-10 kΩ mode) between Pin 10 and Pin 23 as shown below.
Figure 3.7 Resistance Mode Current Program: 0-5 V or 0-10 V
