Communication
Conguration
47
LAN
Conguration
The
LAN
CONFIG
page
provides
the
Hostname,
Description,
IP
Address,
IP
A
ddress,
Netmask,
Gatewa
y
,
DNS,
passw
ord,
Lan
conguration,
initialize,
Restore
F
actory
Settings.

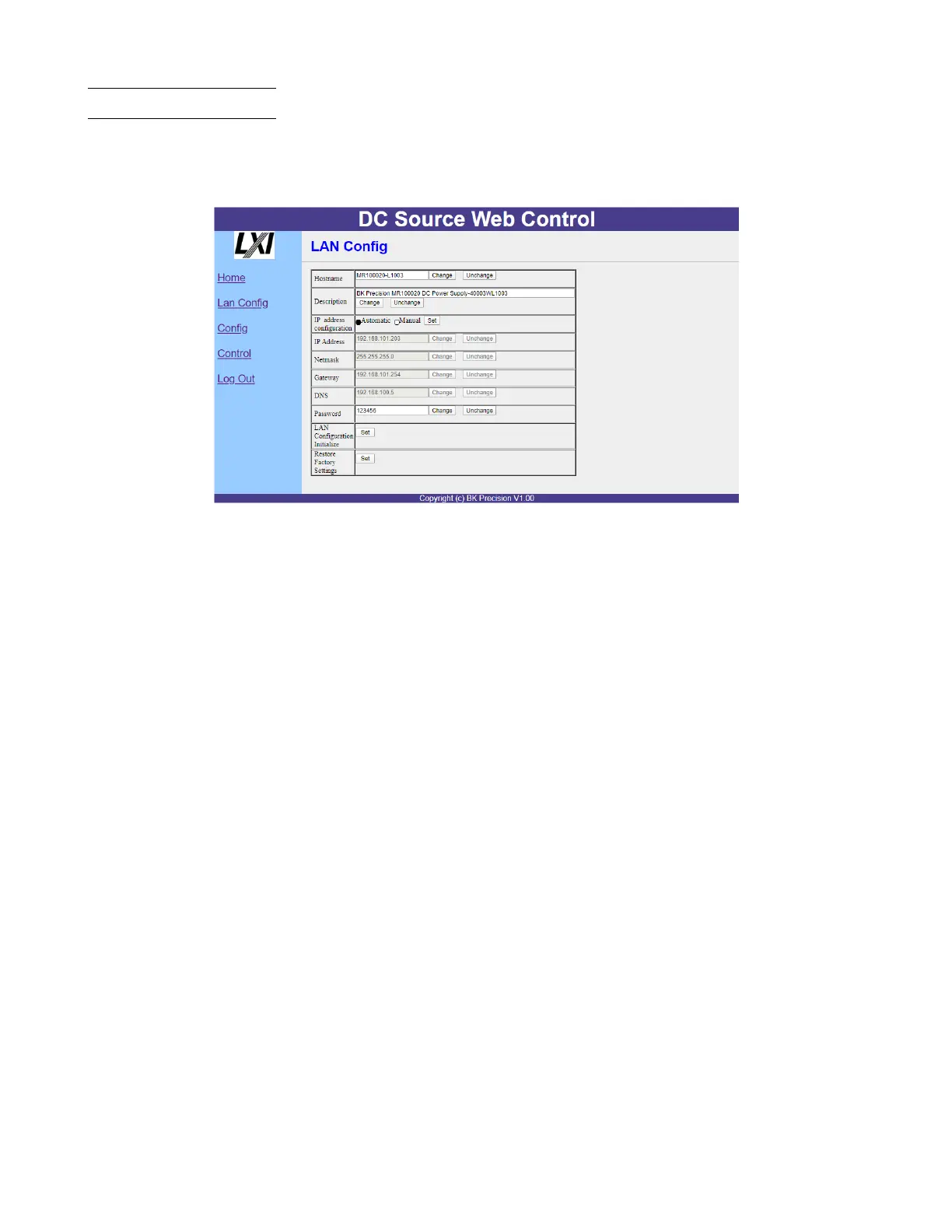

Figure
7.3
LAN
Conguration
46
48
