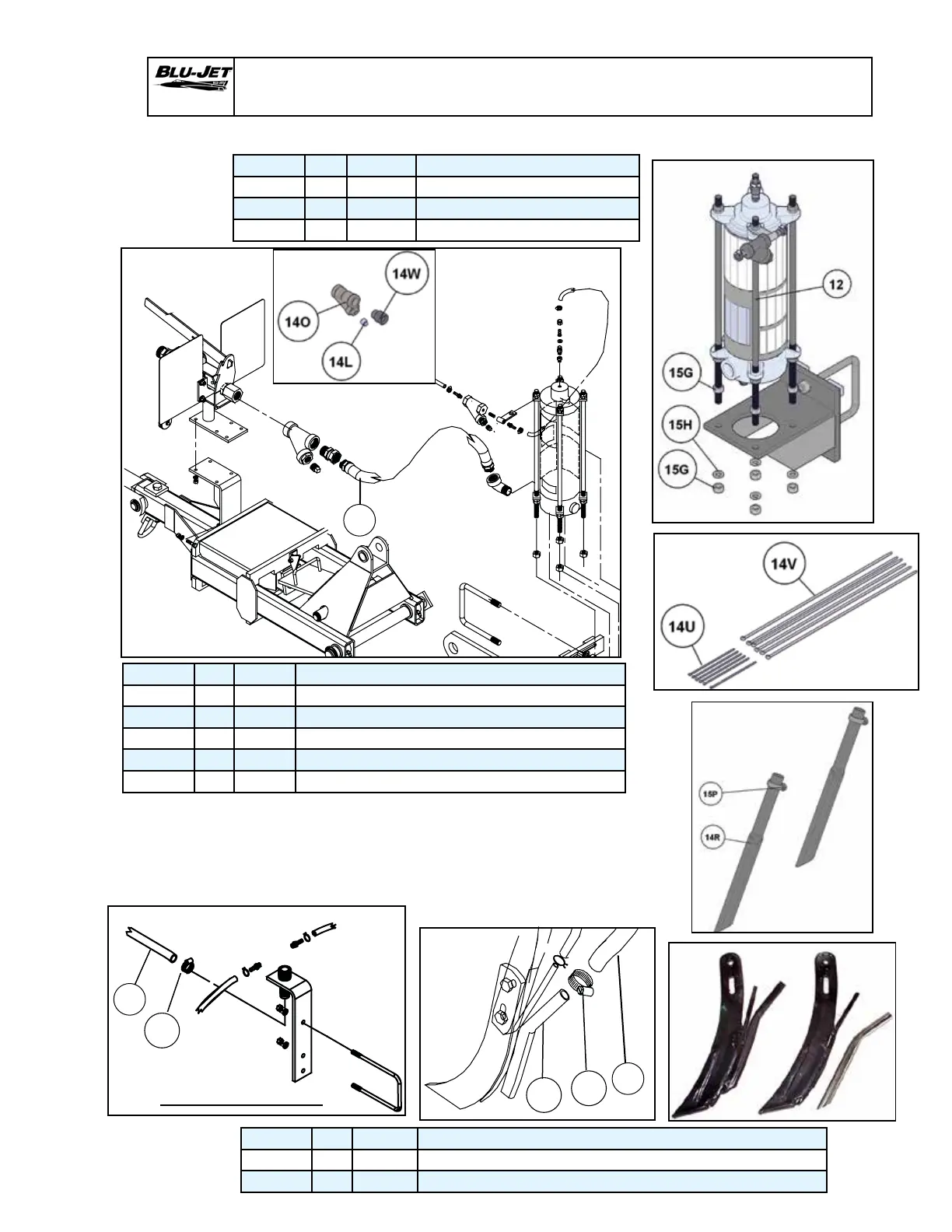

GDI 200 With Pump Distribution (Rear Mount)
Parts (Bundle 20200119)
Ref. Part No. Req. Description
19. CP25025 2 E.V.A. Hose 3/4” 15 Ft.
20. CP2895 1 Hose, NH3, 1 1/4” NPT 60”High
Pressure, Crimped
21. CP3001 1 Hose, EVA, 1” Reinforced x 180”
(15’) With Tie & Tag
19
15P
14P
21
15P
Part of Distribution Bundle
20
BOM ID Qty Item No Description
12 1 CCP2755 HEAT EXCHANGER ASSEMBLY
15G 8 BP3038 NUT, HEX, 5/8”-11, GRADE 2
15H 4 BP3039 WASHER, LOCK, 5/8”, PLATED
BOM ID Qty Item No Description
14L 1 CP2479 PLUG, SQUARE HEAD, 3/4” NPT
14O 1 CP2870 STRAINER, NH3, 1-1/4” FPT 20 MESH, CONTINENTAL
14U 6 DP4086 CABLE TIE 11-3/8”
14V 6 DP4296 CABLE TIE 33”
14W 1 DP4397 SWIVEL, 1-1/4” MP X 1-1/4” FP
BOM ID Qty Item No Description
14R 2 CP5043 KNIFE VAPOR TUBE 3/4’’ HOSE, WELD-ON
15P 6 CP2314 HOSE CLAMP, WORM GEAR, 1/2”- 1” TUBING, STAINLESS STEEL
