Row Clamp
6 “x 6” Hose Retainer,
(AP2283-1) Place at
each shank to secure
coiled length of 3/8”
EVA hose as shown.
6” Tube brace placement
NOTE:
No threads
in shear
area

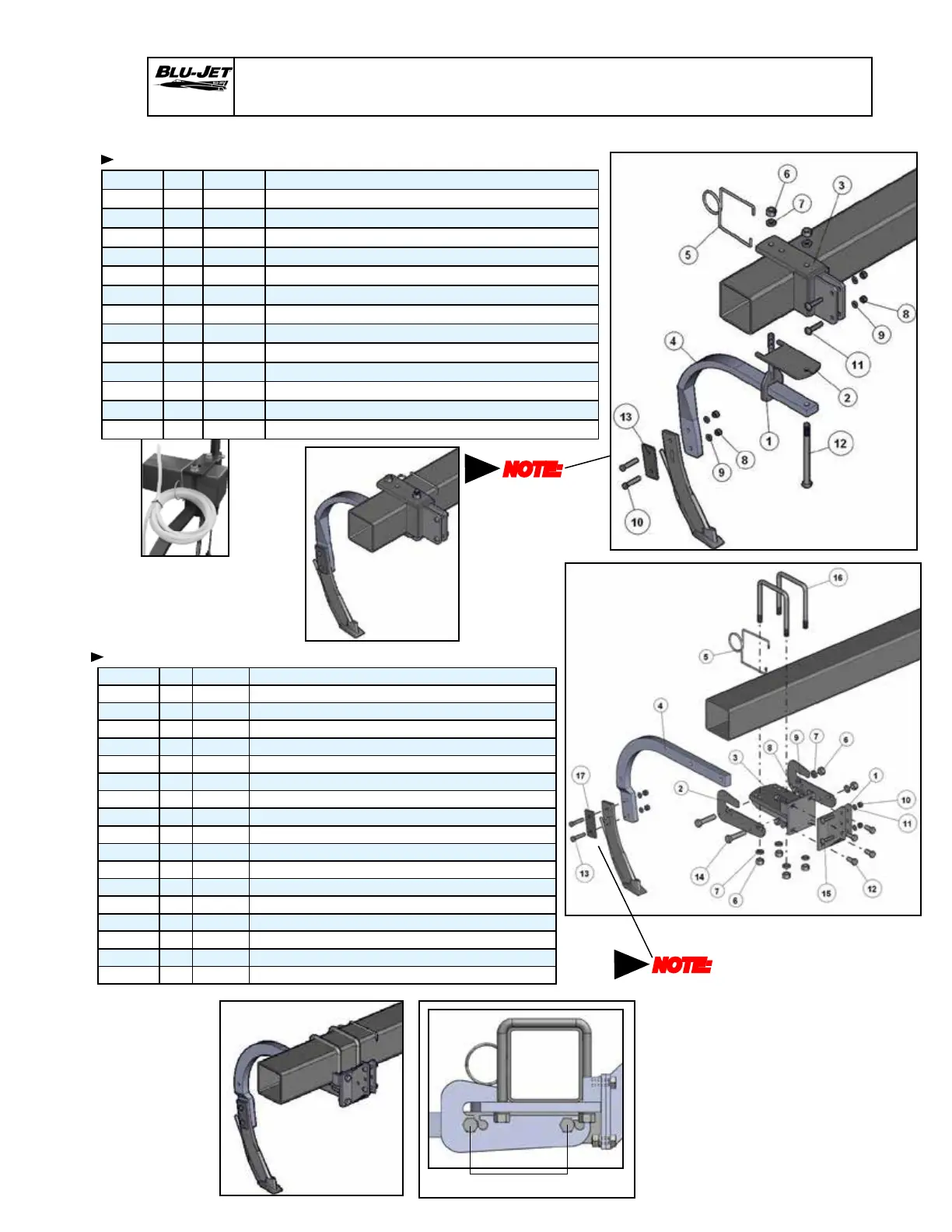

AAM2131 1” x 2” Rigid With Shank & Coulter Mount 6” x 6”
AAM2132 Edge Bent With Shank & Coulter Mount 6” x 6”
NOTE:
No threads
in shear
area
BOM ID Qty Item No Description
1 1 AM2148 CLAMP, SQUARE HOLE, 6” MOUNTING
2 1 AM2188 BACKING PLATE
3 1 AM2742 BRACKET, UNIVERSAL COULTER, 6” VERTICAL MOUNTING
4 1 AP2063 SHANK, 1” X 2” FLAT
5 1 AP2283 HOSE RETAINER, 6” X 6”
6 2 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
7 2 BP3035 WASHER, LOCK, 3/4”, PLATED
8 4 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
9 4 BP3043 WASHER, LOCK, 1/2”, PLATED
10 2 BP3128 HEX CAP SCREW, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
11 2 BP3229 BOLT, CARRIAGE, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
12 1 BP3578 HEX CAP SCREW, 3/4”-10 X 9-1/2”, GRADE 5, PLATED
13 1 CM2311 KNIFE WASHER
BOM ID Qty Item No Description
1 1 AM2699 BRACKET, SPRING BUNDLE FLATBACK
2 2 AM4891 BRACE, ANTI-ROTATION, EDGE BENT SHANK BRACKET
3 1 AM4893 BRACKET, EDGE BENT SHANK, RIGID MOUNT
4 1 AP2125 SHANK, 1-1/4” X 2” EDGE BENT
5 1 AP2283-1 HOSE RETAINER, 6” X 6”
6 6 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
7 6 BP3035 WASHER, LOCK, 3/4”, PLATED
8 4 BP3038 NUT, HEX, 5/8”-11, GRADE 2
9 4 BP3039 WASHER, LOCK, 5/8”, PLATED
10 4 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
11 4 BP3043 WASHER, LOCK, 1/2”, PLATED
12 4 BP3097 HEX CAP SCREW, 5/8”-11 X 1-1/2”, GRADED 5, PLATED
13 2 BP3128 HEX CAP SCREW, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
14 2 BP3142 HEX CAP SCREW, 3/4”-10 X 3-1/2”, GRADE 5, PLATED
15 2 BP3229 BOLT, CARRIAGE, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
16 2 BP3350 U-BOLT, 3/4”-10 X 6”W X 7-11/16”L, PLATED
17 1 CM2311 KNIFE WASHER
