BLU-JET LEGACY - Dual Impellicone Manifold Distribution Bundles

114
LEGACY
Dual Impellicone Manifold Distribution
(66000132) 20 Row 30”
NOTE: 3/8 EVA hose comes partially pre-cut to length. Length of
hose is determined by width of tool bar. Number of pre-cut sections
are determined by number of rows.
Extend
to Knives
From
Meter
20
17
16
15
15
16
19
Extend
to Gauge
18
20
16
15
13
18
2B
2C
2D
24
17
2A
18
15
16
2E
15
16
18
2
21
BOM ID Qty Item No Description
1 1 66000132 GDI200A W DUAL IMPELLICO MANIFOLD, AT5,6 20R30
2 2 AAM2635 IMPELLICONE 13 PORT, W/ MOUNT & HARDWARE, 6 X 6
2A 2 AM7639 BRACKET, IMPELLICONE MOUNT
2B 4 BP3001 NUT, HEX, 3/8”-16, GRADE 2, PLATED
2C 4 BP3002 WASHER, LOCK, 3/8”, PLATED
2D 2 BP3351 U-BOLT, 3/8”-16 X 6W X 7L, PLATED
2E 2 CP2564 IMPELLICONE, 13 PORT
3 1 AAM3514 SUPERSHOOTER III/ SQUIBB COUPLER/ BODYGUARD III
4 1 AM6277 SUPERSHOOTER RISER, AUTO-LOK HITCH
5 8 BP3001 NUT, HEX, 3/8”-16, GRADE 2, PLATED
6 8 BP3002 WASHER, LOCK, 3/8”, PLATED
7 8 BP3005 HEX CAP SCREW, 3/8”-16 X 1-1/2”, GRADE 5, PLATED
8 6 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
9 6 BP3043 WASHER, LOCK, 1/2”, PLATED
10 6 BP3050 WASHER, FLAT, 1/2”, PLATED
11 6 BP3126 HEX CAP SCREW, 1/2”-13 X 1-1/2”, GRADE 5, PLATED
12 1 CM2312 BRACKET, COUPLER, SINGLE, 1-1/4” NPT
13 2 CP2100 GAUGE, NH3, 0-100 PSI, 4” CASE
14 6 CP2304 PLUG, 1/4” PIPE, SQUARE HEAD
15 44 CP2305 3/8’’ WIRE CLAMP
16 25 CP2308 HOSE BARB
17 4 CP2314 HOSE CLAMP, WORM GEAR, 1/2” - 1” TUBING, SS
18 22 CCP2565 HOSE, EVA, 3/8” 25 FT LONG
19 1 CP2593 HOSE, NH3, 1-1/4” X 64”
20 2 DP4012 STREET ELBOW, 4MP-4FP, 90°
21 20 DP4086 CABLE TIE 11-3/8” STD
22 10 DP4296 CABLE TIE 33”
23 1 DP4397 SWIVEL, 1-1/4” MP X 1-1/4” FP
24 2 CP3001 HOSE END, EVA, 1” REINFORCED X 180 (15’) W/TIE & TAG
2E
14
16

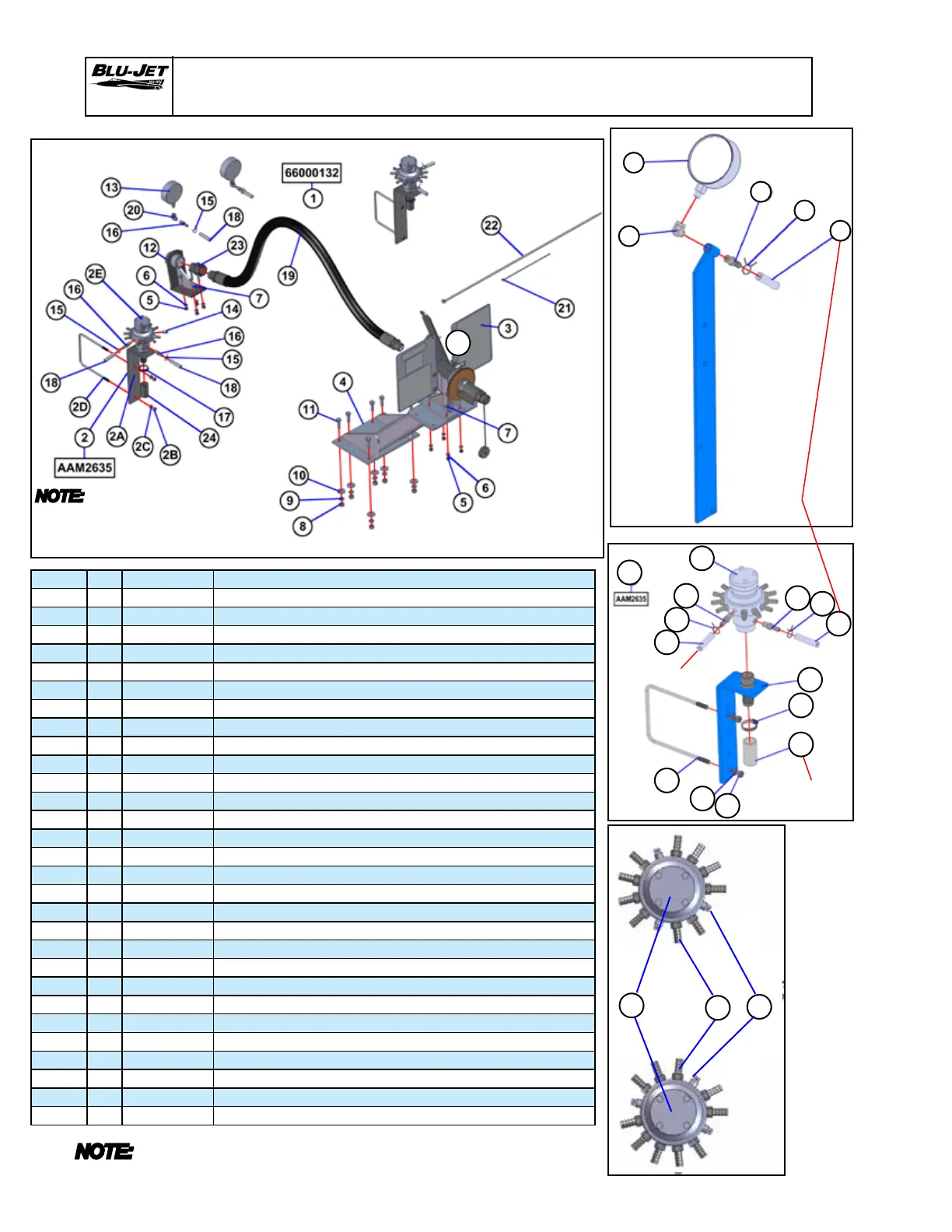

NOTE: GENERIC EXPLODED
VIEW. CONSULT BOTTOM MANIFOLD
DIAGRAM FOR HOSE BARB AND PLUG
PLACEMENT.
