BLU-JET LEGACY - Bolt-On Cylinder Lug

163
Task Procedures Illustrations
LEGACY
Mounting
cylinder lug

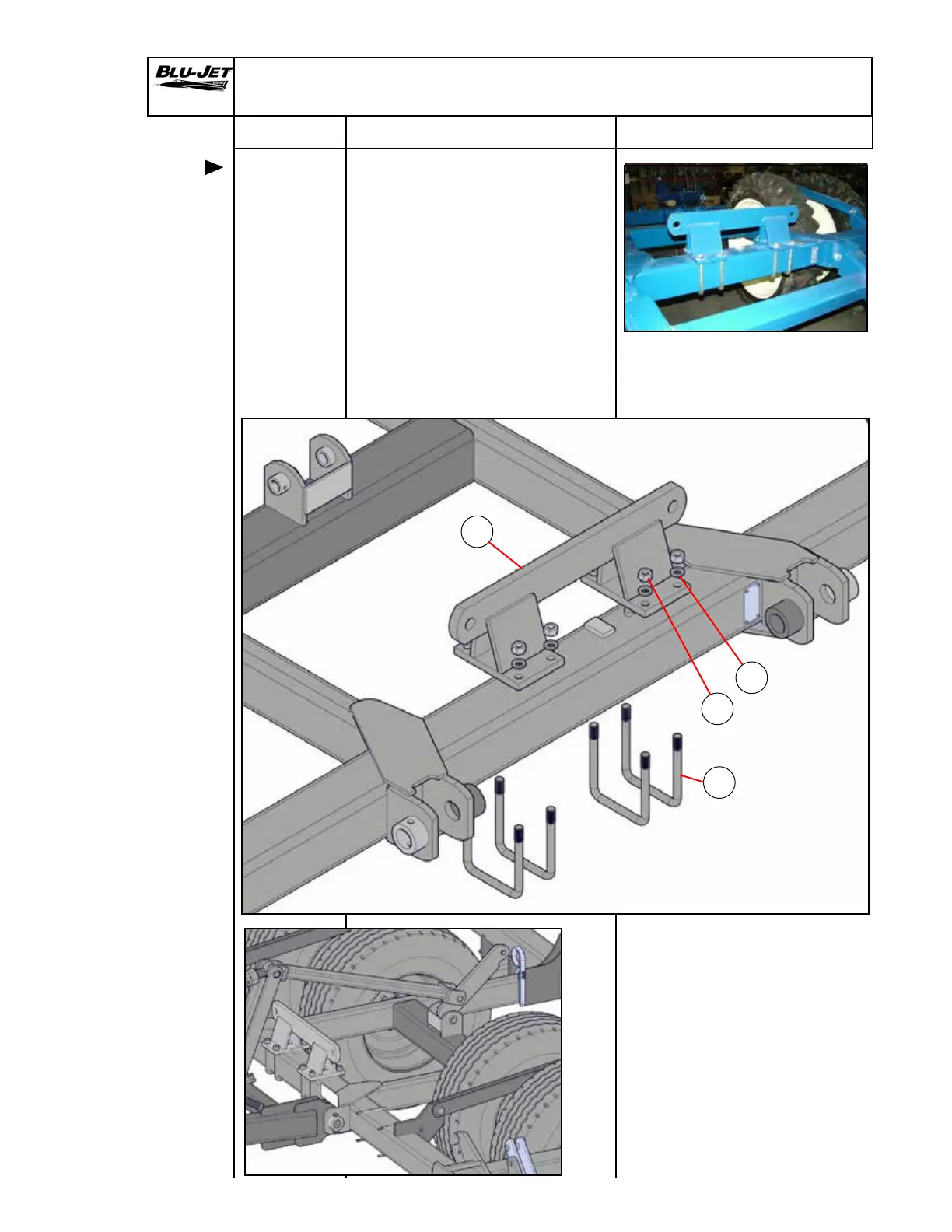

Bolt-On Cylinder Lug
1. Mount (a) (AM4563) bolt-on
5” cylinder lug between
stops with (b) (BP3350)
3/4” x 6” x 7-7/16” u-bolts,
(c) (BP3035) 3/4” lock
washers and (d) (BP3034)
3/4” hex nuts.
a
c
b
d
