Task Procedures Illustrations
LEGACY
Depth Collar Mounting
Mounting
depth
collar
brackets
b
g
f

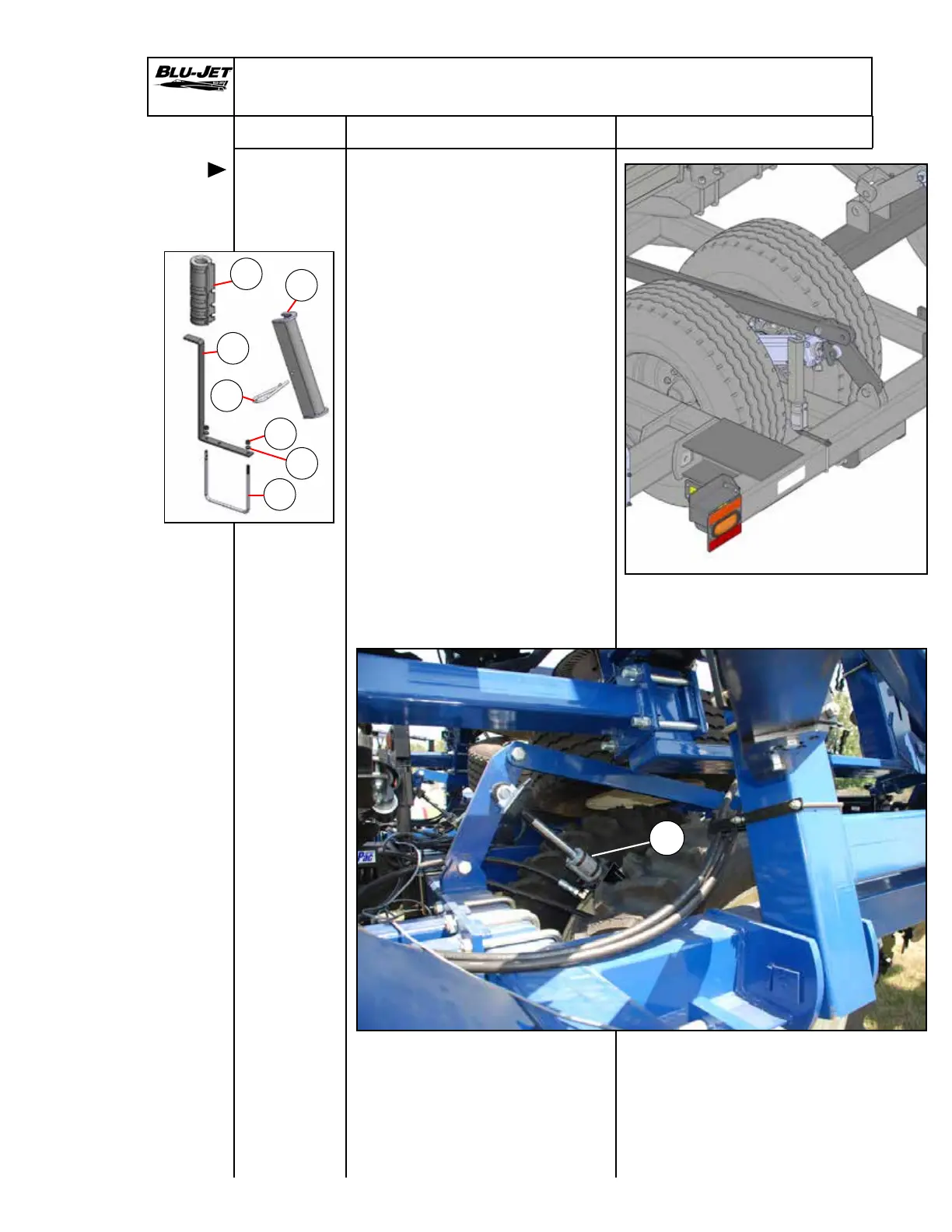

1. Attach (a) (AM2090) depth
collar & storage lockup
bracket to rear main frame
center section near the wheel
lift linkage. Secure with (b)
(BP3351) 3/8” x 6” x 7” u-bolt,
(d) (BP3002) 3/8” lock washers
and (c) (BP3001) 3/8” hex
nuts.
Place (e) (BP3076) 1-1/4” to
1-1/2” winged depth collar sets,
(f) (AM6200) transport cylinder
lock, 1-3/8” rod with (g) (BM3520)
5/16” clip pins, on storage
brackets.
2. Install (1) (BP3076-4) 1-1/2” x
4-1/4” depth collar on lift
cylinder as a starter depth.
e
d
e
c
a
