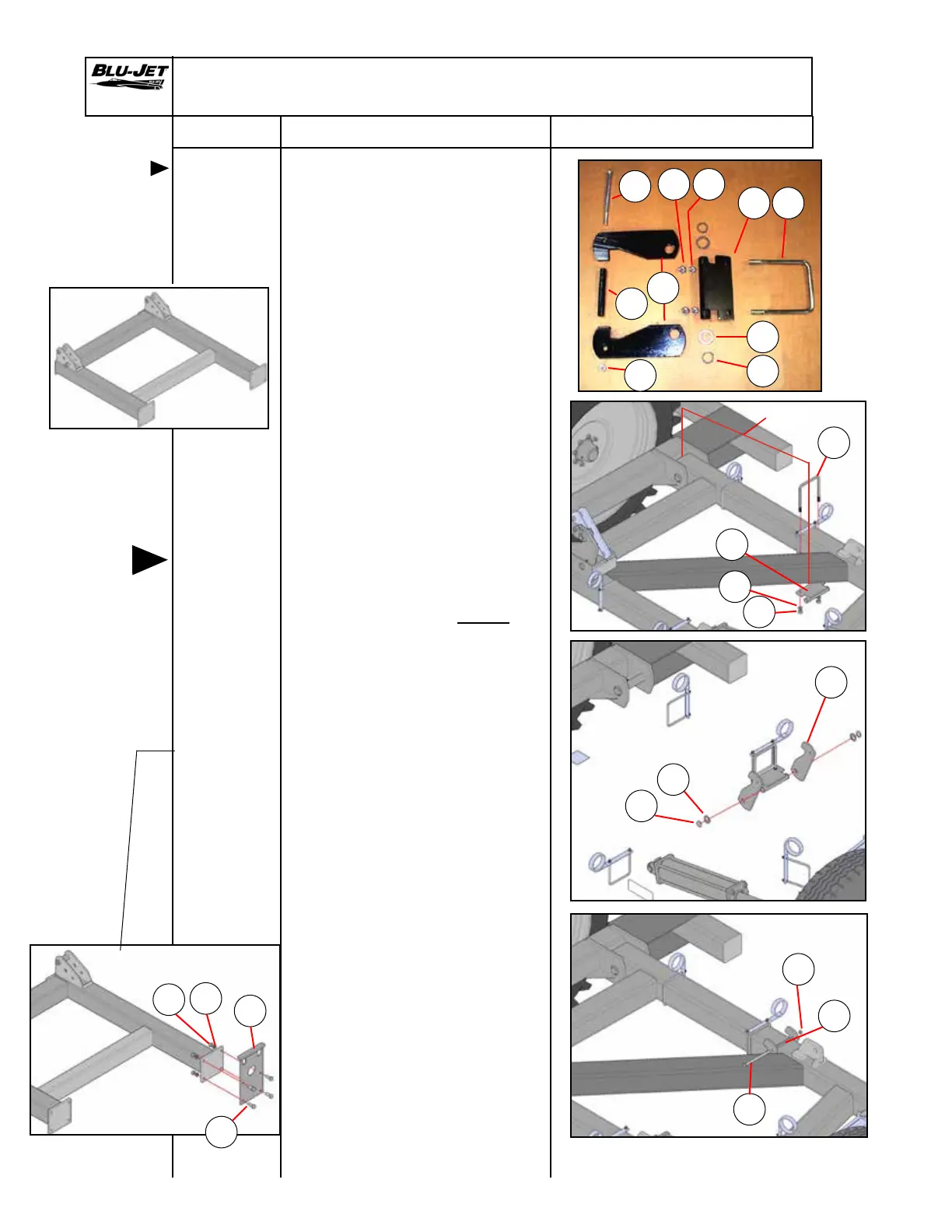

BLU-JET LEGACY - Secondary Wing Latch Standard Wing

Task Procedures Illustrations
174
LEGACY
1. a. AM4566 2 Wing latch
pivot, secondary
wing
b. AM4567 2 Pipe spacer
c. AM4568 4 Secondary wing
lock plate
d. AP2711 4 Snap ring, 1-1/4”
external, heavy
duty
e. BP3038 2 Nut, hex, 5/8”-11,
grade 2, plated
f. BP3039 2 Lock washer
5/8”, plated
g. BP3354 2 U-bolt 5/8”-11
x 6” x 7-3/4”,
plated
h. BP3179 2 Hex cap screw,
1/2”-13 x 8”,
grade 5, plated
i. BP3244 2 Nut, hex lock,
1/2”-13
j. BP3249 4 Machinery
bushing, 1-7/8”
OD x 1-1/4” ID,
14 Ga.
2. Place (a) (AM4566) wing latch
pivot on bottom of rear
primary wing tube 46-1/2”
from hinge to back of latch
Install (g) (BP3354) 5/8” x 6”
x 7-3/4” u-bolt into pivot
bracket. Place (f) (BP3039)
5/8” lock washers and (e)
(BP3038) 5/8” hex nuts on
u-bolt. Tighten hex nut enough
so the pivot bracket will still
slide on tube.
3. Install (c) (AM4568) secondary
wing lock plates on both sides
of pivot bracket. Secure with
(j) (BP3249) 1-7/8” OD x 1-1/4” ID
machinery bushing and (d)
(AP2711) 1-1/4” snap ring heavy
duty.
4. Raise both wing lock plates
and install (h) (BP3179) 1/2”
x 8” hex cap screw through
plate (b) (AM4567) pipe spacer
and second plate. Secure with
(i) (BP3244) 1/2” hex lock nut.
5. Check placement before
tightening 5/8” hex nuts on
u-bolt.
Check wing lock plates. Lock
plates must move freely.
6. Attach (k) (AM4565) wing rest
with (l) (BP3139) 3/4” 2” hex cap
screws, (m) (BP3035) 3/4” lock
washers and (n) (BP3034) 3/4”
hex nuts.
Installation
of secondary
wing latch
Standard
secondary
wing
Secondary Wing Latch Standard Wing
Consult
row
spacing
page for
placement
of latch
46-1/2”
a
g
e
c
j
d
h
b
i
Wing stop
for
AM4551
LH
secondary
wing
and
AM4552
RH
secondary
wing
k
n
l
m
a
e
g
c
j
d
h
b
i
f
f
