BLU-JET LEGACY - Lift Tire into Position from the Top

Task Procedures Illustrations
154
LEGACY
Primary Wing Gauge Wheel Assembly
Mounting
primary
gauge
wheels
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear

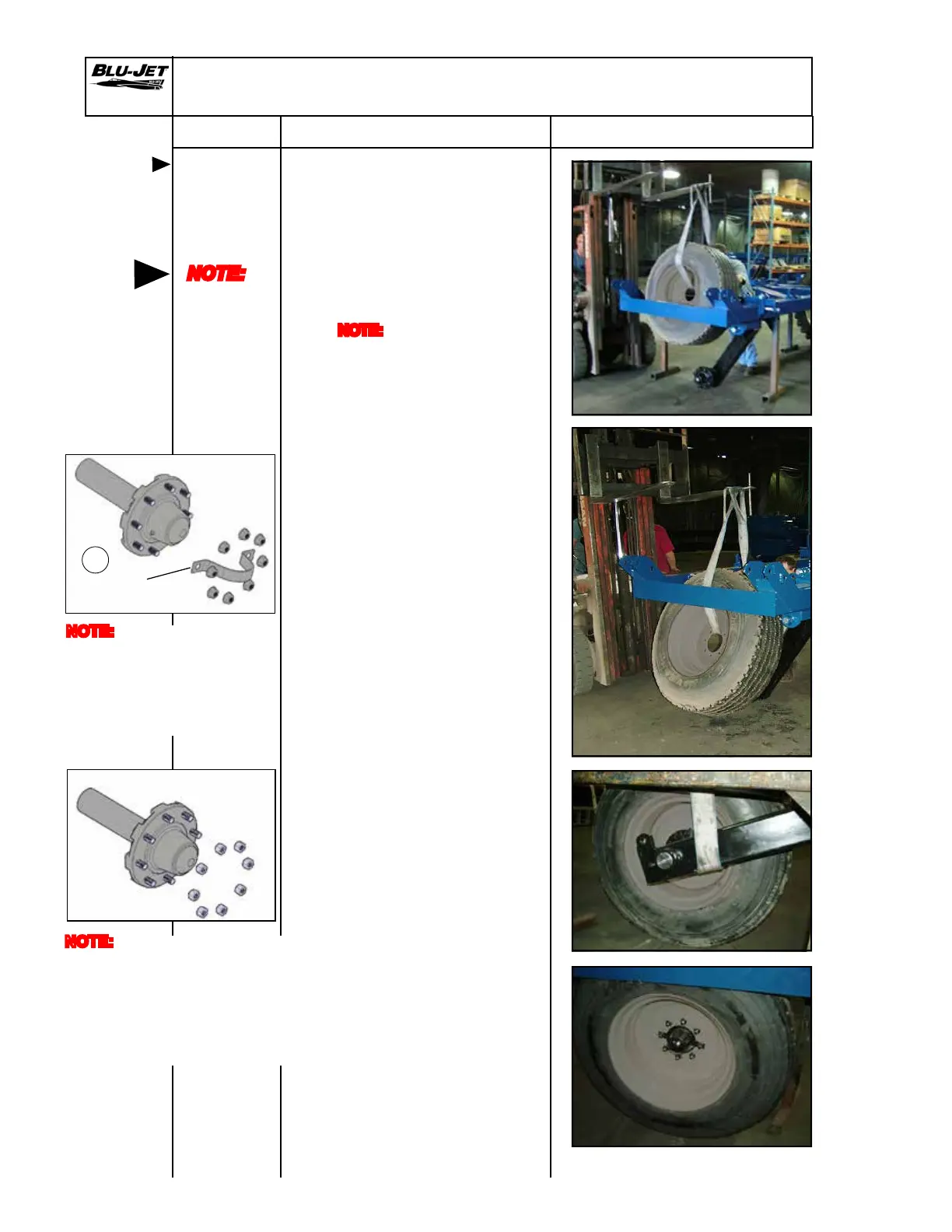

11. Lift tire into position from the
top.
(L1) AAM2923, wheel, 295/75
R22.5, 22.5 x 8.25 x 8 Gray
recap
or
(Pictured)
(L2) AAM2924 wheel, 385/65 R22.5
x 11.75 x 8 Gray recap
NOTE: Valve stem on hub side.
12. Angle tire past hub and
align with hub.
13. Raise wheel leg assembly and
mount rim on hub
14. Attach (m) (AM4597) hub strap
for AAM2800-1 hub before
replacing and tighten lug nuts.
Tighten bolts evenly and
torque to 140 to 170 lbs. Check
Tire pressure.
Inate to 95 P.S.I
NOTE:
AAM2800 (With tapered wheel
nuts) and 295/75R22.5 gauge
wheel tires.
Do not use AM4597 with
tapered wheel nuts.
AAM2800
NOTE:
AAM 2800-1 (With ange
lock nuts) and AM 4597 hub
cap strap are used only with
385/65R22.5 gauge wheel
tires.
AAM2800-1
AM4597
m
